Top 20 Brushless Motor Manufacturers in the World 2025: A Comprehensive Market Guide
Quick Answer
The global brushless DC (BLDC) motor market is projected to grow from USD 14.02 billion in 2025 to USD 20.68 billion by 2030, at a CAGR of 8.1%, driven by electric vehicle adoption, industrial automation, and energy-efficiency regulations. The top 20 brushless motor manufacturers in the world include Nidec Corporation, Siemens, ABB, Maxon Motor, Faulhaber, AMETEK, Allied Motion (Allient), Johnson Electric, Kollmorgen, and Portescap, alongside emerging leaders from China such as Greensky Power. When selecting a BLDC motor supplier, engineers should evaluate efficiency ratings per IEC 60034-30-1 (IE2–IE5 classes), torque constants, thermal limits per IEC 60034-1, and compliance with NEMA MG 1 and DOE 10 CFR Part 431 efficiency standards. The Asia-Pacific region dominates production with over 50% of global output, while European and American manufacturers lead in high-precision and aerospace-grade BLDC technologies.
What Is a Brushless DC Motor?
A brushless DC (BLDC) motor is a synchronous electric motor that uses direct current (DC) power and electronic commutation—instead of mechanical brushes and a commutator—to achieve rotation. The stator contains wound coils (typically three-phase), while the rotor carries permanent magnets (usually neodymium-iron-boron or samarium-cobalt). An electronic controller sequentially energizes the stator windings based on rotor position feedback from Hall-effect sensors or encoders, creating a rotating magnetic field that drives the permanent-magnet rotor.
According to IEC 60034-1 (Rotating Electrical Machines – Rating and Performance), BLDC motors are classified as permanent-magnet synchronous machines. Unlike brushed DC motors, the absence of physical brush-commutator contact eliminates friction wear, reduces EMI, and extends service life to 10,000–30,000+ hours compared to 1,000–3,000 hours for brushed equivalents. The U.S. Department of Energy (DOE) recognizes BLDC motors as a key technology for meeting the IE3 and IE4 efficiency mandates under 10 CFR Part 431, which govern general-purpose electric motors rated 1–500 HP.
Key BLDC Motor Configurations
| Configuration | Rotor Position | Key Advantage | Typical Application |
|---|---|---|---|
| Inner Rotor (Outrunner) | Rotor inside stator | High speed (up to 100,000 rpm), low inertia, fast response | Drones, medical handpieces, CNC spindles |
| Outer Rotor (Inrunner) | Rotor outside stator | Higher torque density, smoother rotation at low speed | E-bikes, fans, pumps, robotics joints |
| Slotless | Ironless stator core | Zero cogging torque, ultra-smooth motion | Precision optics, semiconductor handling |
| Linear BLDC | Flat “unrolled” design | Direct linear motion without conversion | Pick-and-place, laser cutting, medical imaging |
How Brushless DC Motors Work: Step-by-Step
Step 1 — DC Power Input
A DC power supply (battery, rectified AC, or DC bus) provides voltage to the motor controller. The controller typically operates at 12V, 24V, 48V, or 72V for commercial BLDC motors, with industrial variants reaching 300–600V DC bus levels. The input current is filtered and conditioned to minimize ripple per IEEE 519-2022 harmonic limits.
Step 2 — Rotor Position Sensing
Hall-effect sensors (typically three, spaced 120° electrical apart) detect the rotor’s magnetic pole position. In sensorless designs, the controller infers position from back-EMF zero-crossing detection in the unenergized winding. High-precision applications use optical or magnetic encoders with 17–26 bit resolution, as seen in Yaskawa Sigma-X servo motors (26-bit batteryless absolute encoder).
Step 3 — Electronic Commutation
Based on rotor position feedback, the controller’s power stage—usually a 3-phase MOSFET or IGBT inverter bridge—sequentially energizes two of the three stator phases. This creates a rotating magnetic field (B-field) that stays approximately 90° ahead of the rotor’s permanent-magnet field, maximizing torque production. The commutation sequence repeats every 60 electrical degrees for a 6-step trapezoidal drive, or continuously for sinusoidal (FOC) commutation.
Step 4 — Electromagnetic Torque Generation
The interaction between the stator’s rotating B-field and the rotor’s permanent magnets produces electromagnetic torque. The torque magnitude follows the fundamental equation:
T = KT × I
Where T = torque (N·m), KT = torque constant (N·m/A), and I = phase current (A). For example, the Faulhaber 2264W048BP4 BLDC motor has KT = 23.6 mNm/A, producing 57.9 mNm rated torque at 2.45 A rated current with up to 90% efficiency.
Step 5 — Mechanical Output and Speed Regulation
The rotor converts electromagnetic torque into rotational mechanical power. Speed is regulated by adjusting the average voltage applied via pulse-width modulation (PWM), typically at 8–20 kHz switching frequency. The back-EMF constant (KE) relates speed to voltage: n = (V − I×R) / KE. Closed-loop control maintains speed within ±0.1% in servo-grade BLDC systems, compared to ±2–5% in open-loop brushed motors.
BLDC Motor Type Comparison Table
Different BLDC motor architectures serve distinct application requirements. The following table compares four primary types across eight engineering parameters:
| Parameter | Inner Rotor BLDC | Outer Rotor BLDC | Slotless BLDC | BLDC with Integrated Gearbox |
|---|---|---|---|---|
| Speed Range | 3,000–100,000 rpm | 500–15,000 rpm | 1,000–80,000 rpm | 1–500 rpm (output) |
| Torque Density | Medium | High | Low–Medium | Very High (geared) |
| Efficiency (ηmax) | 85–92% | 82–89% | 75–90% | 70–85% (system) |
| Cogging Torque | Moderate | Moderate | Zero | N/A (smoothed by gears) |
| Response Time | Fast (low inertia) | Slower (high inertia) | Fastest | Medium |
| Noise Level | Low–Medium | Low | Ultra-low | Medium (gear noise) |
| Cost | $$ | $$ | $$$ | $$$ |
| Best Application | Drones, medical, CNC | E-bikes, fans, pumps | Optics, semiconductors | Industrial automation, AGVs |
Engineering Data: Efficiency, Thermal Limits, and Torque Formulas
IEC 60034-30-1 Efficiency Classes for BLDC Motors
The IEC 60034-30-1 standard defines efficiency classes for single-speed, three-phase, cage-induction motors, increasingly applied to BLDC and permanent-magnet synchronous motors in industrial settings:
| IEC Class | Designation | Efficiency Range (4-pole, 5.5 kW) | NEMA Equivalent | Status |
|---|---|---|---|---|
| IE1 | Standard Efficiency | ~86% | Standard Efficiency | Phase-out in EU/China |
| IE2 | High Efficiency | ~89% | Energy Efficient | Minimum in many regions |
| IE3 | Premium Efficiency | ~91% | NEMA Premium | Mandatory in EU (≥7.5 kW) & US (1–500 HP) |
| IE4 | Super Premium Efficiency | ~93% | — | Mandatory in EU from 2025 (75–200 kW) |
| IE5 | Ultra Premium Efficiency | ~95% | — | EU target 2026+; reduces losses ~20% vs IE4 |
Thermal Limits per IEC 60034-1
Insulation class defines the maximum allowable winding temperature for continuous operation. Exceeding these limits reduces insulation life by 50% for every 10°C rise (Arrhenius rule):
| Insulation Class | Max Winding Temp (°C) | Ambient Temp (°C) | Temp Rise Allowance (K) | Typical BLDC Application |
|---|---|---|---|---|
| Class A (105) | 105 | 40 | 60 | Low-cost consumer electronics |
| Class B (130) | 130 | 40 | 80 | General-purpose BLDC (Yaskawa Sigma-7) |
| Class F (155) | 155 | 40 | 105 | Industrial & automotive BLDC |
| Class H (180) | 180 | 40 | 125 | High-temp / aerospace (maxon EC-max) |
| Class N (200) | 200 | 40 | 150 | Specialty high-temp applications |
Example: The maxon EC-max30 BLDC motor has a maximum winding temperature of 155°C (Class F), operating from −40°C to +100°C ambient, with a maximum efficiency of 75%. The Faulhaber 4490H048BS operates up to 125°C winding temperature with 88% peak efficiency.
Core Torque and Power Formulas for BLDC Motor Selection
| Parameter | Formula | Units | Notes |
|---|---|---|---|
| Torque (from current) | T = KT × I | N·m = (N·m/A) × A | KT from manufacturer datasheet |
| Speed (from voltage) | n = (V − I×R) / KE | rpm = (V − Vdrop) / (V/krpm) | KE = back-EMF constant |
| Mechanical Power | P = T × ω = T × (2πn/60) | W = N·m × rad/s | ω = angular velocity |
| Electrical Input Power | Pin = V × I × η−1 | W | η = motor efficiency (0.7–0.92) |
| System Efficiency | ηsys = ηmotor × ηcontroller × ηgearbox | % | Typical: 0.90 × 0.95 × 0.85 = 72.7% |
| SKF Bearing L10h Life | L10h = (C/P)p × (1,000,000 / 60n) × aSKF | hours | p=3 for ball bearings; C=dynamic load, P=equivalent load |
NEMA MG 1 Service Factor for BLDC Motors
Per NEMA MG 1-2024, the service factor (SF) indicates the permissible overload above nameplate rating. For BLDC motors used in continuous-duty industrial applications:
- SF 1.0: Standard continuous duty (most BLDC motors)
- SF 1.15: General-purpose industrial motors (allows 15% overload at reduced temperature rise)
- SF 1.25–1.35: Special applications with intermittent overload requirements
Operating above the service factor voids warranties and accelerates insulation degradation per IEC 60034-1 thermal aging rules.
Top 20 Brushless Motor Manufacturers in the World 2025
The following ranking is based on market presence, technological innovation, product portfolio breadth, certification compliance (ISO 9001, IATF 16949, UL, CE), and global distribution capabilities. Market data is sourced from MarketsandMarkets BLDC motor market research (2025).
1. Nidec Corporation — Japan
Founded: 1973 | Headquarters: Kyoto, Japan | Employees: ~120,000
Nidec is the world’s largest comprehensive motor manufacturer, producing everything from miniature spindle motors for hard disk drives to industrial-grade BLDC motors for automotive and automation. The company holds the largest global market share in BLDC motors for consumer electronics and has expanded aggressively into EV traction motors through acquisitions. Nidec’s BLDC products achieve IE4 efficiency class in industrial ratings and the company operates manufacturing facilities across Japan, China, Vietnam, India, and Mexico. In June 2025, Nidec inaugurated a new manufacturing campus in Hubli, Karnataka, India, further expanding BLDC production capacity. Nidec’s product portfolio spans brushless DC fans, blowers, pumps, and spindle motors, all of which are widely used in BLDC motor applications across multiple industries.

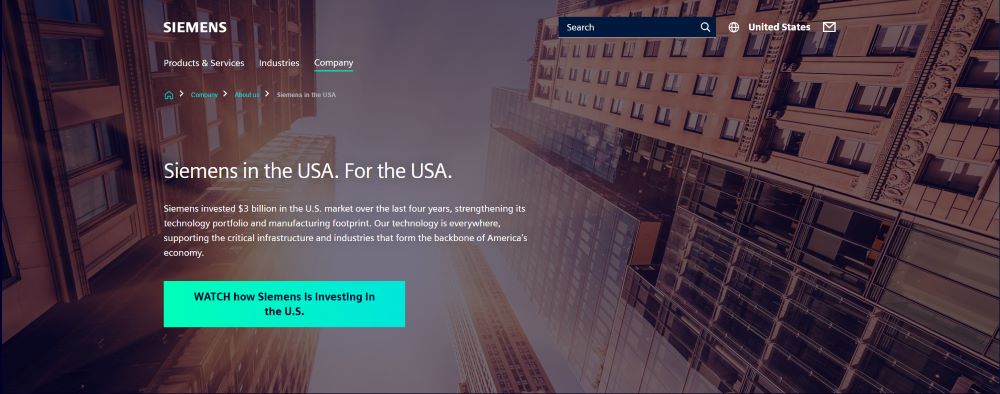

2. Siemens AG — Germany
Founded: 1847 | Headquarters: Munich, Germany | Employees: ~311,000
Siemens is a global technology leader in electrification, automation, and digitalization. The company’s SIMOTICS series includes high-efficiency BLDC and permanent-magnet synchronous motors compliant with IEC 60034-30-1 IE4/IE5 efficiency classes. Siemens motors integrate seamlessly with the company’s SINAMICS drive family, enabling predictive maintenance through MindSphere IoT connectivity. The SIMOTICS portfolio covers power ratings from 0.12 kW to over 1 MW, serving industrial automation, building technology, and transportation sectors. Siemens’ BLDC motors meet NEMA MG 1 and IEC 60034 standards and are certified per UL, CE, and CSA. For applications requiring high-efficiency motors, Siemens’ IE5-class permanent-magnet motors reduce energy losses by up to 20% compared to IE3 equivalents.
3. ABB Group — Switzerland
Founded: 1988 (merger of ASEA & BBC) | Headquarters: Zurich, Switzerland | Employees: ~105,000
ABB is a pioneer in robotics and industrial automation, offering BLDC motors through its Motion division. ABB’s permanent-magnet and BLDC motor portfolio serves industrial automation, robotics (IRB series robot joints), and power generation. The company’s motors are designed for IE4/IE5 efficiency and integrate with ABB drives for variable-speed control. ABB’s smart motor technology enables IoT-connected monitoring for predictive maintenance, reducing unplanned downtime by up to 50%. The company’s motor portfolio includes IE5 synchronous reluctance motors (SynRM) that combine BLDC-like efficiency with induction-motor robustness.
4. Maxon Motor AG — Switzerland
Founded: 1961 | Headquarters: Sachseln, Switzerland | Employees: ~3,000+
Maxon is the gold standard for precision BLDC motors in aerospace, medical, and robotics. The company’s EC series brushless motors feature ironless windings (System maxon), delivering zero cogging torque, efficiencies up to 89% (EC-4pole 22), and speeds up to 100,000 rpm. Maxon’s BLDC product line includes the EC-i (industrial), EC-max (cost-optimized), and EC Flat (compact) series. Maxon motors have powered NASA Mars rovers and are specified in FDA-approved surgical robots. The EC-max30 delivers 40 W continuous power at 75% efficiency with a maximum winding temperature of 155°C (Class F). Maxon’s precision motor expertise makes it the preferred supplier for applications demanding ±0.1° positioning accuracy.
5. Faulhaber Group — Germany
Founded: 1947 | Headquarters: Schönaich, Germany | Employees: ~2,000+
Faulhaber specializes in miniature and micro BLDC motors using its proprietary ironless FAULHABER winding technology. The company’s motors achieve efficiencies up to 91% (2264W048BP4) in packages as small as 6 mm diameter. Faulhaber’s product range spans 12–44 mm diameter BLDC motors with rated torques from 0.96 mNm to 183 mNm and stall torques up to 1,724 mNm. The 2264BP4 series delivers 150 W continuous output in a 22 mm package, representing industry-leading power density. Faulhaber motors are specified in semiconductor manufacturing equipment, miniature pumps, and aerospace actuators. Their coreless winding technology eliminates iron losses, making them ideal for battery-powered 12V DC motor applications.

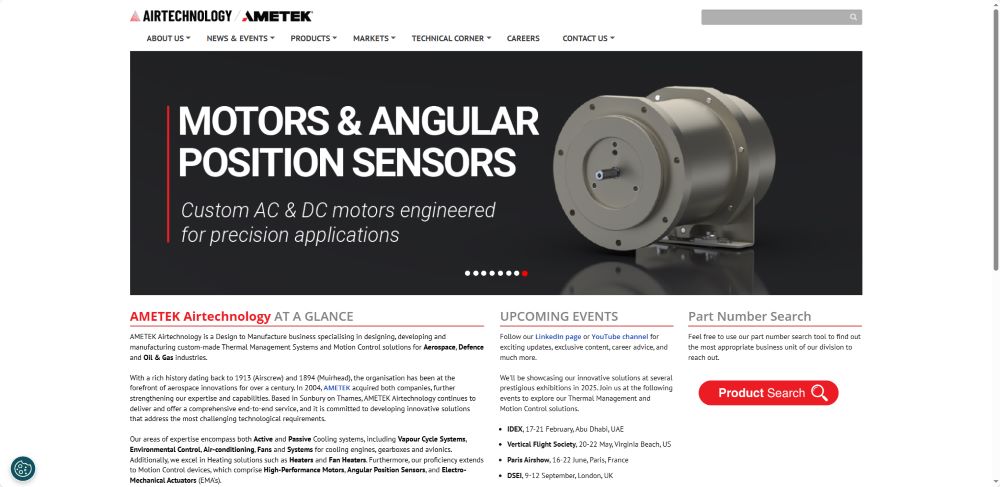

6. AMETEK, Inc. — USA
Founded: 1930 | Headquarters: Berwyn, Pennsylvania, USA | Employees: ~20,000
AMETEK is a leading manufacturer of electronic instruments and electromechanical devices, offering BLDC motors through its Electromechanical Group (EMG). The Precision Motion Control division includes Dunkermotoren, Bison, Haydon Kerk, and Pittman Motors—each serving distinct BLDC market segments. Dunkermotoren (acquired 2022) is a German specialist in industrial BLDC motors with integrated gearboxes, encoders, and controllers. AMETEK’s BLDC motors achieve efficiencies of 85–90% and operate across wide temperature ranges (−55°C to +125°C). The company serves defense, aerospace (UAV propulsion, satellite actuators), and industrial automation markets. AMETEK operates in 31 countries with manufacturing facilities in the US, UK, China, Germany, France, and Italy. For industrial fan motor applications requiring high reliability, AMETEK’s Pittman BLDC series offers IP65 protection and ball-bearing construction.

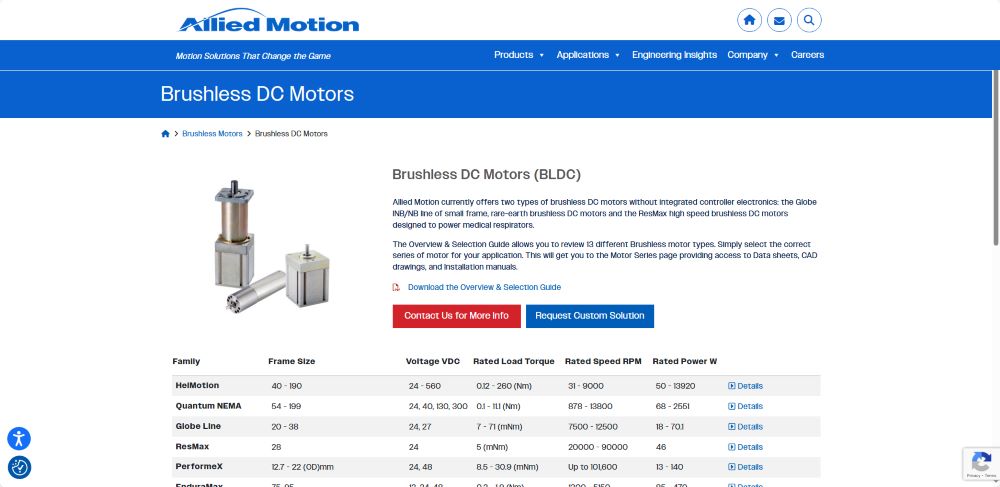

7. Allied Motion Technologies (Allient, Inc.) — USA
Founded: 1962 | Headquarters: Amherst, New York, USA | Employees: ~1,950
Rebranded as Allient, Inc. in 2023, Allied Motion designs and manufactures precision BLDC motors, servo motors, torque motors, and integrated motor drives. The company’s BLDC product line features high torque density designs optimized for medical equipment, robotics, aerospace, and defense applications. Allient’s motors include integrated electronics (motor + drive + controller in one housing), reducing wiring complexity and improving EMI performance. The company operates 18 manufacturing facilities across the US, Europe, and Asia. Allient’s BLDC motors meet MIL-STD-810 environmental standards for defense applications and are used in automotive electric power steering (EPS) systems, motorized curtain systems, and smart car power tailgates.
8. Johnson Electric Holdings Limited — China (Hong Kong)
Founded: 1959 | Headquarters: Shenzhen, China | Employees: ~35,000
Johnson Electric is a global leader in motion products, including BLDC motors for automotive, industrial, and medical applications. The company’s annual revenue exceeds USD 3.45 billion, with operations in 22 countries. Johnson Electric’s BLDC motors are specified in automotive window lifts, seat adjusters, HVAC blowers, and industrial conveyor systems. The company follows ISO/TS 16949 (now IATF 16949) quality management and offers extensive customization capabilities including application-specific winding configurations, gear integration, and electronic control modules. Johnson Electric’s vertical integration—from magnet manufacturing to final assembly—enables cost-effective high-volume production for home appliance and automotive markets.
9. Kollmorgen — USA
Founded: 1916 | Headquarters: Radford, Virginia, USA | Employees: ~2,500
Kollmorgen is a premier manufacturer of precision motion control solutions, including BLDC (brushless DC) motors, servo motors, stepper motors, and linear actuators. The company’s AKM and KBM series BLDC motors deliver high continuous torque with low ripple, serving semiconductor manufacturing, packaging machinery, and robotics. Kollmorgen’s motors feature premium-grade neodymium magnets and are available with integrated encoders up to 22-bit resolution. The company’s Goldline series offers the highest torque density in its class, with frame sizes from 60 mm to 190 mm. Kollmorgen’s expertise in precision motion control makes it a preferred supplier for applications requiring sub-arc-minute positioning accuracy.

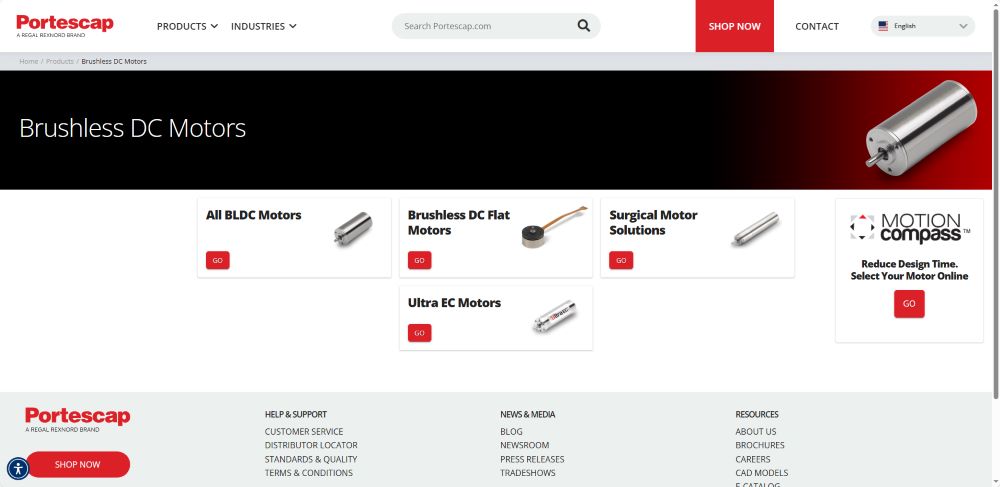

10. Portescap — USA/Switzerland
Founded: 1931 | Headquarters: West Chester, Pennsylvania, USA | Parent: Regal Rexnord
Portescap specializes in miniature BLDC motors as small as 8 mm diameter, using ironless winding technology for zero cogging torque and smooth operation. The company’s motors serve medical surgical tools, portable diagnostic devices, dental handpieces, and aerospace actuators. Portescap’s Ultra EC series delivers up to 70 W in 22 mm packages, with maximum speeds exceeding 100,000 rpm. The company’s sterilizable BLDC motors withstand autoclave cycles up to 134°C, meeting ISO 13485 medical device manufacturing standards. Portescap’s micro motor expertise positions it as the leading supplier for minimally invasive surgical robotics.

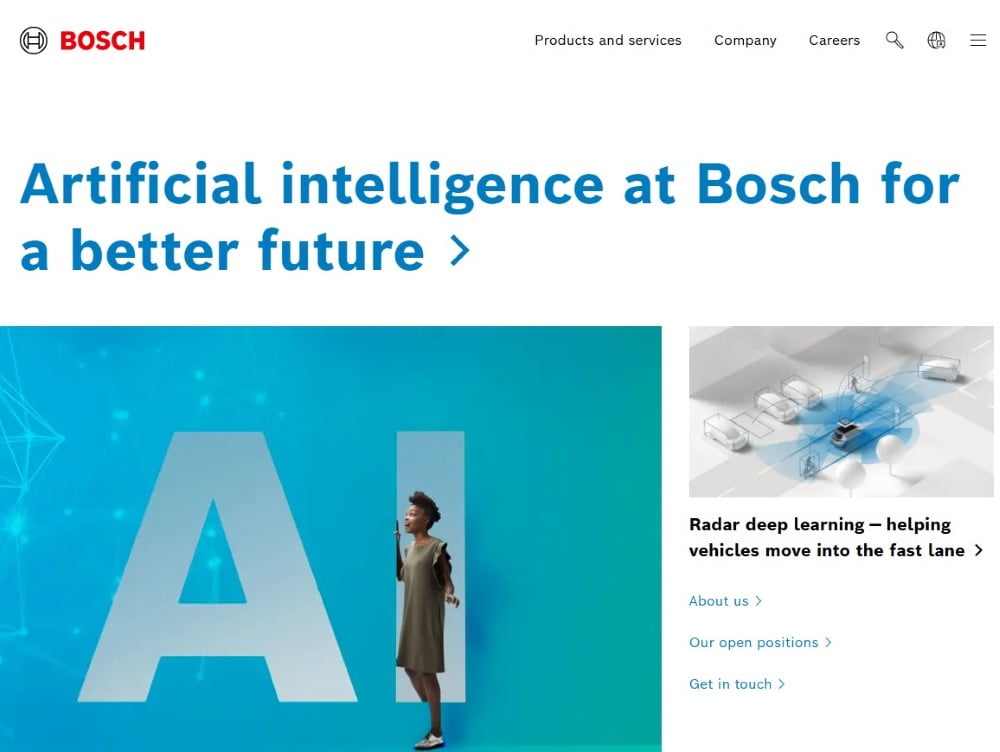

11. Bosch (Robert Bosch GmbH) — Germany
Founded: 1886 | Headquarters: Gerlingen, Germany | Employees: ~460,000
Bosch is a global automotive and industrial technology leader, producing BLDC motors for electric power steering (EPS), e-bike drives, power tools, and automotive thermal management. Bosch’s BLDC motors meet ISO 26262 functional safety and IATF 16949 automotive quality standards. The company’s eBike Systems division is the world’s largest supplier of BLDC drive systems for electric bicycles, with motors delivering up to 340% pedal assistance. Bosch’s power tool division uses high-performance BLDC motors with brushless EC technology achieving 3× longer runtime compared to brushed equivalents. The company’s trolling motor and e-mobility BLDC products serve both consumer and commercial markets.

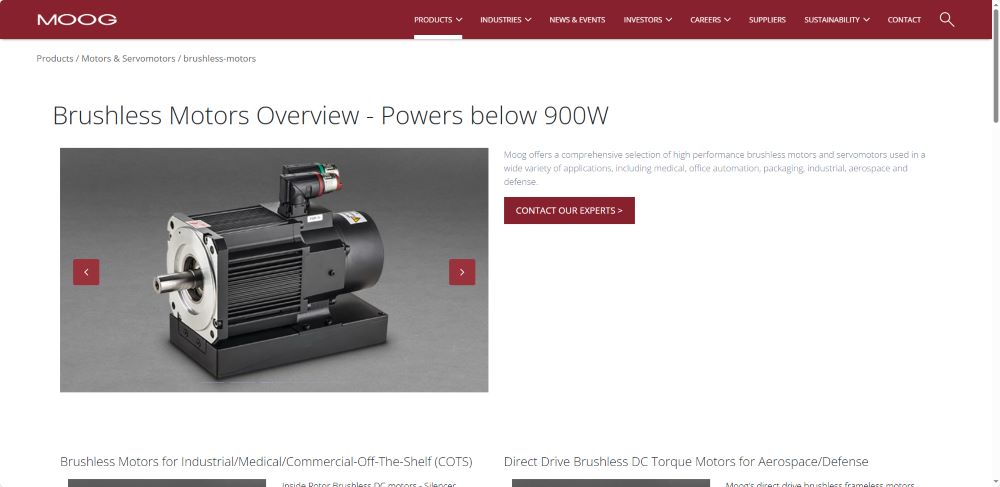

12. Moog Inc. — USA
Founded: 1951 | Headquarters: East Aurora, New York, USA | Employees: ~13,000
Moog is a premier designer and manufacturer of high-performance BLDC motors and servo systems for aerospace, defense, and industrial applications. The company’s BLDC motors are specified in flight control surfaces, satellite pointing systems, and industrial robotics where MIL-SPEC reliability is mandatory. Moog’s brushless motors feature advanced control algorithms for high-bandwidth torque response, with frameless designs that integrate directly into customer housings for weight-critical aerospace applications. The company’s products comply with DO-160G environmental conditions and AS9100D aerospace quality management.
13. TECO Electric & Machinery Co. — China (Taiwan)
Founded: 1956 | Headquarters: Taipei, Taiwan | Employees: ~8,000
TECO is a major industrial motor manufacturer producing BLDC and permanent-magnet motors achieving IE4/IE5 efficiency classes. The company’s motors feature built-in variable-frequency drives for pump and HVAC applications. TECO’s BLDC products serve HVAC systems, water treatment plants, and industrial fan applications, with power ratings from 0.75 kW to 500 kW. The company holds UL, CE, and CNS certifications and operates manufacturing facilities in Taiwan, China, and Vietnam.
14. WEG Equipamentos Elétricos — Brazil
Founded: 1961 | Headquarters: Jaraguá do Sul, Brazil | Employees: ~35,000
WEG is the largest electric motor manufacturer in Latin America, offering BLDC and permanent-magnet motors for industrial, agricultural, and mining applications. The company’s W22 Magnet line achieves IE4/IE5 efficiency with permanent-magnet technology. WEG motors are certified per UL, CSA, CE, and INMETRO and serve harsh-environment applications in mining, metallurgy, and oil & gas. WEG’s global footprint includes manufacturing in Brazil, Mexico, Portugal, China, and India.

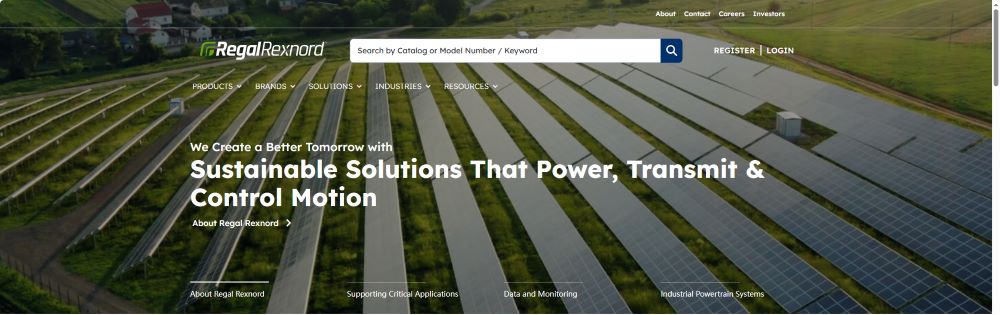

15. Regal Rexnord — USA
Founded: 1955 (Rexnord) / 1955 (Regal Beloit) | Headquarters: Rosemont, Illinois, USA | Employees: ~30,000
Regal Rexnord (merged 2021) is a major manufacturer of industrial motors, including BLDC and ECM (electronically commutated motor) products. The company’s Marathon and LEESON brands offer BLDC motors for HVAC, industrial fans, and material handling. In November 2024, Regal Rexnord introduced the PCR 56/06 EC SD, an advanced integrated hardware and software motion controller designed specifically for BLDC motors. The company’s motors meet NEMA MG 1 and IEC 60034 standards and serve commercial HVAC, VFD-compatible systems, and industrial automation markets.

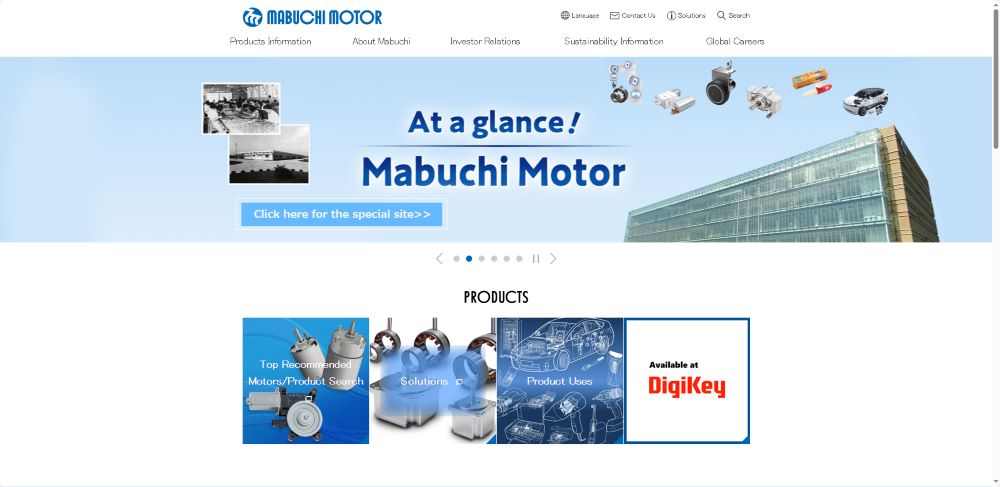

16. Mabuchi Motor — Japan
Founded: 1954 | Headquarters: Chiba, Japan | Employees: ~20,000
Mabuchi Motor is the world’s largest manufacturer of small DC motors, producing over 1.4 billion units annually. While historically focused on brushed DC motors, Mabuchi has expanded into BLDC motors for automotive actuators, consumer electronics, and home appliances. The company’s BLDC products emphasize cost-effective mass production with automated winding and assembly lines in China, Vietnam, and Mexico. Mabuchi’s motors achieve efficiencies of 75–85% in small form factors (10–40 mm diameter) and serve automotive mirror actuators, windshield wipers, and automotive electric armrests.
17. Bühler Motor GmbH — Germany
Founded: 1928 | Headquarters: Nuremberg, Germany | Employees: ~1,800
Bühler Motor specializes in small BLDC motors for automotive, medical, and industrial applications. The company’s motors feature CAN bus connectivity, sustainable design principles, and compact form factors. Bühler’s BLDC products serve automotive HVAC blowers, medical infusion pumps, and industrial valve actuators. The company holds IATF 16949 and ISO 14001 certifications and emphasizes eco-friendly manufacturing with recyclable materials.
18. Greensky Power Co., Ltd. — China
Founded: 2012 | Headquarters: Shenzhen, China | Specialization: BLDC motors, gear motors, stepper motors
Greensky Power is a vertically integrated Chinese motor manufacturer specializing in brushless DC motors, planetary gear motors, and stepper motors for global B2B markets. The company’s BLDC motors feature IP65-rated housings, torque outputs up to 5 Nm, and operating voltages from 12V to 72V. Greensky’s motor manufacturing capabilities include in-house CNC machining, automated winding, magnet assembly, and 100% dynamometer testing of every production unit. The company holds CE, UL, and RoHS certifications and serves electric bicycle, industrial tool, robotics, and automation markets across 60+ countries. Greensky’s BLDC product portfolio includes 12V brushless DC motor controllers, 48V BLDC controllers, and planetary gear motor combinations with custom gear ratios.

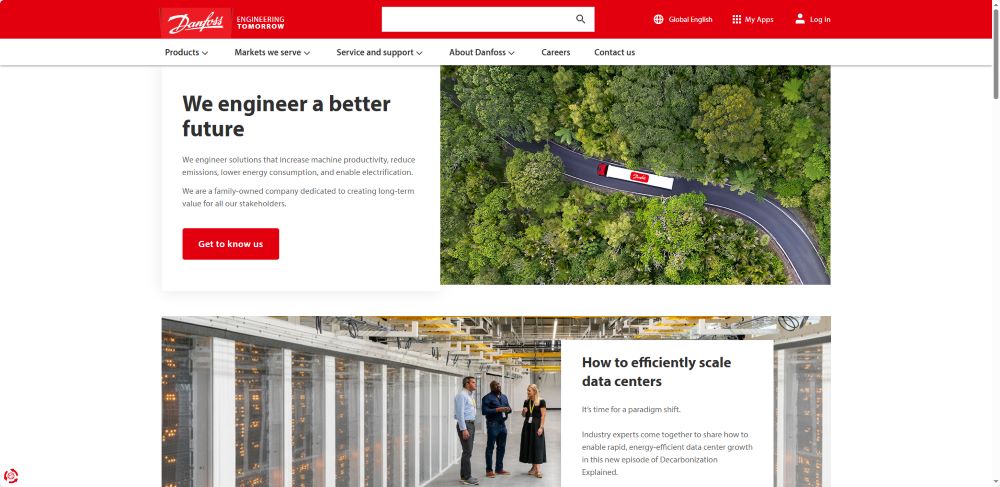

19. Danfoss — Denmark
Founded: 1933 | Headquarters: Nordborg, Denmark | Employees: ~40,000
Danfoss produces BLDC motors for renewable energy, marine, and industrial refrigeration applications. The company’s motors feature ISO 12944 C5-M corrosion protection coatings for marine environments and power ratings up to 100 kW. Danfoss’s variable-speed BLDC drive systems optimize energy consumption in HVAC compressors, industrial pumps, and refrigeration systems. The company’s drives comply with IEC 61800-2 and EN 50598-2 efficiency standards for power drive systems.
20. Kollmorgen / SANYO DENKI — Japan
SANYO DENKI Founded: 1947 | Headquarters: Tokyo, Japan | Employees: ~3,500
SANYO DENKI is a specialist in servo motors, cooling fans, and motor control systems. The company’s Sanmotion AC servo and BLDC motor series delivers high-precision motion control for semiconductor manufacturing equipment, machine tools, and robotics. SANYO DENKI’s BLDC cooling fans achieve industry-leading airflow-to-noise ratios and are specified in data center cooling systems worldwide. The company holds ISO 9001, ISO 14001, and UL certifications, with manufacturing facilities in Japan, China, and the Philippines.
Top 5 Brushless Motor Manufacturers — Quick Comparison
| Manufacturer | Core Strength | Best BLDC Product Category | Key Certifications | Power Range |
|---|---|---|---|---|
| Nidec | Global scale & miniaturization | Consumer electronics / EV traction | ISO 9001, IATF 16949, UL | 0.1 W – 300 kW |
| Maxon | Precision & aerospace heritage | Micro BLDC (6–90 mm) | ISO 9001, EN 9100, FDA | 0.3–250 W |
| Faulhaber | Ironless winding technology | Miniature high-speed BLDC | ISO 9001, ISO 14001 | 0.1–200 W |
| Siemens | System integration & IoT | Industrial IE4/IE5 motors | IEC 60034, NEMA MG 1, UL, CE | 0.12 kW – 1+ MW |
| Greensky Power | Cost-effective customization | BLDC + gearbox integrated solutions | CE, UL, RoHS, ISO 9001 | 5–500 W |
Best Applications for Brushless DC Motors
1. Electric Vehicles and E-Mobility
BLDC motors dominate e-bike, e-scooter, and light EV markets due to their high efficiency (85–92%), compact size, and regenerative braking capability. Hub motors for e-bikes typically deliver 250–750 W at 36–48V, with planetary gear reduction for torque multiplication. Per DOE 10 CFR Part 431, EV traction motors must meet IE3 minimum efficiency. Understanding electric motor specifications is critical for EV powertrain design.
2. Industrial Automation and Robotics
BLDC motors power servo axes in CNC machines, gear reducer systems, pick-and-place robots, and AGV (Automated Guided Vehicle) drives. Precision BLDC servo motors from Kollmorgen and Yaskawa achieve positioning accuracy of ±0.001° with 20–26 bit encoders. IEC 60034-1 duty cycles (S1–S9) define thermal limits for continuous versus intermittent operation in these applications.
3. Medical Devices
Surgical robots, dental handpieces, infusion pumps, and diagnostic imaging equipment rely on sterilizable BLDC motors from Portescap and maxon. These motors meet ISO 13485 medical device quality management and withstand autoclave sterilization at 134°C. Maxon’s EC-4pole motors power surgical robotic arms with sub-millimeter positioning accuracy, while Faulhaber’s 0615 series (6 mm diameter) enables minimally invasive surgical tools.
4. HVAC and Building Automation
BLDC ECM (Electronically Commutated Motor) technology has replaced PSC (Permanent Split Capacitor) motors in HVAC fans, blowers, and pumps, delivering 30–70% energy savings per DOE estimates. Regal Rexnord’s PCR 56/06 EC SD controller and Siemens’ SIMOTICS motors serve this market. Reducing electric motor noise is a key engineering requirement in residential and commercial HVAC.
5. Aerospace and Defense
BLDC motors in aerospace must meet MIL-STD-810 environmental, DO-160G EMC, and AS9100D quality standards. AMETEK’s BLDC motors power UAV propulsion systems and satellite actuators, while Moog’s frameless BLDC motors integrate into flight control surfaces. These motors operate at −55°C to +125°C and withstand 100g shock loads per MIL-STD-810H.
Step-by-Step BLDC Motor Selection Guide
Step 1 — Define Application Requirements
Document the required torque (continuous and peak), speed range, supply voltage, duty cycle (per IEC 60034-1 S1–S9), ambient temperature, and any size or weight constraints. For example, an AGV drive may require 15 Nm continuous torque at 200 rpm, 24V supply, S1 duty (continuous), and IP54 protection.
Step 2 — Calculate Required Motor Specifications
Using the torque formula T = KT × I and power equation P = T × (2πn/60), determine the minimum rated torque, speed, and power. Add a safety margin of 1.5–2× for peak torque and 1.2× for continuous torque to account for load variations. For geared BLDC systems, divide the output torque by the gearbox ratio and multiply by gearbox efficiency (typically 85–95%).
Third Step — Select Motor Type and Configuration
Choose between inner-rotor (high speed, low inertia), outer-rotor (high torque, smooth low-speed operation), or slotless (zero cogging) based on application priorities. For applications below 1,000 rpm output, select a BLDC motor with integrated gearbox to multiply torque and reduce speed.
Step 4 — Verify Thermal Performance
Calculate the temperature rise using the motor’s thermal resistance values (Rth1 = winding-to-housing, Rth2 = housing-to-ambient) from the manufacturer datasheet: ΔT = Ploss × (Rth1 + Rth2). Ensure the calculated winding temperature does not exceed the insulation class limit per IEC 60034-1. For example, a Faulhaber 2057BA dissipating 2 W with Rth1 = 1.1 K/W and Rth2 = 15 K/W rises 32.2 K above ambient, safely within Class F (155°C) limits at 40°C ambient.
Step 5 — Evaluate Controller and Feedback Compatibility
Match the motor’s electrical constants (phase resistance, inductance, pole count) to the controller’s current and voltage ratings. Verify Hall sensor or encoder compatibility. For sinusoidal commutation (FOC), ensure the controller supports the motor’s pole pair count and phase sequence. Speed control accuracy depends on feedback resolution: Hall sensors (60° resolution) for general applications, 17+ bit encoders for servo-grade precision.
Step 6 — Validate Compliance and Certifications
Confirm the motor meets required certifications for the target market: UL 1004-1/1004-6 (US motor safety), CE EN 60034-1/60034-5 (EU), IEC 60034-30-1 efficiency class, NEMA MG 1 (US industrial), and DOE 10 CFR Part 431 (US efficiency mandate). For automotive applications, verify IATF 16949 compliance; for medical, ISO 13485; for aerospace, AS9100D.
Common Engineering Mistakes in BLDC Motor Selection
Mistake 1 — Confusing Rated Torque with Stall Torque
Many engineers select motors based on stall torque (the maximum torque at zero speed), which can be 5–10× the rated continuous torque. Operating near stall torque for extended periods rapidly exceeds thermal limits. Correct approach: Always size based on the maximum continuous torque rating from the manufacturer datasheet, using stall torque only for brief acceleration/deceleration transients.
Mistake 2 — Ignoring Thermal Derating at High Ambient Temperature
Motor torque ratings are specified at 22–40°C ambient. At 60°C ambient, the continuous torque must be derated by 15–25% to stay within insulation class limits. Correct approach: Calculate the actual temperature rise using thermal resistance values and derate the torque proportionally: Tactual = Trated × √((Tmax − Tambient) / (Tmax − 40)).
Mistake 3 — Overlooking Controller Current Limit
A BLDC motor can only produce torque if the controller supplies sufficient current. Selecting a high-KT motor with an undersized controller results in torque starvation. Correct approach: Verify that the controller’s peak and continuous current ratings exceed the motor’s requirements by at least 20% to allow for control loop headroom.
Mistake 4 — Neglecting Cogging Torque in Precision Applications
Slotted BLDC motors exhibit cogging torque (typically 1–5% of rated torque), causing position ripple and acoustic noise in precision motion applications. Correct approach: For sub-arc-minute positioning, select slotless (ironless) BLDC motors from Faulhaber or maxon, or apply skewing techniques per IEEE design optimization papers (DOI: 10.1109/IEEECONF52705.2021.9467459).
Mistake 5 — Specifying Incorrect Pole Pair Count for Commutation
Mismatched pole pair counts between motor and controller cause commutation errors, reduced efficiency, and potential damage. Correct approach: Always verify the motor’s pole pair count (from the datasheet) matches the controller configuration. Most industrial BLDC motors use 2–8 pole pairs, while high-torque designs may use 10+ pairs.
Mistake 6 — Underestimating Gearbox Efficiency Losses
When using a BLDC motor with a gearbox, the system efficiency is the product of motor and gearbox efficiencies: ηsystem = ηmotor × ηgearbox. A 90% efficient motor with a 75% efficient worm gearbox yields only 67.5% system efficiency. Correct approach: Specify planetary gearboxes (90–95% efficiency) instead of worm gears (60–75%) for BLDC applications where energy efficiency matters.
BLDC Motor Troubleshooting: Problem → Cause → Solution
| Problem | Likely Cause | Solution |
|---|---|---|
| Motor does not start or jerks erratically | Incorrect Hall sensor wiring or phase sequence mismatch | Verify Hall sensor signal order matches controller phase output; swap any two motor phase wires to reverse direction |
| Excessive noise and vibration at all speeds | Misaligned coupling or worn bearings; also check for mechanical resonance | Realign coupling per manufacturer tolerance; replace bearings (check noise reduction techniques); add damping |
| Motor overheats under rated load | Inadequate ventilation, wrong duty cycle, or controller current limit set too high | Verify S1 vs S3 duty cycle per IEC 60034-1; reduce load or improve cooling; check controller current limit matches motor Irated |
| Reduced torque output at high speed | Back-EMF approaching supply voltage limit (voltage saturation) | Increase supply voltage; select motor with lower KE; reduce load at high speed |
| Position drift in servo mode | Encoder resolution too low or feedback loop gain incorrectly tuned | Upgrade to higher-resolution encoder (17+ bit); tune PID gains; verify encoder coupling integrity |
| Controller faults on acceleration | Peak current exceeds controller’s overcurrent protection threshold | Reduce acceleration ramp time; increase controller current rating; verify motor phase-to-phase resistance |
| Inconsistent speed under varying load | Open-loop control or insufficient PID tuning in closed-loop mode | Switch to closed-loop speed control; tune speed loop PID gains; verify Hall sensor or encoder feedback |
| Premature bearing failure | Excessive radial/axial load beyond manufacturer specification | Verify loads against SKF L10h bearing life calculation; add external bearing support; reduce belt tension |
Frequently Asked Questions (FAQ)
Q1: What is the average efficiency of a brushless DC motor?
BLDC motors typically achieve 85–92% efficiency, compared to 75–80% for brushed DC motors and 70–85% for AC induction motors. Premium BLDC motors from manufacturers like Faulhaber (2264BP4: 91%) and maxon (EC-4pole: 89%) approach the IE4/IE5 efficiency classes defined in IEC 60034-30-1. The higher efficiency results from eliminating brush friction losses and using optimized permanent-magnet rotors.
Q2: How long do brushless DC motors last?
BLDC motors typically last 10,000–30,000+ hours of continuous operation, compared to 1,000–3,000 hours for brushed DC motors. The primary wear items are bearings and insulation. Bearing life can be calculated using the SKF L10h formula: L10h = (C/P)3 × (1,000,000 / 60n), where C is the bearing dynamic load rating and P is the equivalent applied load. With proper sizing and maintenance, industrial BLDC motors can exceed 50,000 hours of service life.
Q3: Can I use a BLDC motor without a controller?
No. BLDC motors require an electronic controller for commutation—unlike brushed DC motors that self-commutate via mechanical brushes. The controller reads rotor position from Hall sensors or back-EMF and sequentially energizes the stator phases. Attempting to apply DC directly to a BLDC motor will not produce rotation and may damage the windings.
Q4: What is the difference between BLDC and PMSM motors?
BLDC motors and PMSM (Permanent Magnet Synchronous Motors) are both permanent-magnet synchronous machines per IEC 60034-1. The key difference is commutation: BLDC motors use trapezoidal (6-step) commutation with rectangular back-EMF, while PMSM motors use sinusoidal commutation (FOC) with sinusoidal back-EMF. PMSM provides smoother torque and is preferred for servo applications; BLDC is simpler and more cost-effective for general-purpose applications.
Q5: Which countries dominate BLDC motor manufacturing?
Japan (Nidec, Mabuchi, SANYO DENKI), Germany (Siemens, Faulhaber, Bosch, Bühler), Switzerland (ABB, Maxon), the USA (AMETEK, Allied Motion, Kollmorgen, Moog), and China (Johnson Electric, Greensky Power) are the primary manufacturing nations. The Asia-Pacific region accounts for over 50% of global BLDC production, driven by electronics manufacturing and EV supply chains. China’s GB 18613 standard now mandates IE3 efficiency for industrial motors, accelerating BLDC adoption.
Q6: How do I choose between a Chinese and a European BLDC motor manufacturer?
European manufacturers (Maxon, Faulhaber, Siemens) excel in precision, aerospace-grade, and ultra-high-efficiency BLDC motors but command premium pricing. Chinese manufacturers (Greensky Power, Johnson Electric) offer competitive BLDC solutions with strong OEM/ODM customization, shorter lead times, and cost advantages of 30–50% for equivalent specifications. For applications requiring IEC 60034 and NEMA MG 1 compliance with cost optimization, Chinese manufacturers like Greensky Power provide CE- and UL-certified BLDC motors that meet international standards while offering flexible manufacturing partnerships.
Why Choose Greensky Power for Your BLDC Motor Needs?
Greensky Power combines vertical manufacturing integration with engineering-driven design to deliver BLDC motor solutions that compete with global brands on quality while offering significant cost advantages:
- In-House Manufacturing: CNC machining, automated winding, magnet assembly, and gearbox production under one roof—eliminating supply chain delays and ensuring consistent quality across all motor product lines.
- Engineering-Driven Customization: Our application engineers work directly with your design team to specify optimal KT, KE, thermal parameters, and gear ratios per IEC 60034-1 and NEMA MG 1 standards. Custom winding configurations, shaft designs, and OEM hybrid solutions are available with MOQs as low as 100 units.
- 100% Dynamometer Testing: Every production BLDC motor undergoes full-load testing for torque, speed, efficiency, temperature rise, and noise—ensuring zero defect delivery. Test reports are available per customer request.
- Global Compliance: CE, UL, RoHS, and ISO 9001 certifications ensure our motors meet regulatory requirements in North America, Europe, and Asia-Pacific markets. Rare-earth permanent magnet materials comply with conflict mineral regulations.
- Global Trade Show Presence: Greensky Power exhibits at major industry trade shows including Canton Fair, Hannover Messe, and CES, maintaining direct relationships with B2B customers in 60+ countries.
- Scalable Production Capacity: Monthly capacity exceeds 200,000 units across BLDC motor, gearbox, and controller product lines, with lead times of 15–25 days for standard configurations and 30–45 days for custom designs.
References and Authoritative Sources
- IEC 60034-30-1:2020 — Rotating electrical machines — Part 30-1: Efficiency classes of line operated AC motors. International Electrotechnical Commission. https://webstore.iec.ch/publication/67502
- IEC 60034-1:2022 — Rotating electrical machines — Part 1: Rating and performance. International Electrotechnical Commission. https://webstore.iec.ch/publication/679
- NEMA MG 1-2024 — Motors and Generators. National Electrical Manufacturers Association. https://www.nema.org/standards/view/motors-and-generators
- U.S. Department of Energy — Energy Conservation Standards for Electric Motors (10 CFR Part 431). https://www.energy.gov/eere/buildings/electric-motors
- MarketsandMarkets — Brushless DC Motor Market — Global Forecast to 2030. https://www.marketsandmarkets.com/Market-Reports/brushless-dc-motor-market-1087173.html
- IEEE — Ozturk Tosun, N.F. Oyman Serteller, G. Yalcin, “Comprehensive Design and Optimization of Brushless Direct Current Motor for the Desired Operating Conditions,” 2021 25th International Conference Electronics, DOI: 10.1109/IEEECONF52705.2021.9467459
- IEEE — Park, Y. et al., “Efficiency Improvement of Permanent Magnet BLDC With Halbach Magnet Array for Drone,” IEEE Transactions on Applied Superconductivity, Vol. 30, No. 4, 2020, DOI: 10.1109/TASC.2020.2971672
- SKF Group — Bearing Life Calculation — L10h and SKF Generalized Bearing Life Model. https://www.skf.com/group/products/bearings-units-housings/principles/bearing-life
- Siemens AG — SIMOTICS Electric Motors — Product Catalog and Technical Specifications. https://www.siemens.com/global/en/products/automation/motor-systems.html
- IEA — Energy Efficiency 2024: Opportunities for Energy Efficiency in Electric Motor Systems. International Energy Agency. https://www.iea.org/reports/energy-efficiency-2024
TOP 10 Chinese BLDC Motor Manufacturers
TOP 30 Electric Motor Manufacturers In China
TOP 10 Chinese Helical Gear Motor Manufacturer
TOP 10 DC Motor Manufacturers In China
