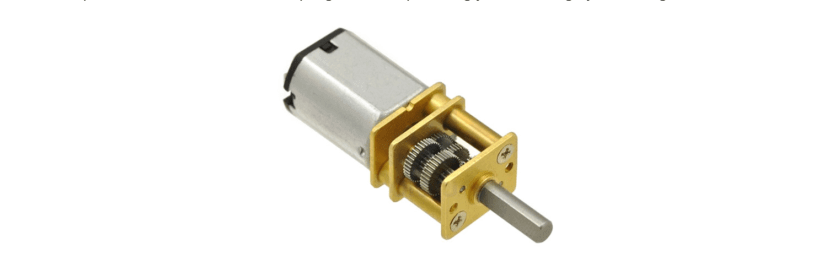

What Is the Use of DC Geared Motor?
[ez-toc]
Buyers who skip this step usually pay twice. Specifying a bare brushed DC motor for a load that needs 40 N·m at 30 rpm produces a motor that stalls, overheats, and fails inside a week. Understanding what the gearbox actually does — and what it costs you in efficiency and backlash — is the difference between a drive that runs for eight years and one that comes back under warranty.
What Is a DC Geared Motor?
A DC geared motor (also written DC gear motor or DC gearmotor) is a single mechanical assembly combining a direct-current electric motor with an integrated gearbox mounted on the motor shaft. The motor converts electrical energy into rotation; the gearbox converts that rotation into a different speed-torque combination before it reaches the load.
Three parts define the unit:
- The motor stage — either a permanent-magnet brushed DC motor, a brushless DC motor (BLDC), or a coreless DC motor. Typical supply voltages are 6 V, 12 V, 24 V, 36 V, and 48 V DC.
- The reduction stage — spur, helical, planetary, worm, or cycloidal gearing. Ratios range from 3:1 to over 1,000:1.
- The output interface — shaft or hollow bore, plus a mounting flange dimensioned to IEC 60072-1 or a proprietary pattern.
The distinction that trips up most first-time specifiers: a gearbox is a passive component you buy separately, while a gear motor is a matched assembly where the pinion is pressed directly onto the motor shaft. We covered that boundary in detail in the difference between a gearbox and a gear motor.
Note that IEC 60034-30-1 explicitly states that geared motors fall within the scope of efficiency classification, including those with non-standard shafts and flanges [2]. Buyers importing into the EU should not assume a gear motor is exempt from IE-class declaration requirements.
How a DC Geared Motor Works: Step by Step
Step 1 — Current produces torque in the armature
DC voltage applied across the terminals drives current through the armature windings, which sit inside a magnetic field created by permanent magnets or field coils. The Lorentz force acting on the current-carrying conductors produces shaft torque. Torque is proportional to current; speed is proportional to applied voltage minus the back-EMF drop. If the fundamentals are unfamiliar, start with what is a DC motor.
Step 2 — Commutation keeps the torque unidirectional
Brushed designs use carbon brushes and a copper commutator to reverse current direction mechanically as the rotor turns. BLDC designs replace this with electronic commutation driven by Hall sensors or sensorless back-EMF detection, controlled by a BLDC motor controller.
Step 3 — The first gear stage takes the load
The motor pinion meshes with the first gear wheel. Each mesh reduces speed and multiplies torque by that stage’s ratio. A stage is simply one pair of meshing gears.
Step 4 — Stages compound
Overall ratio is the product of all stage ratios. Three stages at 5:1 each give 125:1. But efficiency compounds too — in the wrong direction, since stage efficiencies multiply.
Step 5 — Output torque reaches the load
The final wheel drives the output shaft, which is supported by sleeve or ball bearings sized for the expected radial and axial load. Where the load must hold position without power, a self-locking worm stage or a brake is added.
The core relationship:
Tout = Tmotor × i × ηwhere i = gear ratio, η = total gearbox efficiency
Speed division is exact. Torque multiplication is not — η eats into it, and η is where most datasheet disappointments come from. See how a planetary gearbox works for the load-sharing mechanics behind the highest-efficiency configuration.
DC Geared Motor Types Compared
Gearbox architecture, not motor type, decides most of the mechanical behaviour. This table reflects typical values for industrial-grade units in the 10–200 W class.
| Gearbox Type | Efficiency / Stage | Practical Ratio | Backlash | Self-Locking | Relative Cost | Best Fit |
|---|---|---|---|---|---|---|
| Spur | 90–96% | 3:1 – 300:1 | 1–3° | No | Low | Appliances, toys, low-duty actuators |
| Helical | 94–98% | 3:1 – 200:1 | 0.5–2° | No | Medium | Continuous conveyors, low-noise HVAC |
| Planetary | 90–97% | 3:1 – 1000:1 | 6–60 arcmin | No | Medium-High | Robotics, AGV wheel drives, EV actuators |
| Worm | 40–90% | 5:1 – 100:1 | 15–60 arcmin | Yes (lead angle < ~5°) | Low-Medium | Gates, hoists, lifts, anything that must hold load |
| Cycloidal | 85–93% | 6:1 – 500:1 | < 3 arcmin | No | High | Shock-loaded drives, heavy positioning |
| Harmonic | 70–85% | 30:1 – 320:1 | < 1 arcmin | No | Very High | Collaborative robot joints, precision stages |
Motor topology is the second decision. The trade-offs are covered in depth in BLDC vs brushed DC motor, but the short version is below.
| Parameter | Brushed DC Gear Motor | BLDC Gear Motor | Coreless DC Gear Motor |
|---|---|---|---|
| Motor-stage efficiency | 65–80% | 85–92% | 75–88% |
| Service life (motor stage) | 500–3,000 h (brush-limited) | 10,000–30,000 h (bearing-limited) | 1,000–5,000 h |
| Drive electronics required | PWM H-bridge | 3-phase controller | PWM H-bridge |
| EMI / electrical noise | High (brush arcing) | Low | Medium |
| Rotor inertia | Medium | Medium | Very low |
| Unit cost index | 1.0 | 1.8–3.0 | 2.5–5.0 |
Engineering Data You Need Before You Specify
Torque and power formulas
Pmech (W) = T (N·m) × n (rpm) ÷ 9.549
Tmotor,required = Tload ÷ (i × η) × SF
imax = nmax,gearbox input ÷ noutput required
Apply a service factor (SF) of 1.3–1.5 for steady loads and 2.0–2.5 for reversing or shock-loaded duty. Skipping SF is the single most common sizing error we see on incoming RFQs. The full worked method sits in how to calculate motor torque.
How efficiency collapses with stage count
Gearhead efficiency is not a fixed number — it drops sharply as ratio climbs, because each additional mesh multiplies its own loss into the chain. maxon’s published gearhead data illustrates the curve clearly [9]:
| Reduction Ratio | Number of Stages | Max Gearhead Efficiency | Torque Actually Delivered vs. Ideal |
|---|---|---|---|
| 4:1 | 1 | 90% | 90% |
| 16:1 | 2 | 81% | 81% |
| 64:1 | 3 | 73% | 73% |
| 256:1 | 4 | 65% | 65% |
| 1296:1 | 5 | 57% | 57% |
Read that as a warning about high-ratio shortcuts: at 1296:1 you lose 43% of your torque multiplication and convert it into heat inside the gear housing. A single-stage heavy-duty planetary gearhead by contrast reaches 95% [9]. Where a high reduction is unavoidable, splitting it across a two-stage planetary plus a pulley reduction usually beats a five-stage gearhead on both efficiency and service life.
Thermal limits
Winding insulation class sets the ceiling. IEC 60034-1 and NEMA MG 1 define the same class boundaries [1][3]:
| Insulation Class | Max Hot-Spot Temperature | Permitted Rise (40 °C ambient) | Typical Use in DC Gear Motors |
|---|---|---|---|
| A | 105 °C | 60 K | Legacy / consumer |
| B | 130 °C | 80 K | General purpose |
| F | 155 °C | 105 K | Industrial standard |
| H | 180 °C | 125 K | Boiler, foundry, high-ambient |
Two constraints matter more than the table:
- The gearbox usually fails before the winding. Grease service temperature in standard lithium-complex lubricants runs out around 120 °C. maxon specifies a recommended range of −5 °C to +80 °C for standard gearheads and offers special lubricants outside it [9]. Above the grease limit, the lubricant film breaks down and tooth-flank wear accelerates fast.
- Insulation life halves for every ~10 K of sustained overtemperature. A Class F motor run continuously at 165 °C hot-spot will not deliver its rated life, even though it never trips a thermal switch.
Duty cycle classification
IEC 60034-1 defines duty types S1 through S10 [1]. Four of them account for almost all DC gear motor applications:
| Duty Type | Definition | Typical Application | Torque Headroom |
|---|---|---|---|
| S1 | Continuous running to thermal steady state | Conveyor, circulation pump, boiler auger | None above rated |
| S2 | Short-time duty, full cool-down between runs | Gate opener, dock leveller | 1.5–2× for short bursts |
| S3 | Intermittent periodic, no full cool-down | AGV, pick-and-place, turnstile | Depends on cyclic duration factor |
| S4 | Intermittent with significant starting losses | High-cycle assembly feeders | Derate for inrush heating |
For S3 and S4 duty, size on RMS torque across the full cycle, not on peak torque. Peak sizing produces an oversized, expensive drive; average sizing produces a burned winding.
Loading and efficiency
The U.S. Department of Energy notes that most electric motors are designed to run between 50% and 100% of rated load, with peak efficiency near 75% load, and that efficiency drops sharply below roughly 50% load [4]. A DC gear motor specified with a 3× safety margin “to be safe” will spend its life in the low-efficiency region, drawing more current per unit of useful work and running hotter than a correctly sized unit. Related reading: what is motor efficiency class and the efficiency of BLDC motors.
Where DC Geared Motors Are Actually Used
Industrial material handling and conveying
Belt and roller conveyors, packaging lines, sorters, and dosing augers run at 10–200 rpm with continuous S1 duty. Helical and worm gear motors dominate here because noise and long-run efficiency matter more than backlash. A 24 V or 48 V DC gear motor lets integrators build low-voltage conveyor sections without a three-phase supply — a real advantage in food, pharma, and modular line design. See also gear motors for concrete and cement mixers.
Robotics, AGVs and AMRs
Wheel drives and robot joints need high torque density in a short axial envelope, which is exactly what planetary gearing delivers. A 500 kg warehouse AMR travelling at 1.5 m/s on 200 mm wheels typically needs a 48 V BLDC motor around 3,000 rpm with a 20:1 planetary stage at η ≥ 92%. The sizing walkthrough is in how much torque does an AGV need, and the drive architecture options in AGV and robot motor solutions. For articulated arms, why robotic arms need speed reducers explains the inertia-matching side.
Automotive and mobility actuators
Power windows, seat adjusters, tailgate lifts, mirror folding, wiper linkages, and EV charge-port doors are all 12 V worm or spur gear motors. Volume drives the design: cost, packaging, and stall-current behaviour matter more than efficiency. On the traction side, BLDC motors for electric vehicles covers the higher-power end.
Access control and gate systems
Swing gates, sliding gates, turnstiles, and flap barriers need controlled acceleration plus a defined hold state. Worm gearing is chosen when the gate must not be pushed open by hand; planetary gearing is chosen when cycle speed and smoothness dominate. See torque requirements for swing gate motors and what motor is used in turnstiles.
Medical and laboratory equipment
Infusion pumps, surgical tools, hospital bed actuators, and analyser transports demand low audible noise, low EMI, and validated reliability. Brushless planetary and coreless gear motors dominate this segment because brush dust and arcing are unacceptable near sensitive electronics and sterile environments.
HVAC, pumps and boiler systems
Variable-speed circulation, damper actuation, and pellet-feed augers run on DC gear motors with wide speed-control range. Application detail: chilled water pump motors and biomass boiler motor solutions.
Outdoor power equipment and appliances
Robotic mowers, blinds, smart locks, pan-tilt cameras, coffee machines, and adjustable desks all sit in the 5–100 W band. See brushless DC motors for lawn mowers and home appliance motor solutions.
How to Select a DC Geared Motor: A 7-Step Process
Step 1 — Define load torque and speed at the driven shaft
Work in the load’s own units first: kg of mass, mm of wheel or drum radius, degrees of incline, target m/s or rpm. Convert to N·m at the output only after the mechanics are settled. Guessing at this stage propagates through every later step.
Step 2 — Add the acceleration term
Ttotal = Tfriction + Tgravity + (Jtotal × α). For high-cycle applications the inertia term often exceeds the static term. Ignoring it is why so many pick-and-place drives “work on the bench” and fail in production.
Step 3 — Choose the gear ratio
Start with i = nmotor,rated ÷ noutput,required. Verify the result does not exceed the gearbox’s maximum permitted input speed. Then check the efficiency penalty against the stage table above.
Step 4 — Select the motor topology
Duty cycle decides this more than anything. Under ~2,000 operating hours over product life with cost pressure: brushed. Above that, or where EMI and maintenance-free operation matter: BLDC. Extremely dynamic micro-motion: coreless. Compare in gear motor vs DC motor and direct drive vs gear motor.
Step 5 — Verify mechanical interfaces
Check permitted radial load at a stated distance from the flange, permitted axial load, shaft diameter and tolerance, flange pattern, and total assembly length. Radial overload is the leading cause of premature output-bearing failure. Background: what is a motor flange.
Step 6 — Confirm the electrical envelope
Nominal voltage, no-load current, stall current, and the controller’s continuous current rating must all agree. Running a 48 V-rated motor on a 24 V bus halves no-load speed and pushes the operating point into a low-efficiency, high-current region. Related: motor controllers and how a variable speed motor works.
Step 7 — Specify environment and protection
IP rating, ambient temperature range, vibration exposure, washdown chemicals, and required certifications (CE, UL, RoHS, REACH). Retrofitting an IP65 seal onto an IP40 design after tooling is finished costs far more than specifying it upfront.
For a broader framework across motor families, see how to select a motor for an industrial application.
Six Engineering Mistakes That Kill DC Gear Motors
- Sizing on peak torque instead of RMS torque. Under S3 duty the winding integrates heat across the whole cycle. Peak-based sizing inflates cost; average-based sizing burns windings. Use RMS.
- Assuming ideal torque multiplication. A 100:1 gearbox at 65% efficiency delivers 65 N·m for every 1 N·m of motor torque, not 100. Designs that budget the ideal number come up short by a third.
- Treating worm self-locking as a safety brake. Static self-locking does not guarantee dynamic self-locking. Under vibration or reverse shock, a self-locking worm set can back-drive. Safety-rated holds need a mechanical brake, and the relevant machinery safety standard, not a lead angle.
- Overhanging the output shaft. Radial load limits are specified at a defined distance from the flange face — typically 5–20 mm on small gearheads. Mounting a heavy pulley at 40 mm can multiply bearing load beyond the rating. SKF’s failure analysis work attributes a large share of premature bearing damage to loading and mounting errors rather than material fatigue [6].
- Ignoring brush life in a continuous-duty design. Carbon brushes are consumables. A brushed gear motor running 16 h/day exhausts a 2,000-hour brush set in about four months. If the machine has no service access, this becomes a field-failure programme. See what are motor brushes and why brushed motors spark.
- Oversizing “for safety margin.” Per DOE guidance, efficiency falls off sharply below 50% load [4]. A 3× oversized drive runs cold on paper and inefficient in practice, with a worse power factor and higher energy cost across the product’s life.
DC Geared Motor Troubleshooting Table
| Symptom | Probable Cause | Corrective Action |
|---|---|---|
| Output torque below spec | Gearbox efficiency lower than assumed; supply voltage sag under load | Measure terminal voltage at full load; recalculate with actual η; check cable cross-section |
| Housing too hot to touch (> 70 °C) | Continuous overload, wrong duty class, blocked ventilation | Verify actual duty against S-class; reduce load or step up frame size; clear airflow path |
| Grinding or clicking from gearbox | Tooth-flank wear, grease breakdown, foreign particle ingress | Open and inspect; replace grease with manufacturer-specified viscosity; check seal integrity |
| Speed drops under load, current spikes | Approaching stall; undersized motor or excessive ratio loss | Compare operating point against speed-torque curve; resize per torque-loss causes |
| Visible brush sparking, carbon dust | Worn brushes, commutator scoring, overload | Replace brush set, skim or replace commutator, or migrate to BLDC |
| Excessive backlash / positioning drift | Worn gear mesh, wrong gearbox class for the application | Measure backlash in arcmin; specify precision planetary or cycloidal stage |
| Motor runs one direction only | H-bridge fault, Hall sensor failure, wiring error | Test controller outputs; verify Hall sequence; see DC motor troubleshooting |
| Oil or grease leak at output shaft | Seal degraded by temperature or chemical exposure | Replace with FKM/Viton seal; confirm chemical compatibility with washdown media |
| Overheating only on inclines or start-up | Inrush and gradient torque exceed continuous rating | Add soft-start ramp in controller; see AGV motor overheating |
Frequently Asked Questions
What is the main use of a DC geared motor?
Delivering high torque at low, controllable speed from a DC supply. The gearbox trades the motor’s natural high speed for torque, which is what conveyors, robot joints, gates, actuators, and pumps actually need. A bare DC motor at 3,000 rpm is useless to a conveyor that runs at 30 rpm.
What is the difference between a DC motor and a DC gear motor?
A DC motor is the electromagnetic converter alone: high speed, low torque, no reduction. A DC gear motor adds an integrated reduction stage, dividing speed by the gear ratio and multiplying torque by ratio × efficiency. It also lowers reflected load inertia by the square of the ratio, which improves controllability. Full comparison: gear motor vs DC motor.
How much torque can a DC geared motor produce?
Multiply rated motor torque by gear ratio and gearbox efficiency. A 0.1 N·m motor with a 50:1 gearbox at 80% efficiency gives 4 N·m continuous. Commercial DC gear motors span roughly 0.01 N·m in micro sizes to over 200 N·m in industrial frames. Always check whether the datasheet figure is continuous, intermittent, or stall torque — they can differ by 3× or more.
Should I use 12 V or 24 V for a DC geared motor?
At the same output power, 24 V halves the current, which halves I²R cable losses and allows thinner conductors. 12 V suits automotive and small battery products where the bus is fixed. 24 V and 48 V dominate industrial, AGV, and conveyor applications. Match the motor’s rated voltage to the actual bus voltage — a mismatch shifts the operating point off the efficiency peak.
How long does a DC geared motor last?
Brushed units are brush-limited at roughly 500–3,000 operating hours before service. BLDC units are bearing- and grease-limited, commonly reaching 10,000–30,000 hours. Gearheads typically achieve 1,000–3,000 hours at maximum permitted load and recommended input speed, and considerably longer when operated below those limits [9].
Can a DC geared motor hold a load without power?
A worm gear motor with a lead angle below roughly 5° is statically self-locking and will usually hold. It is not a certified brake. For lifting, personnel safety, or any application with vibration or reverse shock, specify a mechanical fail-safe brake instead of relying on the gear geometry.
Is a DC geared motor the same as an AC gear motor?
No. DC gear motors run from a DC bus, offer wide speed control with simple PWM, and suit battery and low-voltage systems. AC gear motors run from mains and need a VFD for equivalent speed control. See what is an AC gear motor and AC vs DC motors.
Why Engineers Source DC Geared Motors from Greensky Power
Greensky Power has designed and manufactured micro DC motors, BLDC motors, stepper motors, and controllers since 2011, shipping to OEM customers in more than 50 countries. Motor and gearbox are engineered as one system rather than assembled from two catalogues, which is what keeps the actual delivered torque close to the calculated figure.
- Matched motor-gearbox engineering — planetary, spur, worm, and flat BLDC gear motor configurations sized against your load profile, not a generic catalogue page.
- In-house validation — dynamometers, high-low temperature chambers, CMM, and anechoic rooms; 100% individual unit testing before shipment.
- Standards compliance — ISO, CE, and energy-efficiency certification; documentation aligned with IEC 60034 series requirements for export markets.
- Custom design capability — frame sizes from 22 mm to 120 mm, 12 V to 72 V DC, custom shafts, flanges, connectors, and firmware. See custom electric motor development and our OEM/ODM process.
- Regional support — North America and Europe pre- and after-sales handled through United Motion Inc, cutting response time on samples and warranty issues.
- Low MOQ for engineering samples — prototype validation before you commit tooling.
Send us your load, speed, duty cycle, and envelope constraints. Our engineering team returns a sized proposal with the torque calculation and efficiency assumptions shown, so you can check the numbers yourself. Browse the full range of brushless DC motors, brushed DC motors, gearboxes and speed reducers, and stepper motors, or read more about gear motor manufacturers and suppliers in China.
