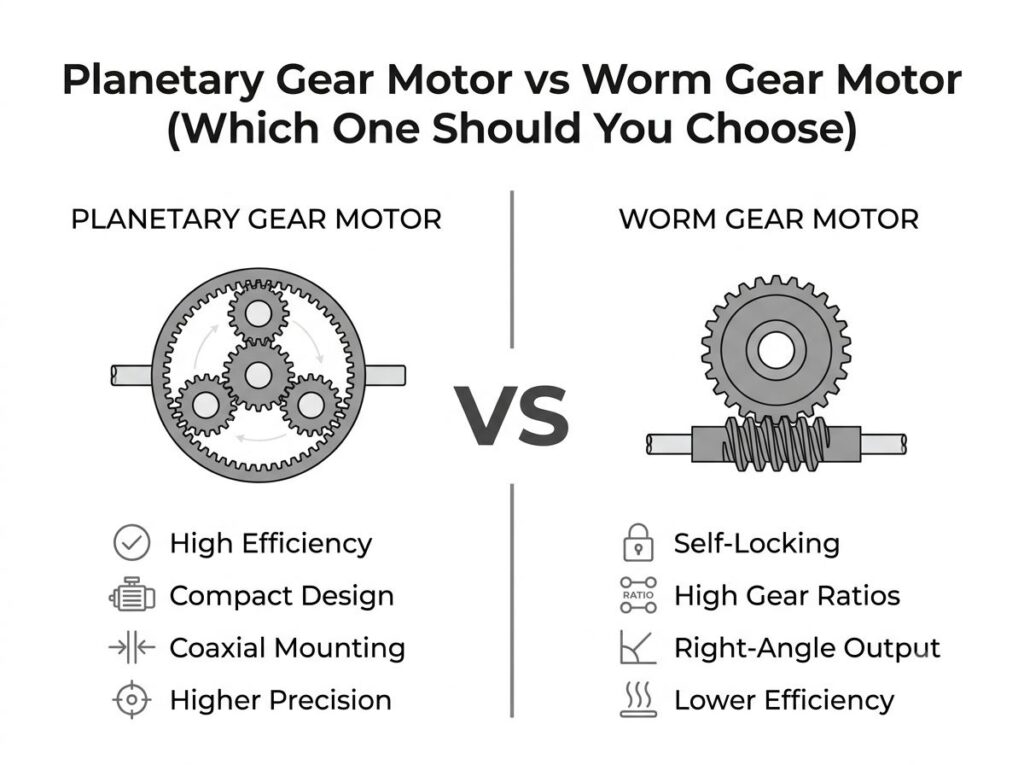

Planetary Gear Motor vs Worm Gear Motor: Which One Should You Choose?
Many engineers mistakenly compare planetary and worm gear motors solely by reduction ratio or purchase price. In reality, selecting the right solution requires evaluating the entire drive system—including duty cycle, required torque, operating speed, positioning accuracy, energy efficiency, available installation space, maintenance requirements, and total lifecycle cost.
This engineering comparison guide explains the structural differences, operating principles, performance characteristics, and application recommendations for planetary and worm gear motors. By the end of this article, OEM engineers, purchasing managers, and equipment designers will understand which solution is better suited for their specific application.
Direct Answer:
A planetary gear motor and a worm gear motor both reduce speed and increase torque, but they use different transmission mechanisms. Planetary gear motors provide higher efficiency, higher torque density, better positioning accuracy, and lower backlash because they distribute load across multiple planet gears. Worm gear motors, by contrast, use sliding contact between a worm shaft and worm wheel, offering self-locking capability, compact right-angle output, and lower manufacturing cost for applications where holding force is more important than efficiency.
In general, planetary gear motors are preferred for robotics, AGVs, servo systems, CNC equipment, and precision automation, while worm gear motors remain an excellent choice for lifts, gates, hoists, and other applications requiring self-locking or right-angle transmission.
What Is a Planetary Gear Motor?
A planetary gear motor is a gear motor that combines an electric motor with a planetary gearbox. It is one of the most advanced and efficient mechanical transmission systems used in modern industrial automation because it offers exceptional torque density, compact dimensions, high transmission efficiency, and excellent positioning accuracy.
Unlike conventional parallel-shaft gearboxes, planetary gearboxes distribute transmitted torque through multiple gears simultaneously. This unique load-sharing mechanism enables them to transmit significantly higher torque while maintaining a relatively small size and low weight.
Today, planetary gear motors are widely used in robotics, AGVs, medical equipment, servo drives, CNC machinery, electric mobility systems, aerospace equipment, and intelligent manufacturing.
Main Components of a Planetary Gear Motor
The gearbox section consists of four primary components that work together to transmit power efficiently.
Sun Gear
The sun gear is located at the center of the gearbox and is directly connected to the motor shaft. As the motor rotates, the sun gear drives all surrounding planet gears simultaneously.
Because the sun gear distributes power evenly across multiple gear meshes, the transmitted load is shared rather than concentrated on a single gear pair.
Planet Gears
Several planet gears surround the sun gear. Each planet gear rotates on its own shaft while simultaneously revolving around the central sun gear.
Unlike spur gear systems that rely on a single gear mesh, planetary gearboxes typically use three or more planet gears working together. This arrangement dramatically improves load distribution, increases torque capacity, and reduces localized stress on individual gear teeth.
The result is higher durability, smoother operation, and greater torque density than many other gearbox designs.
Ring Gear
The ring gear is the outer internal gear that surrounds the planet gears. Its internal teeth engage with every planet gear simultaneously.
Depending on gearbox design, the ring gear may remain stationary or rotate as part of the transmission system. In most industrial planetary reducers, the ring gear is fixed while the planet carrier becomes the output component.
Planet Carrier
The planet carrier supports the shafts of the planet gears and usually serves as the gearbox output.
As the planet gears rotate around the sun gear, the carrier rotates at a reduced speed while delivering significantly higher torque to the output shaft.
This configuration produces smooth torque transmission with minimal vibration, making planetary gear motors particularly suitable for precision positioning applications.
How Does a Planetary Gear Motor Work?
The operating principle of a planetary gearbox is based on multiple simultaneous gear engagements.
When the electric motor rotates, torque is transmitted to the central sun gear. The sun gear drives each planet gear, which in turn meshes with the fixed internal ring gear. Because several planet gears share the transmitted load, the carrier rotates more slowly while delivering substantially higher torque than the motor alone.
Unlike worm gear mechanisms that rely on continuous sliding friction, planetary gear systems primarily operate through rolling contact between gear teeth.
This rolling action minimizes friction losses, reduces wear, and explains why planetary gearboxes achieve mechanical efficiencies exceeding 95% in many industrial applications.
Advantages of Planetary Gear Motors
| Advantage | Engineering Benefit |
|---|---|
| Very High Torque Density | Large torque output from compact dimensions |
| High Transmission Efficiency | Typically 95–98% |
| Low Backlash | Excellent positioning accuracy |
| Multiple Load Sharing | Long service life and reduced gear stress |
| Compact Inline Design | Easy integration into automation equipment |
| Smooth Operation | Lower vibration and lower operating noise |
| High Input Speed Capability | Compatible with modern BLDC and servo motors |
Typical Applications of Planetary Gear Motors
Because planetary gear motors combine compact dimensions with outstanding efficiency and precision, they have become the preferred gearbox solution for high-performance motion control systems.
- Industrial robots
- Collaborative robots (Cobots)
- Automated Guided Vehicles (AGVs)
- Autonomous Mobile Robots (AMRs)
- CNC machine tools
- Servo positioning systems
- Medical imaging equipment
- Electric wheel drives
- Warehouse automation
- Semiconductor manufacturing equipment
- Smart turnstiles
- Electric lawn mower drive systems
In many of these applications, planetary gearboxes are paired with high-efficiency BLDC motors to create integrated planetary gear motors capable of delivering high torque, excellent speed control, and precise positioning within a compact footprint.
What Is a Worm Gear Motor?
A worm gear motor is a gear motor that combines an electric motor with a worm gearbox. Unlike planetary gear systems that use multiple meshing gears to transmit power, worm gear motors rely on a screw-like worm shaft driving a worm wheel positioned at approximately 90 degrees.
This unique transmission method enables worm gear motors to achieve high reduction ratios within a compact housing while providing smooth operation and, in many cases, a valuable self-locking function.
Because of their simple construction, right-angle output, and cost-effective design, worm gear motors remain widely used in conveyors, lifting equipment, gate operators, turnstiles, packaging machinery, agricultural equipment, and industrial automation.
Main Components of a Worm Gear Motor
Although worm gear motors appear mechanically simple, each component plays an important role in determining efficiency, durability, and load capacity.
Worm Shaft
The worm resembles a precision-machined screw mounted directly on the motor input shaft. As the motor rotates, the worm continuously drives the mating worm wheel.
Depending on the application, the worm may have one or multiple starts (threads), which influence the reduction ratio, efficiency, and self-locking characteristics.
Worm Wheel
The worm wheel is a bronze or hardened alloy gear whose teeth mesh with the worm shaft.
Unlike conventional spur or planetary gears, the worm wheel does not roll against the worm. Instead, the two components move with significant sliding contact, generating both transmission force and friction.
The material combination of hardened steel worm and bronze worm wheel helps reduce wear while maintaining smooth operation over long service periods.
Right-Angle Drive Configuration
One of the defining characteristics of a worm gearbox is its 90-degree power transmission.
The motor input shaft and gearbox output shaft are positioned perpendicular to each other, allowing equipment designers to reduce installation space and simplify mechanical layouts.
This compact right-angle arrangement makes worm gear motors particularly attractive for machinery where inline gearboxes cannot be easily installed.
Typical examples include:
- Automatic gates
- Swing barriers
- Packaging machinery
- Lifting equipment
- Material handling systems
- Conveyor drives
Sliding Contact Transmission
Unlike planetary gearboxes that primarily rely on rolling contact between gear teeth, worm gearboxes transmit power through sliding contact.
As the worm rotates, its threads slide continuously across the worm wheel teeth. This sliding action creates friction, which is responsible for both the gearbox’s advantages and its limitations.
The sliding contact:
- Produces higher friction losses
- Generates more operating heat
- Reduces overall transmission efficiency
- Creates natural damping
- Allows self-locking under suitable reduction ratios
Although sliding friction reduces efficiency compared with planetary gearboxes, it also provides smoother shock absorption and greater resistance to reverse motion.
How Does a Worm Gear Motor Work?
When the electric motor rotates, torque is transmitted directly to the worm shaft.
The helical threads of the worm engage the worm wheel, causing the wheel to rotate at a significantly lower speed than the motor input.
Because each revolution of the worm advances the worm wheel by only a limited number of teeth, large speed reductions can be achieved within a single gearbox stage.
Reduction ratios such as:
- 20:1
- 30:1
- 50:1
- 60:1
- 80:1
- 100:1
are commonly available without requiring multiple gear stages.
This makes worm gear motors an economical solution for applications requiring high torque at relatively low output speeds.
Advantages of Worm Gear Motors
| Advantage | Engineering Benefit |
|---|---|
| High Reduction Ratio | Large speed reduction in a compact gearbox |
| Right-Angle Output | Simplifies equipment layout |
| Self-Locking Capability | Prevents reverse movement in many applications |
| Quiet Operation | Smooth sliding transmission reduces impact noise |
| Compact Construction | Suitable for space-constrained machinery |
| Cost-Effective Design | Lower manufacturing cost than precision planetary systems |
Typical Applications of Worm Gear Motors
Because of their high reduction ratios, compact right-angle design, and self-locking capability, worm gear motors continue to play an important role in industrial motion control.
Typical applications include:
- Automatic gates
- Swing gate operators
- Industrial lifts
- Hoists
- Conveyor systems
- Packaging equipment
- Agricultural machinery
- Material handling equipment
- Valve actuators
- Food processing equipment
- Smart locks
- Industrial positioning mechanisms
Although many modern automation systems have shifted toward planetary gear motors for higher efficiency and precision, worm gear motors remain the preferred choice whenever self-locking or right-angle transmission is a primary design requirement.
Planetary Gear Motor vs Worm Gear Motor
Planetary and worm gear motors are both designed to reduce speed and increase output torque, but they differ significantly in transmission efficiency, mechanical structure, positioning accuracy, and suitable applications.
Choosing between them should not be based solely on purchase price. Instead, engineers should evaluate total system performance, including efficiency, heat generation, torque density, installation constraints, duty cycle, and maintenance requirements.
| Feature | Planetary Gear Motor | Worm Gear Motor |
|---|---|---|
| Transmission Mechanism | Multiple planetary rolling gears | Sliding worm and worm wheel |
| Efficiency | 95–98% | 50–90% |
| Torque Density | Very High | High |
| Self-Locking | No | Yes (many ratios) |
| Backlash | Low | Medium |
| Noise | Low | Medium |
| Heat Generation | Low | High |
| Mechanical Wear | Low | Higher due to sliding friction |
| Maintenance | Low | Periodic lubrication recommended |
| Cost | Higher | Lower |
| Output Configuration | Inline | Right-angle |
| Positioning Accuracy | Excellent | Good |
| Typical Service Life | Long | Long under proper lubrication |
| Best Applications | Robotics, AGVs, CNC, Servo Systems | Lifts, Gates, Hoists, Conveyors |
The comparison clearly shows that planetary gear motors excel in applications requiring high efficiency, precise positioning, compact dimensions, and continuous-duty operation. Their multiple load-sharing gears enable excellent torque transmission with minimal backlash and reduced wear.
Worm gear motors, on the other hand, remain highly competitive where right-angle output, high reduction ratios, lower acquisition cost, or self-locking functionality are more important than maximum efficiency.
Rather than viewing one technology as universally superior, experienced engineers select the gearbox that best matches the application’s mechanical requirements, safety considerations, and lifecycle cost objectives.
Efficiency Comparison
Transmission efficiency is one of the biggest differences between planetary gear motors and worm gear motors. It directly affects power consumption, operating temperature, battery life, maintenance intervals, and long-term operating costs.
Many buyers assume that all gearboxes have similar efficiency. In reality, the transmission mechanism determines how much energy is lost during operation.
The primary reason planetary gear motors achieve significantly higher efficiency is that they transmit power mainly through rolling contact, while worm gear motors rely on sliding contact.
Planetary Gear Motor: Rolling Contact
Planetary gearboxes use multiple gears that mesh together with rolling motion. During operation, the gear teeth roll against each other with minimal sliding friction.
Because friction is relatively low, less mechanical energy is converted into heat. More of the motor’s input power reaches the output shaft as useful torque.
Typical efficiency values are:
- Single-stage planetary gearbox: 97–98%
- Two-stage planetary gearbox: 95–97%
- Three-stage planetary gearbox: 94–96%
Even when multiple reduction stages are used, planetary gearboxes generally maintain excellent efficiency because each gear mesh experiences very little sliding friction.
This high efficiency explains why planetary gear motors dominate applications such as:
- Industrial robots
- Servo systems
- Automated Guided Vehicles (AGVs)
- Autonomous Mobile Robots (AMRs)
- CNC machine tools
- Medical equipment
Worm Gear Motor: Sliding Contact
A worm gearbox operates differently.
Instead of rolling between gear teeth, the worm continuously slides across the surface of the worm wheel.
This sliding action creates considerably more friction than planetary gear systems.
As friction increases:
- Heat generation increases.
- Lubrication becomes more important.
- Mechanical efficiency decreases.
- Energy consumption increases.
Typical efficiency depends largely on reduction ratio and gearbox design:
| Reduction Ratio | Typical Efficiency |
|---|---|
| 10:1 | 85–90% |
| 20:1 | 75–85% |
| 40:1 | 65–75% |
| 60:1+ | 50–70% |
Higher reduction ratios generally produce lower efficiency because the worm wheel experiences greater sliding distance during each rotation.
Engineering Summary
| Characteristic | Planetary Gear Motor | Worm Gear Motor |
|---|---|---|
| Power Transmission | Rolling Contact | Sliding Contact |
| Typical Efficiency | 95–98% | 50–90% |
| Energy Loss | Low | Medium to High |
| Heat Generation | Low | Higher |
| Battery Runtime (Mobile Equipment) | Longer | Shorter |
For battery-powered equipment such as AGVs, mobile robots, and autonomous lawn mowers, the higher efficiency of planetary gear motors translates directly into longer operating time and reduced energy costs.
Torque Comparison
Torque output is another key factor when selecting between planetary and worm gear motors.
Both gearbox types increase torque by reducing rotational speed, but they distribute transmitted loads differently.
Planetary Gear Motor: Multiple Gear Load Sharing
One of the greatest engineering advantages of planetary gearboxes is their ability to distribute transmitted torque among several planet gears simultaneously.
Instead of relying on a single gear pair, three or more planet gears share the applied load equally.
This produces several important benefits:
- Higher torque density
- Reduced tooth stress
- Higher overload capacity
- Longer gearbox life
- Lower vibration
Because torque is shared by multiple gear meshes, planetary gearboxes can transmit remarkably high torque despite their compact size.
Worm Gear Motor: Single Contact Transmission
In a worm gearbox, torque is transmitted through continuous contact between a single worm thread and the worm wheel.
Although worm gearboxes can still generate high output torque through large reduction ratios, the entire load passes through one contact area.
This results in:
- Higher surface pressure
- Greater friction
- Higher heat generation
- More localized wear
Consequently, worm gear motors usually achieve lower torque density than planetary gear motors of similar physical size.
Torque Density Comparison
| Feature | Planetary | Worm |
|---|---|---|
| Torque Density | ★★★★★ | ★★★★☆ |
| Load Distribution | Multiple Planet Gears | Single Gear Contact |
| Overload Capacity | Excellent | Good |
| Shock Resistance | Excellent | Good |
| Compact Torque Output | Excellent | Moderate |
For high-performance industrial automation where compact size and maximum torque are critical, planetary gear motors are generally the preferred solution.
Speed Comparison
Speed capability differs considerably between planetary and worm gear motors because of their internal transmission mechanisms.
Planetary Gear Motors
Planetary gearboxes can safely operate at much higher input speeds because rolling contact generates relatively little friction.
Typical input speeds include:
- 3,000 RPM
- 5,000 RPM
- 8,000 RPM
- 10,000 RPM (high-performance models)
This makes planetary gearboxes particularly suitable for BLDC motors, servo motors, and other high-speed electric drive systems.
Worm Gear Motors
Because worm gears rely on sliding contact, excessive input speed increases friction and heat generation significantly.
Therefore, worm gearboxes generally operate at lower practical input speeds compared with planetary gearboxes.
Typical applications emphasize controlled low-speed motion rather than maximum rotational speed.
| Performance | Planetary | Worm |
|---|---|---|
| High-Speed Capability | Excellent | Moderate |
| Continuous High-Speed Operation | Excellent | Limited |
| Low-Speed Stability | Excellent | Excellent |
For high-speed servo motion and rapid acceleration, planetary gear motors are generally the better engineering choice.
Heat Generation
Heat generation is closely related to transmission efficiency and mechanical friction.
Lower friction means lower heat generation, which improves component life, lubricant stability, and continuous-duty performance.
Planetary Gear Motors Generate Less Heat
Because planetary gearboxes primarily use rolling contact, only a small portion of input power is lost as heat.
Benefits include:
- Lower housing temperature
- Improved lubricant life
- Longer bearing life
- Higher continuous-duty capability
- Reduced cooling requirements
Worm Gear Motors Produce More Heat
Sliding friction between the worm and worm wheel converts a greater percentage of mechanical energy into heat.
This requires:
- High-quality lubricants
- Proper gearbox ventilation
- Appropriate duty-cycle selection
- Regular maintenance inspections
Under heavy continuous loads, thermal management becomes one of the most important design considerations for worm gear systems.
| Characteristic | Planetary | Worm |
|---|---|---|
| Heat Generation | Low | High |
| Continuous Duty | Excellent | Moderate |
| Cooling Requirement | Minimal | Higher |
Self-Locking Comparison
One feature that clearly distinguishes worm gear motors from planetary gear motors is self-locking capability.
This characteristic is frequently the deciding factor in applications involving lifting, vertical positioning, or safety-critical load holding.
Planetary Gear Motors
Planetary gearboxes are highly efficient and can be easily back-driven. If external forces are applied to the output shaft, torque can usually be transmitted back to the motor.
For this reason, applications requiring load holding typically use an additional electromagnetic brake.
Worm Gear Motors
Many worm gearboxes become partially or fully self-locking when the lead angle is sufficiently small and the reduction ratio is high enough.
Under these conditions, external loads cannot easily rotate the output shaft backward, allowing the gearbox to hold its position without consuming electrical power.
Typical applications benefiting from self-locking include:
- Lifts
- Hoists
- Gate operators
- Adjustable platforms
- Industrial valves
- Smart locking mechanisms
Although not every worm gearbox is completely self-locking, this capability remains one of the primary reasons engineers continue to choose worm gear motors despite their lower transmission efficiency.
Which Is Better for Robotics?
Robotics applications demand a combination of precision, torque density, compact structure, and dynamic response. The choice between planetary and worm gear motors significantly affects joint accuracy, motion smoothness, and energy efficiency.
In most modern robotic systems, planetary gear motors are the preferred solution due to their high efficiency, low backlash, and excellent torque-to-size ratio.
Planetary gearboxes distribute load across multiple gears, which allows robotic joints to achieve smoother motion and better repeatability under dynamic conditions.
Worm gear motors, while mechanically simple, introduce higher friction and lower efficiency, making them less suitable for high-performance robotics.
Recommended: Planetary gear motor (especially BLDC + planetary configuration)
Which Is Better for AGV and AMR Systems?
Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) require efficient power usage, long battery life, and precise speed control.
For these applications, energy efficiency is critical because every percentage of lost power directly reduces operating time.
Planetary gear motors offer 95–98% efficiency, making them ideal for battery-powered mobile systems. Their compact structure also allows integration into wheel hubs and drive modules.
Worm gear motors, due to sliding friction losses, consume more energy and generate more heat, which reduces overall system endurance in mobile robotics.
Recommended: Planetary gear motor
Which Is Better for Conveyor Systems?
Conveyor systems are widely used in logistics, manufacturing, and packaging industries. Their requirements vary depending on load, speed, and operating cycle.
Worm gear motors are often used in light to medium-duty conveyor systems due to their low cost and compact right-angle configuration.
However, in high-duty or continuous operation environments, planetary gear motors provide better thermal stability and higher efficiency.
In heavy industrial conveyors, engineers often prefer planetary gear systems when energy consumption and long-term reliability are key concerns.
Summary:
- Light-duty conveyors → Worm gear motor
- High-efficiency systems → Planetary gear motor
- Heavy-duty automation lines → Planetary preferred
Which Is Better for Turnstiles?
Turnstile systems require smooth rotation, precise control, and consistent torque output for safe and reliable access control operation.
Planetary gear motors are widely used in modern turnstile designs because they provide low backlash, high positioning accuracy, and stable performance under frequent start-stop cycles.
Worm gear motors can also be used due to their self-locking property, but they generally produce more heat and lower efficiency during continuous operation.
In high-end access control systems, planetary gear motors are preferred due to their better lifecycle performance and quieter operation.
Recommended: Planetary gear motor
Which Is Better for Lifting Systems and Hoists?
Lifting systems, hoists, and vertical load applications require strong safety assurance and load-holding capability.
Worm gear motors are particularly suitable for these applications because many worm gear configurations are naturally self-locking. This means the system can hold a load without continuous power input.
This self-locking behavior provides an inherent safety advantage in vertical motion systems such as:
- Small industrial lifts
- Adjustable platforms
- Gate lifting mechanisms
- Simple hoisting devices
Planetary gear motors, while more efficient, typically require an external brake system to maintain position under load.
Recommended: Worm gear motor (for self-locking applications)
How to Choose Between Planetary and Worm Gear Motors
Selecting the correct gear motor type requires evaluating system requirements rather than comparing specifications in isolation.
Engineers should consider torque demand, speed range, duty cycle, energy efficiency, noise level, installation constraints, and safety requirements.
The following application matrix provides a practical engineering guideline for selection.
| Application | Recommended Gear Motor |
|---|---|
| Industrial Robot | Planetary Gear Motor |
| AGV / AMR Drive System | Planetary Gear Motor |
| Servo Positioning System | Planetary Gear Motor |
| CNC Equipment | Planetary Gear Motor |
| Conveyor System (Light Duty) | Worm Gear Motor |
| Conveyor System (Heavy Duty) | Planetary Gear Motor |
| Industrial Lift | Worm Gear Motor |
| Hoist System | Worm Gear Motor |
| Turnstile / Access Control | Planetary Gear Motor |
| Smart Lock / Actuator | Worm Gear Motor |
| Medical Equipment | Planetary Gear Motor |
Why OEM Buyers Choose Greensky Power
For OEM manufacturers, selecting the right supplier is not only about product performance but also about customization capability, consistency, and engineering support.
Greensky Power provides integrated motion solutions covering both planetary and worm gear motor systems for industrial automation applications worldwide.
- Planetary Gear Motors for high-precision applications
- Worm Gear Motors for cost-sensitive and self-locking systems
- BLDC Gear Motor integration solutions
- Spur Gear Motor systems
- Custom gearbox design and ratio optimization
- OEM / ODM engineering support
- Low MOQ for prototype development
- Fast sampling and testing support
This allows OEM customers to reduce development cycles, simplify mechanical design, and accelerate product commercialization.
FAQ
Which is more efficient: planetary or worm gear motors?
Planetary gear motors are significantly more efficient, typically achieving 95–98%, while worm gear motors range from 50–90% depending on ratio and design.
Why are planetary gear motors more expensive?
They require higher precision manufacturing, multiple gear stages, and tighter tolerances, which increases production cost but improves performance and lifespan.
Are worm gear motors self-locking?
Many worm gear motors are self-locking due to their low lead angle and high friction characteristics, making them suitable for lifting and holding applications.
Which gear motor is better for robotics?
Planetary gear motors are preferred due to high torque density, low backlash, and excellent efficiency.
Which gear motor lasts longer?
Both can have long service life, but planetary gear motors typically last longer under continuous high-load conditions due to lower friction.
Which gear motor is best for AGVs?
Planetary gear motors are best due to high efficiency and energy savings in battery-powered systems.
Which gear motor is quieter?
Planetary gear motors are generally quieter due to rolling contact and better load distribution.
Can a BLDC motor use both planetary and worm gearboxes?
Yes. BLDC motors are commonly integrated with both planetary and worm gearboxes depending on whether the application requires efficiency or self-locking capability.
References
1. Shigley’s Mechanical Engineering Design – Gear Systems Fundamentals
2. Electric Machinery Fundamentals – Stephen J. Chapman
3. ISO Gear Transmission Efficiency Standards Overview
4. Industrial Gearbox Design Handbook – Mechanical Power Transmission Systems
5. Journal of Mechanical Design – Planetary vs Worm Gear Efficiency Studies
