How Does a BLDC Motor Work? (Complete Beginner-to-Engineer Guide)
Featured Snippet:
A BLDC motor works by using electronic commutation to switch current through stator windings, creating a rotating magnetic field that interacts with permanent magnets in the rotor. This eliminates brushes, improves efficiency, and enables precise speed and torque control. Compared to traditional motors, BLDC motors offer higher efficiency, better thermal performance, and longer lifespan, making them ideal for industrial automation, electric vehicles, and HVAC systems.
Understanding how does a BLDC motor work is essential for engineers, OEM designers, and procurement teams selecting high-performance motor solutions. Unlike brushed motors, BLDC motors rely on advanced control electronics and electromagnetic principles to achieve superior performance. This article provides an engineering-level breakdown of BLDC motor operation, including working principles, control strategies, efficiency factors, and how to select the right solution for industrial applications.
What is a BLDC Motor and How Does It Work?
A BLDC (Brushless DC) motor is an electric motor that operates without brushes, using electronic commutation instead of mechanical contact.
It works by generating a rotating magnetic field in the stator, which causes the rotor (with permanent magnets) to follow and rotate.
A controller continuously switches current in the stator windings to maintain smooth and efficient motion.
Key Components
- Rotor with permanent magnets
- Stator windings (3-phase)
- Electronic controller (ESC)
- Position sensors (Hall sensors or sensorless system)
BLDC motors are widely used in applications requiring high efficiency and precise control, such as robotics, EVs, and industrial automation.
👉 Explore: BLDC Motor Solutions
BLDC Motor Working Principle (Step-by-Step)
1. Stator Generates a Rotating Magnetic Field
The stator consists of multiple coils. When current flows through these coils, it creates magnetic poles.
By energizing different coils in sequence, a rotating magnetic field is produced.
2. Rotor Follows the Magnetic Field
The rotor is made of permanent magnets. These magnets naturally align with the stator’s magnetic field, causing the rotor to turn as the field rotates.
3. Controller Switches Current (Electronic Commutation)
Instead of brushes, a controller uses sensors (such as Hall sensors) or sensorless algorithms to detect rotor position.
It then switches current between stator windings at the correct timing to keep the motor spinning continuously.

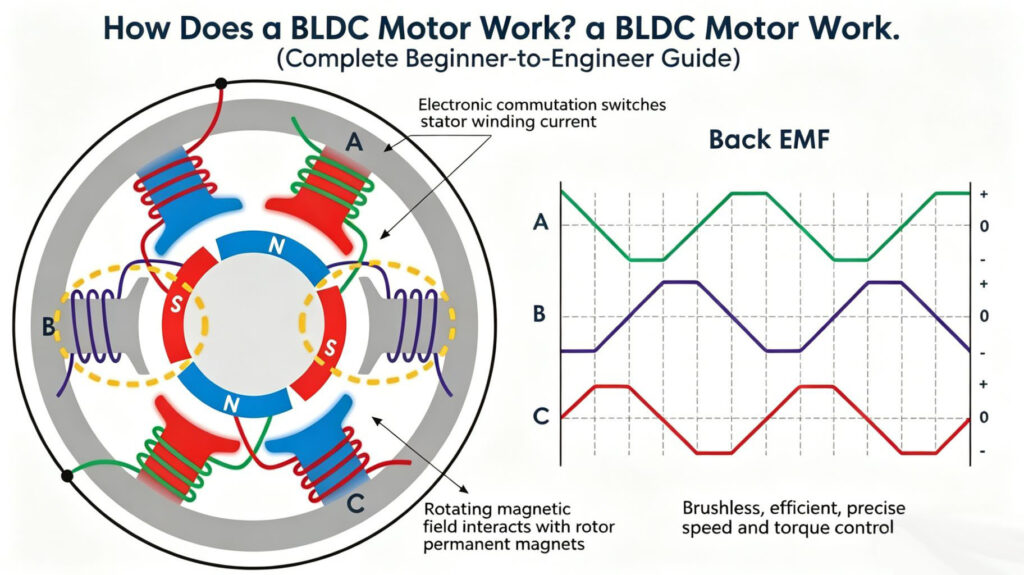

Simple Diagram (Conceptual):
BLDC Motor Structure Explained
Stator
The stator is the stationary part containing copper windings. It is responsible for generating the electromagnetic field that drives the motor.
Rotor
The rotor contains permanent magnets and rotates inside or around the stator depending on motor design (inner rotor or outer rotor).
Controller
The controller is the “brain” of the system. It manages current switching, speed control, and efficiency optimization.

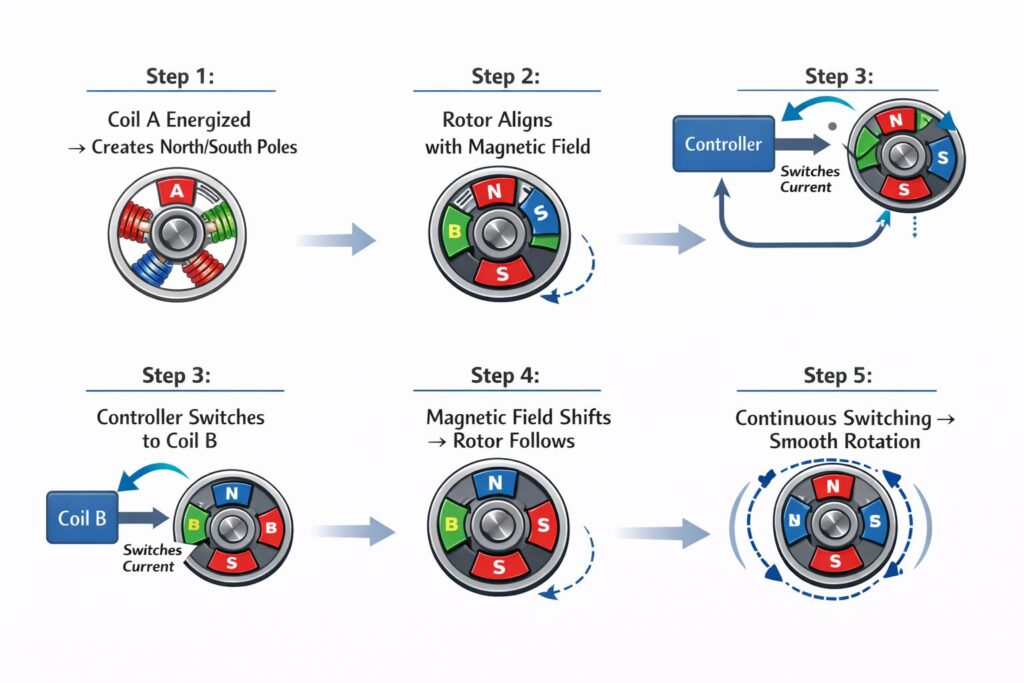

Step-by-Step Visual Explanation
Step 2: Rotor aligns with magnetic field
Step 3: Controller switches to Coil B
Step 4: Magnetic field shifts → rotor follows
Step 5: Continuous switching → smooth rotation
This step-by-step electromagnetic interaction replaces the mechanical commutation found in traditional motors, resulting in higher efficiency and lower wear.
Why BLDC Motors Are More Efficient Than Brushed Motors
Efficiency is one of the main reasons BLDC motors are widely adopted.
Engineering Reasons
- No brush friction losses
- Reduced electrical losses
- Optimized current control
BLDC motors typically achieve efficiencies above 85–90%, significantly reducing energy consumption in industrial systems.
Torque Generation and Magnetic Field Interaction
Torque in a BLDC motor is generated by the interaction between the stator magnetic field and rotor magnets.
Key Factors
- Magnetic field strength
- Current magnitude
- Rotor position alignment
Precise control of these factors allows BLDC motors to deliver high torque density and smooth operation.
Control Systems in BLDC Motors
Control systems are critical to BLDC motor performance.
Types of Control
- Trapezoidal (six-step) control
- Field-Oriented Control (FOC)
Controller Functions
- Switching current between phases
- Speed regulation
- Torque control
Advanced control methods such as FOC provide superior efficiency and performance.
Thermal Performance and Heat Management
Thermal management is essential for reliability.
BLDC Advantages
- Lower heat generation due to high efficiency
- Heat concentrated in stator for easier cooling
Cooling methods include air cooling and liquid cooling for high-power applications such as 48V and 72V systems.
Reliability and Lifespan of BLDC Motors
BLDC motors offer longer lifespan due to reduced mechanical wear.
- No brushes → no wear components
- Lower heat → less insulation degradation
- Stable operation under varying loads
This makes them ideal for continuous-duty industrial applications.
BLDC Motor vs Brushed Motor vs AC Motor
| Parameter | BLDC Motor | Brushed Motor | AC Motor |
|---|---|---|---|
| Efficiency | High | Moderate | Moderate |
| Maintenance | Low | High | Low |
| Control | Advanced | Simple | Moderate |
| Applications | EV, robotics | Low-cost devices | Industrial systems |
BLDC motors provide the best balance of performance and efficiency for modern applications.
How to Choose a BLDC Motor for Your Application
Selecting the right BLDC motor requires careful analysis.
Key Selection Criteria
- Voltage: 24V / 48V / 72V systems
- Power: From watts to kW range
- Speed & Torque: Based on load requirements
- Cooling: Air or liquid cooling
- Controller Compatibility: ESC or FOC controller
Application Examples
- Electric vehicles → 48V/72V BLDC motor
- Robotics → precision BLDC motor
- HVAC → energy-efficient BLDC motor
👉 Request OEM solution: Custom Motor Development
Industrial Applications of BLDC Motors
- Electric vehicles and e-bikes
- Industrial automation
- HVAC systems
- Pumps and compressors
👉 Explore EV motors: Electric Vehicle Motor Solutions
Cost vs Performance: Is BLDC Worth It?
| Factor | BLDC Motor | Traditional Motor |
|---|---|---|
| Initial Cost | Higher | Lower |
| Efficiency | Higher | Lower |
| Lifespan | Longer | Shorter |
| Total Cost | Lower long-term | Higher |
For most industrial applications, BLDC motors provide better long-term ROI.
Future Trends in BLDC Motor Technology
BLDC motors are at the forefront of modern motor technology.
- Integration with smart control systems
- Growth in electric mobility
- Advancements in sensorless control
These trends are driving widespread adoption across industries.
Key Advantages of BLDC Motors
- High Efficiency: Reduced energy losses improve overall system performance
- Long Lifespan: No brushes means less wear and longer operation
- Low Maintenance: Minimal servicing required
- High Torque Density: More power in a compact size
- Low Noise Operation: Ideal for precision and quiet applications
Common Applications of BLDC Motors
- Electric Vehicles: High efficiency and torque control
- Fans & HVAC Systems: Energy-saving and quiet operation
- Robotics: Precise speed and position control
- Industrial Automation: Reliable and long-lasting performance
These advantages make BLDC motors a key component in energy-efficient and high-performance systems across industries.
FAQ: How Does a BLDC Motor Work
1. How does a BLDC motor generate torque?
Torque is generated by the interaction between the stator magnetic field and rotor permanent magnets, controlled electronically.
2. Why are BLDC motors more efficient?
They eliminate brush friction and use optimized current control, reducing energy losses.
3. What are the main advantages of BLDC motors?
High efficiency, low maintenance, long lifespan, and precise control.
4. Where are BLDC motors used?
They are used in EVs, robotics, HVAC systems, and industrial automation.
5. What controls a BLDC motor?
A BLDC motor is controlled by an electronic controller that switches current in the stator windings based on rotor position.
6. Does a BLDC motor need a controller?
Yes. A controller is essential for switching current and maintaining rotation, as BLDC motors cannot operate directly from a DC power supply.
Conclusion: Why BLDC Motors Dominate Modern Applications
Understanding how does a BLDC motor work provides a foundation for selecting high-performance motor solutions. With their superior efficiency, reliability, and control capabilities, BLDC motors are becoming the standard in modern industrial and OEM applications.
