Woodworking Motors: Matching Speed, Inertia and Dust Duty to the Machine

Quick Answer

A woodworking motor is chosen by three numbers before power is even discussed. Rim speed fixes the spindle speed: a 400 mm blade at 3,800 rpm runs at about 80 m/s at the teeth, and a 240 mm blade on the same spindle loses 40 percent of that, down to 47.8 m/s. Stored energy, which grows with the fourth power of blade diameter, sets how hard the arbor is to accelerate and to stop. Dust decides the enclosure, and in some zones the Ex rating as well. Power comes last, from depth of cut and feed rate. A motor that satisfies all three still fails if it sits in the dust stream.

Three Numbers Decide the Motor

Guides to woodworking motors usually start with a taxonomy of motor types. In the workshop the logic runs the other way: the machine decides the motor, and it does so through three quantities that have nothing to do with the kilowatt figure on the plate.

Rim speed at the cutting edge sets the spindle speed. Stored rotational energy in the blade or cutter block sets the starting duty and the braking duty. The dust and chip environment decides the enclosure, the cooling path and, where the installation is a classified zone, the explosion protection. Power comes after those three, and it follows from depth of cut rather than from the nameplate.

Machine familyDominant load on the motorWhat it forces on the specification
Table saw, panel saw, band sawHigh inertia at start, hard stop requiredHigh breakdown torque, brake, dust-proof enclosure
Jointer, thicknesser, moulderInterrupted cut, repeated torque peaksTorque reserve, service factor, robust bearings
Spindle shaper, CNC routerVery high speed, small diameter, continuousHigh-frequency spindle motor, VFD, precision balance
Boring and mortisingLow speed, high torque, multi-spindleGear reduction or 4-pole motor, not 2-pole
Edge sander, wide-belt sanderContinuous light load, long dutyS1 duty, efficiency class, bearing life
Dust collectorFan law load, runs longer than the machineS1 duty, VFD compatibility, clean-air cooling
CNC feed axesPositioning, reversing, high cycle rateServo or stepper, not a general-purpose motor

A dust collector and a saw arbor both get sold as woodworking motors, and their specifications have almost nothing in common. Treating them as one category is how a shop ends up with a saw that stalls on start and a collector that overheats in August.

Rim Speed Fixes the Spindle Speed

The cutting edge has an optimum speed in metres per second, and the spindle speed follows from it. Rim speed is pi times diameter times rotational speed, with diameter in metres and speed in revolutions per second; in millimetres and revolutions per minute that becomes v = pi x D x n / 60000.

Carbide-tipped blades for wood carry a maximum speed that works out at roughly 80 m/s at the rim. Three catalogue examples land on the same figure: a 250 mm blade marked 6,100 rpm gives 79.8 m/s, a 400 mm blade marked 3,800 rpm gives 79.6 m/s, and a 115 mm blade marked 13,500 rpm gives 81.3 m/s. That number is a limit set by the blade construction, not a speed to work at.

Blade diameterSpindle speed for 60 m/sSpindle speed for 80 m/sTypical drive
250 mm4,584 rpm6,112 rpm2-pole motor with belt step-up
300 mm3,820 rpm5,093 rpm2-pole motor, near direct
350 mm3,275 rpm4,366 rpm2-pole with small step-up
400 mm2,865 rpm3,820 rpm2-pole at 60 Hz, direct
500 mm2,292 rpm3,056 rpm2-pole with belt reduction

The 2-pole 60 Hz motor at 3,600 rpm lands close to ideal for the 350 to 420 mm blades on general table and panel saws, and that fit explains why the combination dominates the market. The spindle speed itself belongs to the machine: fit a smaller blade and the rim speed falls with it.

Benchtop table saw with the side panel removed, showing a 200 mm 60-tooth blade, the motor mounted below the table and the belt drive to the arbor
A benchtop saw with the side panel off: 200 mm blade, motor below the table, belt to the arbor. At 3,600 rpm that blade runs at only 37.7 m/s, so this class of machine steps the spindle up to about 5,700 rpm to reach 60 m/s. The blade diameter on the machine, not the motor, decides what the belt ratio has to be.

Why a smaller blade on a bigger saw cuts badly

Safety guidance on circular saw benches makes this explicit: the smallest blade that can be safely used should be marked on the machine, and a blade below about 60 percent of the largest diameter the saw accepts has too low a peripheral speed, cuts inefficiently and increases the risk of kickback [1]. A 240 mm blade on a spindle set for a 400 mm blade runs at 60 percent of the rim speed, so 79.6 m/s becomes 47.8 m/s, and the tooth bite per revolution falls with it.

The motor is not at fault in that situation, and no motor change fixes it. This is usually the point where a buyer starts pricing the wrong component.

Starting a Saw Is a Flywheel Problem

A saw arbor is a flywheel, and the motor has to accelerate it on every start. How long that takes depends on the moment of inertia of the rotating assembly and on the accelerating torque available above the load torque.

For a thin disc the inertia is half the mass times the radius squared. A 400 mm carbide blade of 2.6 kg gives 0.5 x 2.6 x 0.2 squared, or 0.052 kg·m². The rotor of a 3 kW 2-pole motor adds roughly 0.006 kg·m², so the train totals about 0.058 kg·m².

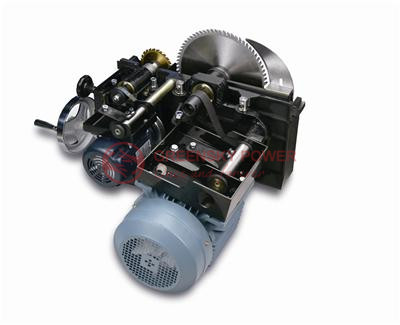

Foot-mounted totally enclosed fan-cooled motor driving a saw arbor through a multi-groove belt, with tensioning screws and a second small motor on the same cradle
A belt-driven arbor assembly. Where the arbor turns twice as fast as the motor, the blade’s inertia is referred to the motor shaft multiplied by four, and so is the torque needed to accelerate it in the same time. The belt ratio therefore belongs in the starting calculation, not just in the speed calculation.

The fourth-power rule for blade energy

Stored energy at a given spindle speed is half the inertia times the square of angular velocity. Mass grows with the square of diameter, and the radius term enters squared as well, so a geometrically similar blade gains inertia with the fourth power of diameter. At the same rpm, doubling blade diameter multiplies stored energy by sixteen.

BladeMass (same construction)InertiaStored energy at 4,000 rpm
250 mm1.0 kg0.0078 kg·m²0.68 kJ
300 mm1.4 kg0.0158 kg·m²1.38 kJ
400 mm2.6 kg0.0520 kg·m²4.56 kJ
500 mm4.0 kg0.1250 kg·m²10.96 kJ

The last column is the energy the motor has to put in before the first cut, and the energy the brake has to take out afterwards. Between a 250 mm and a 500 mm blade the figure rises sixteenfold at constant speed, and that is the reason large saws carry large motors.

Acceleration time on a 3 kW arbor

Staying with the 400 mm case: a 3 kW 2-pole motor rated near 3,500 rpm produces about 8.2 N·m, from 9,550 times power in kilowatts divided by speed. During run-up a Design B induction motor delivers well above rated torque, since its locked-rotor and breakdown characteristics are set by the NEMA design letter system [10]. With a mean accelerating torque of twice rated, about 16.4 N·m, the train needs 0.058 kg·m² x 366.5 rad/s / 16.4 N·m to reach full speed, which works out at roughly 1.3 seconds.

Replace direct-on-line starting with a star-delta starter and the starting torque falls to about a third. The same train then needs close to four seconds, and if the load torque at low speed exceeds the reduced torque the motor stalls and never completes the transition. High-inertia blades are where star-delta hurts most, and it still gets specified because it is the cheap option.

Inertia belongs to the machine and torque belongs to the motor, and the acceleration time is set by the ratio between them. If that time matters, change the starting method or the rotor inertia, not the kilowatt rating. A 4 kW motor of the same frame size brings very little extra accelerating torque, because most of the extra money went into the winding, not the rotor.

Stopping Is a Machine Requirement

No motor catalogue says how long a saw should take to stop. That figure comes from the machine standard and from the safety guidance built on it. On circular saw benches a braking device should bring the blade to rest within 10 seconds, and machines that run down for longer should have been retrofitted [1].

An unbraked motor is nowhere near ten seconds. With only bearing and windage losses opposing it, the 400 mm assembly described above coasts down over roughly 50 to 70 seconds depending on the losses assumed, five to seven times the limit. That gap is the reason braking counts as a machine function, sized together with the arbor.

Three ways to brake, and what each costs

  • DC injection into the winding. The drive or a dedicated module feeds direct current into the stator after the stop command, producing a stationary field that the rotor cuts. It is cheap, it has no wearing parts, and it spends the motor’s own thermal capacity instead of a friction lining. The blade alone in the 400 mm example stores about 4.1 kJ at 3,800 rpm; spread over 10 seconds that is only 410 W, which most windings absorb without complaint. At 500 mm and the same speed the figure is about 10 kJ, and there DC injection starts to heat the winding visibly.
  • Mechanical brake motor. A spring-applied, electrically released brake on the non-drive end, which stops the load whatever the winding temperature happens to be. The price is added inertia and axial length on the motor, plus a friction lining that wears and needs its gap checked.
  • A VFD ramp with DC injection at the end hands deceleration to the drive, which turns the stop time into a setting instead of a property of the rotating mass. It is the only one of the three that also gives speed control, and that matters on spindle shapers and on saws cutting more than one material.

The choice interacts with the frame. A brake motor of the same power is longer than the plain motor, and where the arbor is belt-driven from a fixed bracket that extra length can break the belt alignment. Vibration limits for machines of this size are defined in IEC 60034-14, so a millimetre of misalignment introduced at the pulley shows up as a measurable increase at the arbor [7]. Check the dimensional drawing before ordering, not after.

Dust Changes the Enclosure, Not the Winding

Wood dust blocks the cooling path, and in sufficient concentration it turns the air around the motor into a combustible atmosphere. One is a thermal problem, the other a question of protection class, and different parts of the specification answer each.

Ingress and the cooling path

A totally enclosed fan-cooled motor pulls its cooling air over the ribbed frame with an external fan, and that air is shop air: in a machining area it carries dust. An IP54 or IP55 enclosure keeps the winding dry and reasonably clean, but the fan cowl and the fins still collect a felt-like layer that insulates the frame from the very air meant to cool it [3]. The countermeasures are to duct clean air from outside the dust zone, or to fit an encapsulated winding and accept a lower continuous rating in still air.

Wide-belt sanders with integrated fan cooling put the motor inside the dust stream, and that is where this matters most. A general-purpose motor of the right power will run hot there and fail early, and the failure is usually reported as a motor quality problem.

When dust becomes an explosion hazard

Fine wood dust is a combustible dust. In the United States, the wood-processing requirements formerly in NFPA 664 are now chapters of NFPA 660, the consolidated combustible dust standard issued in 2025 [8]. In Europe the equivalent framework leads to zone classification, and a motor installed inside a dust zone needs a type of protection, which no IP number supplies: IEC 60079-31 covers equipment protected by enclosure and surface temperature limitation, with levels ta, tb and tc matching zones 20, 21 and 22 [6].

One detail in that standard matters specifically to woodworking, because so many spindles are inverter-fed: the 2022 edition added the overload and malfunction conditions for determining the temperature class of converter-fed rotating machines. A VFD-driven spindle in a dust zone therefore needs its temperature class assessed in the drive condition, not just at 50 Hz.

SituationEnclosure and protectionAdditional measure
Motor outside the dust zone, clean airIP54 or IP55, standard TEFCLEV at the machine, 14-month examination
Motor in dusty air but not a classified zoneIP55 minimum, encapsulated windingDucted clean cooling air, scheduled fin cleaning
Motor inside zone 22IEC 60079-31 protection level tcSurface temperature limit, documented dust layer
Motor inside zone 21 or 20Protection level tb or taUsually avoided by relocating the motor outside the zone

The health side is separate and does not care about the motor at all. Hardwood dust is a recognised carcinogen, and both hardwood and softwood carry workplace exposure limits, at 3 and 5 mg/m³ over an eight-hour reference period, with extraction required at the machine and examined by a competent person at least every 14 months [2]. A motor specification that ignores extraction has not solved the dust problem, only moved it.

Duty, Service Factor and the Efficiency Floor

Duty class rarely appears in a quotation, which is a problem, because it decides how long the motor lasts. A dust collector runs for the whole shift whether or not anyone is cutting, so it needs continuous duty; a CNC spindle in a nested-based manufacturing cell starts and stops dozens of times an hour and needs a duty class written for that cycle. IEC 60034-1 defines the duty types and the temperature-rise basis that goes with them, and a supplier who quotes a power figure without a duty type has not quoted a motor [3].

Service factor is the North American convention: a 1.15 service factor allows a short-term overload to 115 percent of rated output, provided the supply is at rated voltage and frequency. It is not a licence to run continuously at 115 percent, and it does not survive a 10 percent undervoltage on a long shop feeder. Where both conventions appear in a quotation, compare the temperature rise, not the service factor.

The efficiency floor and where it applies

Efficiency classes are defined in IEC 60034-30-1, which sets the IE1 to IE4 bands for line-operated induction motors across a defined power and pole range [4]. Above the regulated threshold, which in the European Union starts at 0.75 kW for three-phase motors, a machine builder sourcing for that market has little choice but to buy IE3 or better. Below that threshold, and on single-phase machines, the class is not enforced and the difference between a good and a poor motor shows up in temperature rise instead.

A motor running on a VFD is not covered by the same efficiency claim at every speed, so compare like with like. A small high-efficiency motor can also be physically longer than the cheap one it replaces, and on a compact machine that is a fit problem before it is an energy problem.

A Selection Sequence With Numbers

The sequence below runs from the cutting edge backwards to the nameplate. Followed in order, it avoids the mistakes that cost the most to correct.

  1. Fix the rim speed. Choose the working rim speed for the material, then read the spindle speed from v = pi x D x n / 60000 for the largest blade the machine will carry.
  2. Check the marked maximum. Confirm the blade’s marked speed exceeds the spindle speed, and confirm the smallest permitted blade is not below about 60 percent of the largest.
  3. Compute the inertia. Half the mass times the radius squared for each disc in the train, with the belt ratio squared applied wherever a disc turns at a different speed from the motor.
  4. Size the starting torque. Divide inertia times the speed change by the acceptable acceleration time to get the mean torque needed, then compare it with the breakdown torque of the candidate motor.
  5. Size the brake. Energy at stop is half the inertia times the square of angular velocity; divide by the required stop time to get the average power the brake must absorb.
  6. Set the enclosure and protection. IP55 as a floor, encapsulated windings if the cooling air is dusty, and an Ex rating if the motor sits inside a classified dust zone.
  7. Only now choose the power rating, from depth of cut, feed rate and material removal rate, with the duty class stated.

The earlier example, run through the sequence, settles into a 400 mm blade needing about 3,800 rpm, a train inertia near 0.058 kg·m², roughly 16 N·m of mean accelerating torque for a 1.3 second start, a brake able to absorb about 4 kJ, and IP55 with encapsulated windings. A 3 kW 2-pole motor meets it. A 3 kW 4-pole motor does not, whatever its nameplate says.

Six Mistakes That Reach the Shop Floor

  1. Sizing by kilowatts alone. Kilowatts describe thermal capacity. Two motors of the same rating can differ by a factor of two in breakdown torque and by more than that in rotor inertia.
  2. Fitting a smaller blade to a larger saw. The blade fits, the arithmetic does not: below about 60 percent of the design diameter the rim speed collapses and kickback risk rises.
  3. Star-delta starting on a direct-drive saw. One third of the starting torque turns a 1.3 second start into a four second start, and a heavy blade may not start at all.
  4. Mounting a general-purpose motor in the dust stream. Fins and fan cowl clog, the frame stops shedding heat, and the winding fails long before its rated life.
  5. Relying on run-down instead of a brake. The standard asks for ten seconds; an unbraked arbor takes about a minute.
  6. Comparing a universal-motor router with an induction spindle on price. The series motor is smaller and cheaper because it runs at 20,000 rpm with brushes that wear; the induction spindle costs more and runs for years between services.

Troubleshooting: Symptom, Cause, Action

SymptomMost likely causeWhat to check firstAction
Stalls or trips on startStarting torque below the breakaway torque of a heavy bladeBreakdown torque of the motor against computed needChange starting method, or use a motor with higher breakdown torque
Takes minutes to stopNo brake fitted, or brake gap out of adjustmentMeasured stop time against the 10 second limitFit or service the brake; check DC injection settings
Runs hot after an hourClogged fins and fan cowl, or ducted air blockedFrame temperature rise against ambient, fin conditionClean the cooling path, restore ducting, recheck duty
Burning smell with a cold frameOverload on the winding with poor heat rejectionCurrent per phase against nameplateReduce depth of cut or increase motor size
Vibration that grows over weeksBlade out of balance or arbor bearings wornVibration at the arbor with the blade removedBalance or replace the blade; inspect the arbor bearings
Frequent drive trips on a VFD spindleCurrent limit set below the cutting peaksDrive current limit and acceleration rampRaise the limit within motor rating, lengthen the ramp

Few of these rows are winding failures. Most woodworking motor complaints come down to starting duty, stopping duty, cooling path or balance, and all four are machine-level decisions taken before the motor is ordered. The fifth row is the one genuine bearing calculation: an arbor carrying a heavy blade through a belt drive puts a continuous overhung load on the motor bearing, and rating life under that load follows the standard rolling-bearing calculation, not the catalogue’s nominal hours [9].

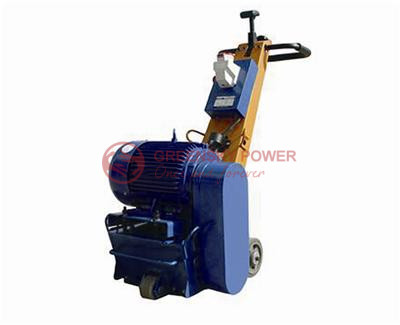

How Greensky Power Builds Woodworking Motors

We build the drive for machines of this kind: single-phase capacitor-start motors for the small shop, three-phase 2-pole and 4-pole induction motors from fractional to double-digit kilowatts, brake motors, and inverter-duty frames for spindle and feed applications. What a buyer needs from a supplier here is four decisions made in the right order, and a catalogue page contains none of them.

  • Speed set by the blade, not by the stock motor. We quote the spindle speed first, the pole count second, and the belt ratio alongside them.
  • Rated torque on its own is not enough, because the start is what fails first on a heavy arbor, so the breakdown figure is quoted with it.
  • Enclosure matched to the dust. IP55 as a floor, encapsulated windings where the cooling air is dirty, and an Ex variant where the installation requires it.
  • A brake motor is a different frame length, so duty and brake are stated together and the drawing is agreed before the machine bracket is welded.

For the electrical background, the three-phase motor and single-phase motor pages cover the construction differences, and brake motor advantages and limits covers the stopping options. Speed control is set out in variable speed motors and in VFD motor versus normal motor. Torque arithmetic is in how to calculate motor torque, efficiency classes in motor efficiency classes, and the general-purpose baseline in what a general-purpose motor is.

Before ordering, two reference pages save a revision: motor mounting positions for the IM code and shaft orientation, and reading a motor nameplate for the fields that decide interchangeability. Where the machine needs a compact, sealed or integrated drive rather than a foot-mounted motor, the route is a brushless DC motor or a custom electric motor built to the frame the machine can accept. A neighbouring application with the same dust and duty logic is the grinder motor in food equipment.

Specifying a motor for a saw, spindle or collector? Send the blade diameter, the required rim speed, the arbor inertia if you have it, and the dust zone, and we will return the frame, the pole count, the brake option and the enclosure in writing. Contact Greensky Power.

References

  1. Health and Safety Executive. (2014). Circular saw benches: Safe working practices, Woodworking Information Sheet No 16 (Revision 2). HSE. https://www.hse.gov.uk/pubns/wis16.pdf
  2. Health and Safety Executive. Wood dust: exposure limits, extraction and health surveillance. HSE Woodworking. https://www.hse.gov.uk/woodworking/wooddust.htm
  3. IEC. (2026). IEC 60034-1:2026, Rotating electrical machines – Part 1: Rating and performance, Edition 15.0. IEC Webstore. https://webstore.iec.ch/en/publication/89961
  4. IEC. (2025). IEC 60034-30-1:2025, Rotating electrical machines – Part 30-1: Efficiency classes of line operated AC motors (IE code). IEC Webstore. https://webstore.iec.ch/en/publication/91195
  5. IEC. (2020). IEC 60034-5:2020, Rotating electrical machines – Part 5: Degrees of protection provided by the integral design of rotating electrical machines (IP code) – Classification, Edition 5.0. IEC Webstore. https://webstore.iec.ch/en/publication/64224
  6. IEC. (2022). IEC 60079-31:2022, Explosive atmospheres – Part 31: Equipment dust ignition protection by enclosure “t”, Edition 3.0. IEC Webstore. https://webstore.iec.ch/en/publication/32540
  7. IEC. (2018). IEC 60034-14:2018, Rotating electrical machines – Part 14: Mechanical vibration of certain machines with shaft heights 56 mm and higher – Measurement, evaluation and limits of vibration severity, Edition 4.0. IEC Webstore. https://webstore.iec.ch/en/publication/59889
  8. National Fire Protection Association. (2025). NFPA 660, Standard for Combustible Dusts and Particulate Solids, 2025 edition, incorporating the former NFPA 664 wood processing requirements. NFPA. https://www.nfpa.org/660
  9. ISO. (2007). ISO 281:2007, Rolling bearings – Dynamic load ratings and rating life, Edition 2. ISO. https://www.iso.org/standard/38102.html
  10. National Electrical Manufacturers Association. (2021). ANSI/NEMA MG 1, Motors and Generators: design letters A, B, C and D and their locked-rotor and breakdown torque characteristics. ANSI Webstore. https://webstore.ansi.org/standards/nema/ansinemamg2021
  11. Health and Safety Executive. Wood dust: controlling the risk, Woodworking Information Sheet No 23. HSE. https://www.hse.gov.uk/pubns/wis23.htm
