Top 15 Gear Motor Manufacturers and Suppliers in China
Quick Answer
China hosts over 3,000 gear motor manufacturers, with the top 15 suppliers controlling approximately 45% of export volume. The leading manufacturers—Greensky Power, Kinmore Motor, Ningbo Leison Motor, and Xiamen Dazhen Motor—distinguish themselves through IEC 60034-compliant efficiency ratings (IE2–IE4), ISO 9001 quality systems, and full OEM/ODM customization capabilities. When sourcing gear motors from China, prioritize suppliers with verifiable CE/RoHS certifications, documented torque-density specifications, and minimum order quantities (MOQ) that align with your production schedule. Chinese gear motors typically cost 30–50% less than European equivalents while meeting the same NEMA MG 1 and IEC 60034 performance benchmarks, making them the preferred choice for global B2B buyers in robotics, industrial automation, and electric vehicle applications.
What Is a Gear Motor?
A gear motor is an integrated electromechanical device that combines an electric motor (AC or DC) with a gearbox (also called a gear reducer) in a single compact unit. The gearbox reduces the motor’s rotational speed while proportionally increasing its output torque, allowing the assembly to deliver high torque at low RPM—exactly what most industrial applications require. According to the International Energy Agency’s “Walking the Torque” report, electric motor-driven systems account for over 53% of global electricity consumption, and gear motors represent a significant and growing segment of that total.
Key components of a gear motor include:
- Electric motor — Provides the primary rotational power (AC induction, DC brushed, or brushless DC)
- Gear train — Reduces speed and multiplies torque through spur, helical, bevel, worm, or planetary gear configurations
- Housing — Cast iron or aluminum enclosure providing structural integrity and heat dissipation
- Bearings — Support the output shaft; SKF bearing life calculations are the industry standard for predicting service life
- Lubrication system — Grease-filled (sealed for life) or oil-bath lubrication for continuous-duty applications
How Gear Motors Work: Step-by-Step Principle
Understanding the operating principle of a gear motor helps B2B buyers evaluate supplier specifications more critically. Here is the step-by-step power transmission chain:
Step 1: Electrical Input
AC power (single-phase 110/220V or three-phase 380/440V) or DC power (12V/24V/48V) is supplied to the motor’s stator windings. The input current creates a magnetic field that interacts with the rotor to generate rotational motion.
Step 2: Motor Shaft Rotation
The electromagnetic interaction produces torque at the motor shaft, typically at high speed (1,400–3,500 RPM for AC motors; 3,000–10,000 RPM for DC motors). This speed is far too high for most industrial applications, which is where the gearbox becomes essential.
Step 3: Gear Reduction
The motor shaft drives the input gear of the gearbox. Through a series of gear meshes (one or more stages), the rotational speed is reduced by the gear ratio (i). For example, a 3-stage helical gearbox with a ratio of 100:1 reduces 1,400 RPM input to 14 RPM output.
Step 4: Torque Multiplication
As speed decreases, torque increases proportionally. The fundamental relationship is:
T_output = (T_motor × i × η_gearbox)
Where T is torque (N·m), i is the gear ratio, and η is the gearbox efficiency (typically 90–97% per stage). A motor producing 2 N·m of torque with a 100:1 ratio and 90% gearbox efficiency yields 180 N·m at the output shaft.
Step 5: Load Delivery
The output shaft delivers the reduced-speed, high-torque rotational power to the application—whether that is a conveyor belt, a lifting mechanism, a packaging machine, or a robotic joint. The U.S. DOE’s Energy Conservation Standards require that gear motors sold in the U.S. meet specific efficiency benchmarks, with IE4 becoming mandatory for mid-range motors starting June 1, 2027.
Gear Motor Types: Feature Comparison Table
Before evaluating specific manufacturers, it is important to understand the four primary gear motor architectures available from Chinese suppliers. Each type has distinct efficiency characteristics, torque density, and application fit.
| Feature | Spur Gear Motor | Helical Gear Motor | Worm Gear Motor | Planetary Gear Motor |
|---|---|---|---|---|
| Gear Efficiency | 90–95% | 94–98% per stage | 50–90% (ratio-dependent) | 95–97% per stage |
| Torque Density | Low–Medium | Medium–High | Medium | High (compact) |
| Noise Level | Moderate | Low (smooth mesh) | Low–Moderate | Very Low |
| Backlash | 5–15 arcmin | 3–10 arcmin | Self-locking (no backlash) | 1–6 arcmin |
| Max Ratio (single stage) | 5:1–8:1 | 5:1–10:1 | 5:1–80:1 | 3:1–10:1 |
| Cost Range | $ | $$ | $$ | $$$ |
| Typical Applications | Conveyors, simple drives | Industrial automation, pumps | Lifting, gates, food machinery | Robotics, precision positioning, AGVs |
| Self-Locking | No | No | Yes (ratio ≥ 30:1) | No |
Sources: Efficiency data based on Siemens SIMOGEAR technical specifications and IEC 60034-2-1 testing methods.
Engineering Data: Efficiency Standards, Temperature Limits, and Torque Formulas
When comparing Chinese gear motor suppliers, three engineering parameters matter most: efficiency class, thermal limits, and torque output. These are governed by international standards that all reputable manufacturers must comply with.
IEC 60034-30-1 Efficiency Classes
The IEC 60034-30-1 standard defines four (soon five) efficiency classes for electric motors. The U.S. DOE 2027 rule will require IE4 for mid-range motors (100–250 hp), aligning U.S. standards with the EU’s existing IE4 mandate.
| IE Class | Designation | Example Efficiency (4-pole, 1.5 kW, 50 Hz) | Regulatory Status |
|---|---|---|---|
| IE1 | Standard Efficiency | 77.2% | Phased out in EU and China for most ratings |
| IE2 | High Efficiency | 82.8% | Minimum in many developing markets |
| IE3 | Premium Efficiency | 85.3% | Current U.S. baseline (NEMA Premium); EU minimum since 2021 |
| IE4 | Super-Premium Efficiency | 88.2% | U.S. DOE mandatory June 2027 for 100–250 hp; EU mandatory for 75kW+ |
| IE5 | Ultra-Premium Efficiency | ~91% (target) | Not yet mandated; under development by IEC |
Source: IEC 60034-30-1:2014 efficiency values; NEMA MG 1 Part 12 alignment confirmed by the NEMA-IEC harmonization agreement.
IEC 60034-1 Insulation Class Temperature Limits
The thermal performance of a gear motor’s windings directly affects its service life. Per IEC 60034-1, insulation classes define the maximum allowable temperature rise above ambient (40°C):
| Insulation Class | Max Temperature (°C) | Temperature Rise Limit (K) | Typical Application |
|---|---|---|---|
| Class A | 105°C | 60 K | Obsolete; legacy equipment only |
| Class E | 120°C | 75 K | Small appliances, low-duty motors |
| Class B | 130°C | 80 K | Standard industrial motors |
| Class F | 155°C | 105 K | Most common; gear motors for continuous duty |
| Class H | 180°C | 125 K | High-temperature environments, heavy-duty gear motors |
Reputable Chinese manufacturers such as Greensky Power specify Class F insulation as standard, with Class H available for high-ambient-temperature applications like steel mills and mining equipment.
Essential Torque and Efficiency Formulas
For B2B buyers evaluating gear motor specifications, these formulas are essential for verifying supplier claims:
1. Output Torque from Gear Ratio:
T_output = (9550 × P_motor × η_gearbox) / n_output
Where: T_output = output torque (N·m), P_motor = motor power (kW), η_gearbox = gearbox efficiency (decimal), n_output = output speed (RPM)
2. Gear Ratio Calculation:
i = n_motor / n_output
3. Overall System Efficiency:
η_total = η_motor × η_gearbox × η_coupling
For a typical IE3 motor (η = 0.853) with a 2-stage helical gearbox (η = 0.96² = 0.922) and coupling (η = 0.99): η_total = 0.853 × 0.922 × 0.99 = 0.779 (77.9%)
4. SKF Bearing Life (L10h):
L10h = (10⁶ / 60n) × (C/P)^p × a_SKF
Where: C = basic dynamic load rating (kN), P = equivalent dynamic load (kN), p = 3 for ball bearings or 10/3 for roller bearings, a_SKF = life adjustment factor per SKF rating life methodology
5. Service Factor (SF) per NEMA MG 1:
SF = Rated Load / Actual Load
NEMA motors typically carry SF = 1.15, meaning a 1 kW motor can safely handle 1.15 kW continuously. IEC motors use SF = 1.0, so buyers must size IEC motors to the actual load without derating margin.
Top 15 Gear Motor Manufacturers and Suppliers in China
China’s gear motor industry is projected to reach ¥330 billion ($46.2 billion) by 2026, driven by robotics, electric vehicles (EVs), and smart manufacturing. The following 15 manufacturers represent the strongest combination of production capability, quality certification, export experience, and technical customization—evaluated against criteria aligned with international motor standards.
Key Evaluation Criteria
| Criterion | Weight | What to Verify |
|---|---|---|
| Certifications | 25% | ISO 9001, CE, RoHS, UL, ATEX (if applicable) |
| Production Scale | 20% | Annual output, factory area, workforce size |
| R&D / Customization | 20% | OEM/ODM capability, engineering team, patent count |
| Export Experience | 15% | Years exporting, target markets, trade show presence |
| Standards Compliance | 10% | IEC 60034, NEMA MG 1, GB 18613 adherence |
| Lead Time & Logistics | 10% | Standard lead times, MOQ flexibility, warehousing |

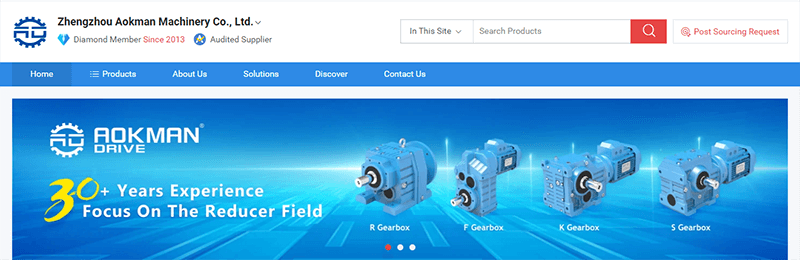

1. Zhengzhou Aokman Machinery Co., Ltd.
Established: 1982 | Location: Zhengzhou, Henan | Certifications: ISO 9001
Aokman is a veteran gearbox manufacturer with over 40 years of experience specializing in heavy-duty industrial gear solutions. Their product portfolio spans shaft-mounted, bevel, worm, planetary, cycloidal, and custom gearboxes for metallurgical, steel, mining, and pulp-and-paper applications. Aokman’s competitive advantage lies in their ability to engineer large-scale custom gearboxes for extreme-load environments—a capability that few Chinese manufacturers can match. Their export markets span South America, the Middle East, North America, and Asia.
Main Products: Industrial gearboxes (shaft-mounted, bevel, worm, planetary, cycloidal), gear motors, helical gearboxes
Best For: Heavy industry, mining, steel mills, sugar mills
2. Ningbo Leison Motor Co., Ltd.
Established: 2006 | Location: Ningbo, Zhejiang | Certifications: CE, RoHS
Leison Motor offers one of the broadest DC motor product ranges among Chinese suppliers, covering brushed DC motors (6–130mm diameter, 0.1–1500W), DC spur gear motors (12–104mm), DC planetary gear motors, brushless DC motors (24–110mm, 1–2000W), and stepper motors (NEMA 8–43). Their AC gear motor line covers 3–3700W. Leison’s strength is in serving diverse industries from home appliances to industrial automation with flexible MOQ and competitive pricing. They also produce high-torque DC gear motors for lifting and conveyor applications.
Main Products: DC brushed/brushless motors, DC spur and planetary gear motors, stepper motors, AC gear motors
Best For: Consumer electronics, home appliances, automotive, robotics, industrial automation

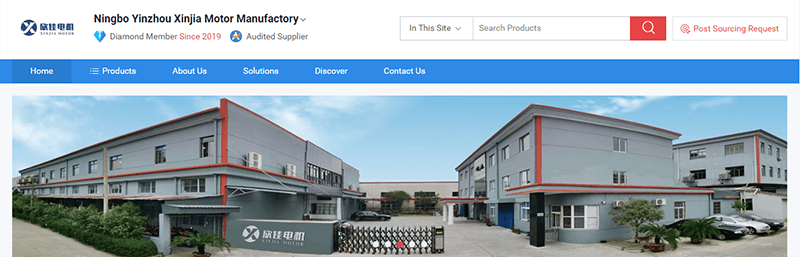

3. Ningbo Yinzhou Xinjia Motor Manufactory
Established: 1997 | Location: Ningbo, Zhejiang | Factory Area: ~50,000 m² | Workforce: ~300
Xinjia Motor has built a strong reputation in kitchen appliance motors, producing gear motors for juicers, ice crushers, meat grinders, and coffee bean grinders. Their 50,000 m² facility and 300-person workforce give them the scale to handle high-volume OEM/ODM orders. They also manufacture single-phase series motors and gear reduction motors for electric tools such as lawn mowers. Xinjia’s OEM/ODM service accepts customer samples, drawings, and custom designs.
Main Products: Single-phase motors, gear reduction motors, kitchen appliance motors
Best For: Kitchen appliances, food processing equipment, electric tools

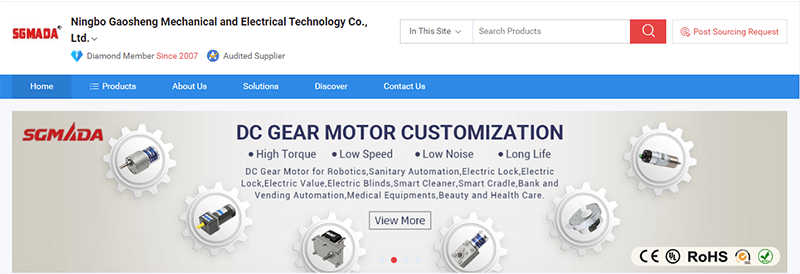

4. Ningbo Gaosheng Mechanical and Electrical Technology Co., Ltd.
Established: 2001 | Location: Ningbo, Zhejiang | Certifications: ISO 9001
Gaosheng specializes in small-to-medium DC gear motors, offering spur, planetary, worm, and synchronous gear motor configurations. Their product range also includes single-phase motors, induction motors, and brushless motors. With an experienced R&D team capable of developing new models based on customer requirements, Gaosheng serves the home appliance, office equipment, toy, vending machine, and heating equipment markets. Their ISO 9001 certification ensures consistent quality control across their product line.
Main Products: DC gear motors, planetary gear motors, worm gear motors, synchronous motors, induction motors, BLDC motors
Best For: Home/office appliances, vending machines, amusement equipment, lighting, heaters

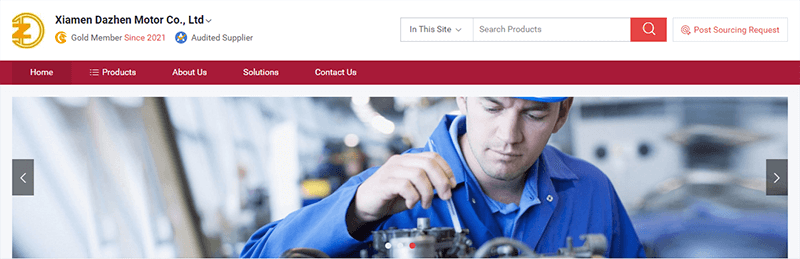

5. Xiamen Dazhen Motor Co., Ltd.
Established: 1984 | Location: Xiamen, Fujian | Factory Area: 30,000 m² | Certifications: ISO 9001, ISO 14001, RoHS, Halogen-Free
Dazhen Motor is one of the most technically advanced manufacturers on this list, recognized as a National High-Tech Enterprise and National Torch Program participant. Their 40+ years of experience in precision micro motors serves diverse industries including medical equipment, digital products, automotive electronics, and financial equipment. Dazhen’s export reach spans Japan, South Korea, the United States, Mexico, Israel, India, Russia, and Southeast Asia. Their ISO 14001 and RoHS/Halogen-Free certifications make them ideal for environmentally regulated markets.
Main Products: Micro motors, magnetic heads, hydro-generators, stamped components, precision gear motors
Best For: Medical devices, digital products, automotive electronics, IT equipment, financial equipment

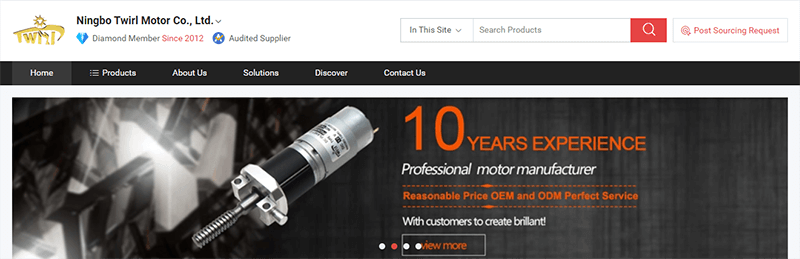

6. Ningbo Twirl Motor Co., Ltd.
Location: Ningbo, Zhejiang | Certifications: CCC, CE, RoHS
Twirl Motor focuses on small-diameter planetary gear motors (16mm–60mm) for applications requiring compact, precision drive solutions. Their use of Solidworks, PRO/E, and Photoview design software combined with CNC lathes, die-casting machines, CNC machining centers, and engraving machines enables tight tolerances and consistent quality. Twirl’s niche focus on small planetary gear motors makes them an excellent partner for smart home devices and personal care appliances.
Main Products: Small planetary gear motors (16–60mm diameter)
Best For: Smart home devices, personal care appliances, compact precision drives

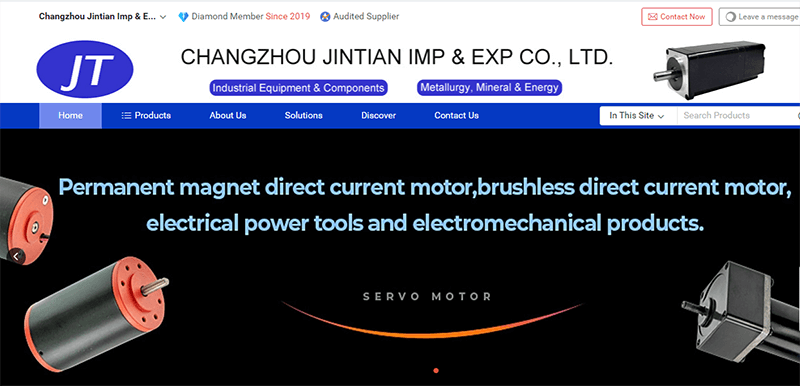

7. Jintian Imp. & Exp Co., Ltd.
Established: 2008 | Location: Ningbo, Zhejiang | Certifications: ISO 9001
Jintian functions as both a manufacturer and international trade facilitator, offering brushless DC motors, brushed DC motors, stepper motors, and gearbox motors. Their ISO 9001 certification and focus on efficient procurement and supply chain solutions make them a good partner for buyers who need consolidated sourcing across multiple motor types. Jintian’s strength lies in streamlining the export process for international buyers unfamiliar with Chinese manufacturing logistics.
Main Products: BLDC motors, DC motors, stepper motors, gearbox motors
Best For: Multi-product sourcing, supply chain consolidation, international trade

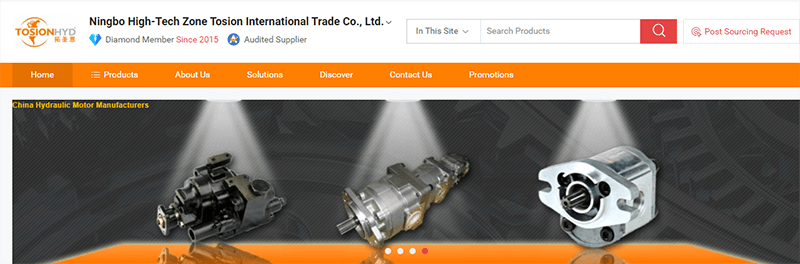

8. Ningbo High-Tech Zone Tosion International Trade Co., Ltd.
Experience: 15+ years | Location: Ningbo, Zhejiang | Factories: 6 | Certifications: ISO 9001
Tosion specializes in hydraulic motors and heavy-duty industrial drive components, including Poclain IAM/NHM/JMDG orbital motors, piston pumps and motors, vane pumps, and gear pumps. With six factories in Ningbo, they serve construction machinery, marine equipment, metallurgy, mining, and plastic machinery industries. Tosion is the go-to supplier for buyers needing hydraulic motor solutions rather than standard electric gear motors.
Main Products: Hydraulic motors, piston pumps, vane pumps, gear pumps and motors
Best For: Construction machinery, marine equipment, mining, metallurgy, plastic machinery

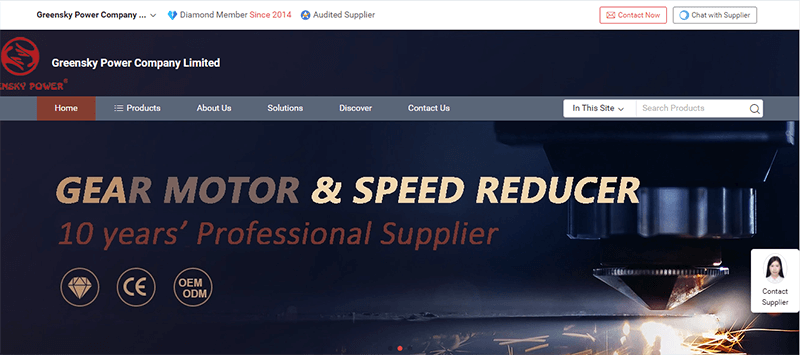

9. Greensky Power Company Limited
Established: 2010 (Los Angeles), relocated to Hangzhou 2011 | Location: Hangzhou, Zhejiang | Certifications: ISO 9001:2015, CE, Energy Efficiency
Greensky Power is a vertically integrated gear motor manufacturer with four specialized subsidiaries: Jinhua Greensky (stepper motors and BLDC controllers), Shaoxing Fuhua Pump (micro AC motors and gearboxes), Sky Magnetic Tech (torque sensors), and United Motion Inc. (North American pre- and after-sales service). Their 2022 production capacity reached 1.5 million gear motors and 4 million controllers annually. Greensky’s R&D team includes 8 PhD-level engineers, and the company reinvests 10% of annual revenue into research and development.
Greensky’s product portfolio spans AC right-angle gear motors, 24V DC brushless gear motors, motor variators, stainless steel gearboxes, and single-phase motors. Their products comply with IEC 60034 efficiency standards and are tested individually at 100% before shipment. Greensky has exhibited at the Vietnam Industrial Expo, Germany SPS IPC Drives (2017, 2018, 2019), and Thailand Manufacturing Expo.
Main Products: AC/DC gear motors, worm gearboxes, helical gear motors, motor variators, stainless steel gearboxes, BLDC motors, stepper motors, controllers
Best For: Industrial automation, e-bikes, lawn mowers, BLDC pumps, pellet boilers, solar tracking, food machinery, conveyor systems

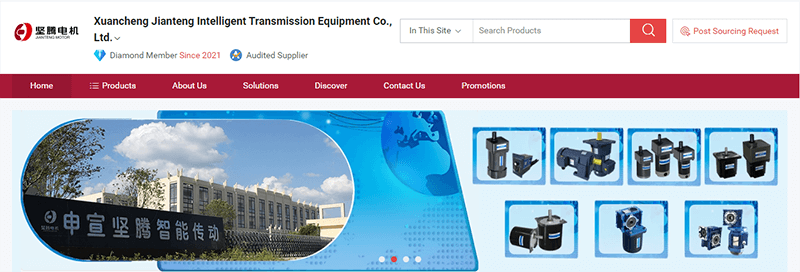

10. Xuancheng Jianteng Intelligent Transmission Equipment Co., Ltd.
Location: Xuancheng, Anhui | Certifications: ISO 9001, CCC, CE, RoHS
Jianteng manufactures AC and DC gear motors spanning 6W–3600W, alongside NMRV 025–150 worm gear motors and stepper motors. Their integrated R&D, production, and manufacturing operation includes advanced machining centers focused on product stability and quality. Jianteng’s wide power range and comprehensive certification coverage (CCC, CE, RoHS) make them suitable for buyers needing compliance across multiple regulatory regimes.
Main Products: AC/DC gear motors (6W–3600W), NMRV worm gear motors, stepper motors, gear processing
Best For: General industrial automation, multi-standard compliance requirements
11. Fangda Electric Machine Co., Ltd.
Established: 1980 | Location: Zhejiang | Standards: IEC compliant
With 45+ years of manufacturing experience, Fangda produces a comprehensive range of three-phase (Y/Y2/YS series) and single-phase (YC/YL/JY/YY series) asynchronous motors. Their specialized lines include YCT electromagnetic speed-regulating motors, YEJ electromagnetic brake motors, YVF2 variable-frequency motors, YB2 explosion-proof motors, and YD dual-speed motors. Fangda exports to 50+ countries across Eastern Europe, South America, Southeast Asia, the Middle East, and Africa. Their self-developed R&D center enables extensive motor customization.
Main Products: Three-phase/Single-phase asynchronous motors, brake motors, explosion-proof motors, variable-frequency motors, dual-speed motors
Best For: General industrial motors, explosion-proof applications, speed-regulated drives, global multi-market export
12. Nanjing FASTECH Electric Corp.
Established: Factory built 2010 (20+ years engineering experience) | Location: Nanjing, Jiangsu | Export Ratio: ~95%
FASTECH is a high-export-ratio manufacturer with 95% of products shipped to the United States, Australia, and Europe. Their product range includes AC/DC motors and gear motors, brushless DC motors, servo motors, stepper motors, and linear actuators. FASTECH’s OEM clients include CLIPSAL, FASCO, and MARATHON (Regal Beloit Group)—major Western brands that validate their quality standards. Their one-stop service from mold development to mass production is ideal for buyers needing custom-designed motor solutions.
Main Products: AC/DC motors and gear motors, BLDC motors, servo motors, stepper motors, linear actuators
Best For: HVAC systems, fans, pumps, appliances; buyers requiring Western-brand OEM equivalent quality

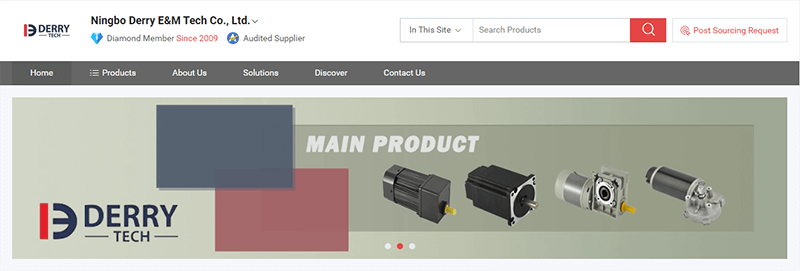

13. Ningbo Derry E&M Tech Co., Ltd.
Location: Ningbo, Zhejiang | Certifications: CE, UL | Technology Source: Germany
Derry combines German engineering technology with Chinese manufacturing efficiency to produce PMDC motors, brushless motors, stepper motors, AC/DC gear motors, synchronous motors, and brushless servo motors. Their CAD/CAM mold tooling center and in-house testing center enable full OEM/ODM service. Derry’s UL certification gives them access to the North American market, and their German technology heritage ensures precision engineering standards.
Main Products: PMDC motors, BLDC motors, stepper motors, AC/DC gear motors, synchronous motors, brushless servo motors
Best For: HVAC, pumps, automatic transmission systems, appliances; North American (UL) and European (CE) markets

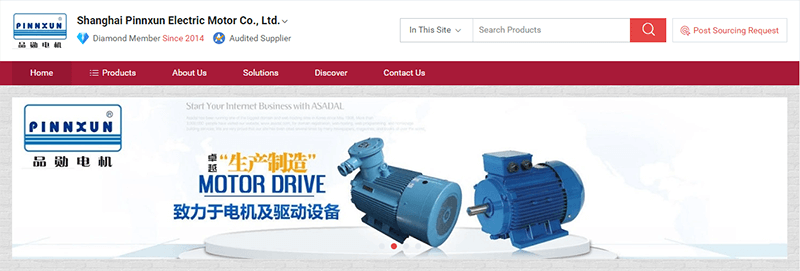

14. Shanghai Pinnxun Electric Motor Co., Ltd.
Experience: 20+ years | Location: Shanghai | Standards: IEC compliant
Pinnxun offers one of the most comprehensive motor portfolios on this list, spanning low-voltage motors (Y/Y2 fan-pump motors, YX3 high-efficiency motors, YPT variable-frequency motors, YD/YDT dual-speed motors, YXF high-temperature fire-smoke exhaust motors, YR wound-rotor motors, YZR crane motors, NEMA standard motors, GOST standard motors), high-voltage motors (Y2 compact, Y/YKK squirrel-cage, YR/YRKK wound-rotor, YKS/YRKS water-cooled, T series large synchronous), explosion-proof motors (YB/YB2, YBPT variable-frequency), and motor control systems (control cabinets, soft starters, encoders, VFDs).
Main Products: Low/high-voltage AC motors, explosion-proof motors, crane motors, NEMA/GOST standard motors, motor control systems
Best For: Large-scale industrial projects, power plants, mining, crane/lifting, fire safety systems, multi-standard (IEC/NEMA/GOST) requirements

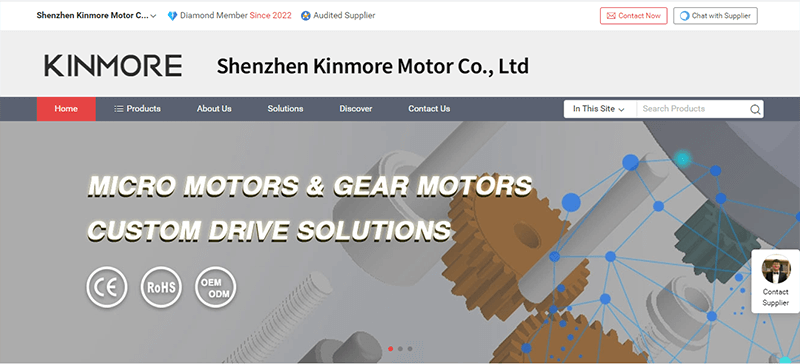

15. Shenzhen Kinmore Motor Co., Ltd.
Established: 1998 | Location: Shenzhen, Guangdong | Certifications: ISO/TS 16949, ISO 9001, ISO 14001, CE, REACH, RoHS | Annual Capacity: 90 million units
Kinmore Motor is the highest-volume manufacturer on this list, with two factories producing 90 million units annually across 100+ motor series (8mm–80mm diameter). Their equipment is sourced from Japan, Germany, and the United States (HEXAGON CMM, SODICK WEDM, WAHLI hobbing machines). Kinmore’s ISO/TS 16949 automotive certification is a significant differentiator, qualifying them as a Tier 1 automotive supplier. They serve automotive parts, home appliances, industrial tools, personal care, security/locks, valves, and medical device markets.
Main Products: DC motors, DC gear motors, BLDC motors, micro motors (8–80mm), drive solutions
Best For: High-volume automotive applications, consumer electronics, medical devices, security systems
Summary Comparison of Top 5 Manufacturers
| Manufacturer | Key Strength | Best Product Category | Top Certifications | Min MOQ |
|---|---|---|---|---|
| Greensky Power | Full-system integration + NA support | AC/DC gear motors, BLDC | ISO 9001, CE | 1 unit (sample) |
| Kinmore Motor | Ultra-high volume (90M/yr) | Micro DC gear motors | ISO/TS 16949, CE, RoHS | 1,000 units |
| Xiamen Dazhen | Precision micro motors | Precision micro gear motors | ISO 9001, ISO 14001, RoHS | 500 units |
| Nanjing FASTECH | 95% export ratio, brand OEM | AC/DC gear motors, servo | IEC compliant | 500 units |
| Aokman Machinery | Heavy-duty industrial | Large industrial gearboxes | ISO 9001 | 1 unit |
Best Applications for Chinese Gear Motors
Chinese gear motor manufacturers serve virtually every industrial sector. Based on the supplier capabilities above, here are the primary application categories and the best-fit manufacturers for each:
1. Industrial Automation and Conveyor Systems
Helical and right-angle gear motors are the workhorses of conveyor systems, packaging machines, and material handling equipment. Look for IE3+ efficiency, continuous-duty ratings (S1 per IEC 60034-1), and Class F insulation. Recommended suppliers: Greensky Power, Fangda Electric, Pinnxun Electric.
2. Robotics and Precision Positioning
Planetary gear motors with low backlash (≤6 arcmin) and high torque density are essential for robotic joints, AGVs, and CNC equipment. BLDC motors paired with planetary gearboxes offer the best combination of precision and efficiency. Recommended suppliers: Xiamen Dazhen, Ningbo Twirl, Kinmore Motor.
3. Electric Vehicles and E-Mobility
BLDC gear motors with high power-to-weight ratios drive e-bikes, electric scooters, and small EVs. ISO/TS 16949 certification is critical for automotive applications. Recommended suppliers: Kinmore Motor (TS 16949 certified), Greensky Power (e-bike specialist).
4. Food Processing and Packaging
Stainless steel gearboxes with IP65+ protection and food-grade lubricants are required for washdown environments. Worm gear motors with self-locking capability provide safety for lifting and tilting mechanisms. Recommended suppliers: Greensky Power, Xuancheng Jianteng.
5. HVAC and Pump Systems
IE3/IE4 high-efficiency motors with variable-frequency drive (VFD) compatibility reduce energy consumption in fans, blowers, and pumps. The DOE estimates that motor-driven systems account for nearly half of all U.S. industrial electricity use. Recommended suppliers: Nanjing FASTECH, Ningbo Derry, Shanghai Pinnxun.
Step-by-Step Gear Motor Supplier Selection Guide
Follow this structured process to select the right Chinese gear motor manufacturer for your application:
Step 1: Define Technical Requirements
Document your required output torque (N·m), output speed (RPM), power rating (W or kW), voltage (V), duty cycle (S1–S10 per IEC 60034-1), and environmental conditions (temperature, humidity, IP rating). Calculate the required gear ratio using i = n_motor / n_output and verify that the output torque meets your application’s peak load with a 1.5× safety factor.
Step 2: Shortlist 3–5 Suppliers
From the list above, select manufacturers whose product categories match your requirements. Prioritize those with relevant certifications (CE for Europe, UL for North America, ISO/TS 16949 for automotive) and demonstrated export experience to your target market.
Step 3: Request Technical Datasheets
Ask each supplier for complete datasheets including: rated torque, rated speed, gear ratio options, efficiency class (IE1–IE4), insulation class, IP rating, noise level (dB), weight, and dimensional drawings. Cross-check torque claims using the formula T_output = (9550 × P × η) / n.
4: Evaluate Sample Quality
Order 3–5 samples for testing. Measure actual torque output using a dynamometer, verify noise levels in a soundproof chamber, and run a 500-hour continuous-duty test to validate thermal performance. Check that measured efficiency falls within the IEC 60034-2-1 tolerance band (±15% of (1-η) for motors ≤150 kW).
Step 5: Audit Manufacturing Quality
If your annual volume exceeds 10,000 units, conduct a factory audit (either in-person or via third-party inspection). Verify ISO 9001 documentation, check incoming material inspection records, review final test procedures (100% testing is standard at top-tier suppliers like Greensky Power), and inspect calibration records for test equipment.
Step 6: Negotiate Commercial Terms
Standard MOQ for Chinese gear motor manufacturers ranges from 100–1,000 units, but most suppliers offer sample orders (1–10 units) at a premium. Negotiate payment terms (30% deposit, 70% before shipment is standard), lead time (typically 25–35 days for standard products, 45–60 days for custom designs), and warranty terms (1 year minimum is industry standard; 2–3 years for premium suppliers).
Common Sourcing and Engineering Mistakes
B2B buyers frequently make these avoidable errors when sourcing gear motors from China:
| Mistake | Impact | Correct Approach |
|---|---|---|
| Selecting motor by rated power only, ignoring torque-speed curve | Motor cannot deliver required torque at operating speed | Always request the full torque-speed curve and verify torque at your application’s operating RPM |
| Overlooking service factor differences (NEMA 1.15 vs IEC 1.0) | IEC motor overheats under continuous peak load | Size IEC motors to actual load without derating; add 15% margin if switching from NEMA spec |
| Ignoring gearbox efficiency losses in total system efficiency | System efficiency 15–25% lower than expected | Calculate η_total = η_motor × η_gearbox; account for 3–10% loss per gear stage |
| Choosing worm gears for high-duty-cycle applications | Excessive heat generation, premature wear, efficiency as low as 50% | Use helical or planetary gears for continuous duty; reserve worm gears for intermittent or self-locking applications |
| Not specifying insulation class for high-ambient environments | Winding insulation failure at ambient >40°C | Specify Class H (180°C) for ambient temperatures above 50°C; derate motor by 1% per 100m above 1,000m altitude |
| Skip sample testing for large orders | Mass-production defects discovered after full shipment | Always test 3–5 samples with dynamometer and thermal testing before placing volume orders |
Gear Motor Troubleshooting Guide
| Problem | Likely Cause | Solution |
|---|---|---|
| Excessive noise and vibration | Worn gear teeth, misaligned coupling, or bearing failure | Inspect gear mesh for wear patterns; check shaft alignment with dial indicator; replace bearings per SKF L10h calculation |
| Output torque lower than rated | Insufficient motor power, gearbox efficiency degradation, or incorrect gear ratio | Verify motor voltage and current; measure actual gearbox efficiency; recalculate gear ratio using i = n_motor / n_output |
| Motor overheating (thermal trip) | Overload, inadequate ventilation, or wrong insulation class for ambient | Measure actual load current vs. nameplate; verify ambient temperature ≤40°C; upgrade to Class H insulation if needed |
| Gearbox oil leakage | Worn seals, overfilling, or breather vent blockage | Replace shaft seals; fill oil to specified level (sight glass); clean or replace breather vent |
| Output shaft won’t turn (motor runs) | Gear tooth breakage, seized bearing, or foreign object in gear train | Disassemble gearbox; inspect for broken teeth and bearing condition; flush and relubricate |
| Motor starts but gearbox output is erratic | Keyway wear, loose coupling, or intermittent gear engagement | Inspect key and keyway for wear; tighten coupling bolts; check for gear tooth damage |
| Excessive current draw at startup | High starting torque requirement or insufficient gear ratio reduction | Use a motor with higher starting torque (NEMA Design C) or increase gear ratio; consider VFD soft-start |
| Premature bearing failure | Inadequate lubrication, contamination, or overloaded bearing | Follow relubrication intervals per manufacturer; verify bearing load using SKF L10h formula; upgrade to sealed bearings if contamination is present |
FAQ
What is the difference between a gear motor and a regular motor?
A regular electric motor produces high rotational speed (1,400–3,500 RPM for AC, 3,000–10,000 RPM for DC) with relatively low torque. A gear motor integrates a gearbox that reduces the output speed while proportionally increasing torque. For example, a 1.5 kW motor at 1,400 RPM produces approximately 10.2 N·m of torque; with a 50:1 gearbox (95% efficiency), the gear motor outputs 28 RPM at 485 N·m—nearly 48× the torque at 1/50th the speed.
Which Chinese gear motor manufacturer offers the best customization?
For full OEM/ODM customization, Greensky Power and Nanjing FASTECH stand out. Greensky offers integrated motor + controller + sensor solutions with 8 PhD-level engineers and 10% revenue reinvestment in R&D. FASTECH provides one-stop service from mold development to mass production and serves as OEM for Western brands including Regal Beloit Group’s MARATHON line.
What certifications should I look for when importing gear motors from China?
At minimum, require ISO 9001 (quality management), CE (European market access), and RoHS (hazardous substance compliance). For North America, look for UL certification. For automotive applications, ISO/TS 16949 is mandatory. For environmentally regulated markets, ISO 14001 is a plus. For explosion-proof applications (mining, chemical), ATEX or IECEx certification is required. All reputable manufacturers should also comply with IEC 60034 efficiency standards and NEMA MG 1 if exporting to the United States.
How much does a gear motor cost from Chinese suppliers?
Pricing varies widely by type and power rating. Small DC spur gear motors (6–12mm) start at $2.80–$4.80 per unit (MOQ 100). Mid-range AC gear motors (25W–370W) range from $20–$100. Industrial planetary gear motors (500W–3kW) cost $150–$800. Large industrial gearboxes (10kW+) can exceed $2,000. Chinese gear motors typically cost 30–50% less than European equivalents (SEW-Eurodrive, Siemens, Nord) while meeting the same IEC efficiency standards.
What is the typical lead time for gear motors from China?
Standard (catalog) gear motors typically ship in 25–35 days. Custom-designed gear motors with modified shafts, mounting flanges, or gear ratios require 45–60 days. Suppliers in Guangdong and Zhejiang industrial clusters can often expedite urgent orders within 72 hours for an additional fee. Always confirm lead times in writing and build a 15% buffer into your production schedule.
Are Chinese gear motors as reliable as European or American brands?
When sourced from reputable manufacturers with proper certifications (ISO 9001, CE, UL), Chinese gear motors achieve comparable reliability to Western brands. The key is to verify compliance with IEC 60034 and NEMA MG 1 standards, request 100% individual testing (standard at top-tier suppliers like Greensky Power and Kinmore Motor), and conduct sample testing before volume orders. The IEA reports that motor system efficiency improvements of 10–15% are achievable globally, and Chinese manufacturers are increasingly producing IE4-class motors that match or exceed Western efficiency benchmarks.
Why Choose Greensky Power?
Among the 15 manufacturers profiled above, Greensky Power occupies a unique position in the Chinese gear motor market. Here is what differentiates Greensky from other suppliers:
1. Vertically Integrated Manufacturing: Greensky operates four specialized subsidiaries covering stepper motors and BLDC controllers (Jinhua Greensky), micro AC motors and gearboxes (Shaoxing Fuhua Pump), torque sensors (Sky Magnetic Tech), and North American service (United Motion Inc.). This vertical integration means buyers can source complete motion systems—including motors, gearboxes, controllers, and sensors—from a single supplier, reducing integration risk and lead time.
2. Engineering-Driven Culture: With 8 PhD-level engineers and 10% of annual revenue reinvested in R&D, Greensky approaches motor manufacturing from an engineering-first perspective rather than a pure cost-optimization model. Their advanced testing facilities include high-low temperature chambers, coordinate measuring machines (CMM), silent rooms, and dynamometers—equipment that many competing Chinese manufacturers lack.
3. 100% Individual Product Testing: Unlike manufacturers that perform batch sampling, Greensky tests every single motor before shipment. This 100% inspection rate ensures consistent quality and dramatically reduces the risk of receiving defective units in volume orders.
4. International Standards Compliance: All Greensky products are manufactured in compliance with IEC 60034 efficiency standards, CE certification, and ISO 9001:2015 quality management. Their AC and DC motors meet NEMA MG 1 performance benchmarks, and their stainless steel gearboxes are designed for food-grade and pharmaceutical washdown environments.
5. Global Trade Show Presence and Local Support: Greensky has exhibited at the Vietnam Industrial Expo, Germany SPS IPC Drives (2017, 2018, 2019), and Thailand Manufacturing Expo. For North American customers, United Motion Inc. provides local technical response, sample testing assistance, delivery coordination, and after-sales warranty support—eliminating the communication and timezone barriers that plague many China sourcing relationships.
6. Production Scale: With 1.5 million gear motors and 4 million controllers produced annually, Greensky has the capacity to serve both low-volume custom projects and high-volume OEM contracts. Their product range spans AC right-angle gear motors, 24V DC brushless gear motors, motor variators, bevel gearboxes, and single-phase motors—covering applications from industrial automation to high-torque lifting systems.
To request a quote or discuss your gear motor requirements, contact Greensky Power’s engineering team.
References
- International Electrotechnical Commission (IEC). IEC 60034-30-1:2014 — Efficiency classes of line operated AC motors. Available at: https://webstore.iec.ch/publication/67641
- National Electrical Manufacturers Association (NEMA). NEMA MG 1-2024 — Motors and Generators. Available at: https://www.nema.org/standards/view/motors-and-generators
- U.S. Department of Energy (DOE). Energy Conservation Standards for Electric Motors — Direct Final Rule (2023). Available at: https://www.energy.gov/sites/default/files/2023-05/em-ecs-dfr.pdf
- International Energy Agency (IEA). Walking the Torque: Energy-Efficiency Policy Opportunities for Electric Motor-Driven Systems. Available at: https://www.iea.org/reports/walking-the-torque
- SKF Group. Bearing Rating Life — Size Selection Based on Rating Life. Available at: https://www.skf.com/africa/en/products/bearings-units-housings/principles/bearing-selection-process/bearing-size/size-selection-based-on-rating-life/bearing-rating-life/
- Siemens AG. SIMOGEAR Geared Motors — Helical/Helical Bevel Gear Units Instructions. Available at: https://support.industry.siemens.com/cs/attachments/28679030/1FK7G_BE_0305_de_en_fr_it_es_sv.pdf
- ABB. Understanding the 2027 DOE Motor Standards. Available at: https://new.abb.com/news/detail/132268/understanding-the-2027-doe-motor-standards
- IEC 60034-1:2022. Rotating electrical machines — Part 1: Rating and performance (insulation classes and temperature limits). Available at: https://webstore.iec.ch/publication/66796
- IEEE. IEEE 112-2017 — Standard Test Procedure for Polyphase Induction Motors and Generators. Available at: https://standards.ieee.org/ieee/112/6470/
- Appliance Standards Awareness Project (ASAP). Electric Motors — Federal Standards and Timeline. Available at: https://www.appliance-standards.org/product/electric-motors
TOP 10 Chinese BLDC Motor Manufacturers
TOP 30 Electric Motor Manufacturers In China
TOP 10 Chinese Helical Gear Motor Manufacturer
TOP 10 DC Motor Manufacturers In China
