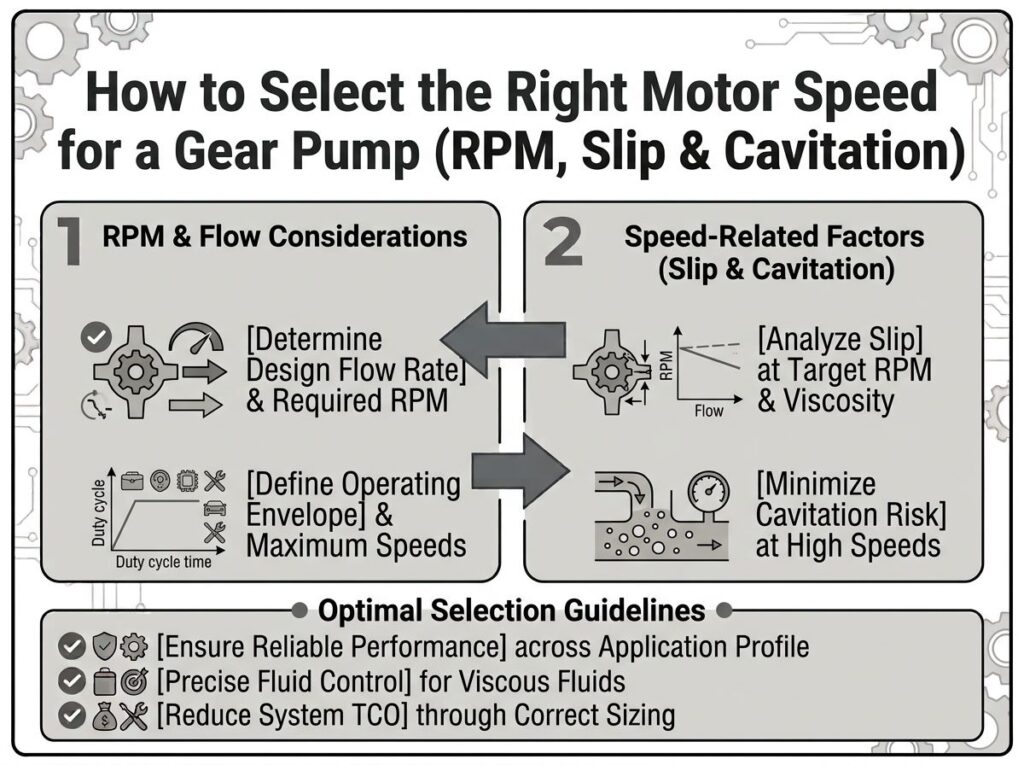

How to Select the Right Motor Speed for a Gear Pump: RPM, Slip & Cavitation
Quick Answer: The right motor speed for a gear pump is not a single number — it is a window defined by two failure modes. Run too slowly and internal slip (leakage through the clearances) becomes a large fraction of flow, so volumetric efficiency collapses and the pump runs hot. Run too fast and the fluid cannot fill the gear-tooth cavities in time, causing cavitation that pits the gears, plus rising flow ripple and noise.
For compact, low-flow micro gear pumps the usable band is typically 800–4000 rpm; for larger industrial gear pumps, 600–1800 rpm. The single most important input is fluid viscosity — thin fluids need a higher minimum speed but tolerate speed, while thick fluids must run slower. Pick the motor’s Kv (or a reduction gearbox) so its operating speed lands in that window, then use a variable-speed BLDC drive to meter flow across it.
In this guide
- What Is the “Right” Motor Speed for a Gear Pump?
- How Gear Pump Flow Tracks Motor Speed
- The Speed Window: Too Slow vs. Too Fast vs. Just Right
- Engineering Data: Slip, Cavitation, Viscosity & Noise
- Best Applications: Low-Flow Metering & OEM Equipment
- How to Select the Motor Speed (8 Steps)
- Common Engineering Mistakes
- Troubleshooting: Problem → Cause → Solution
- FAQ
- Why Choose GreenSky?
- References
What Is the “Right” Motor Speed for a Gear Pump?
The “right” speed is the shaft speed at which the pump delivers its target flow accurately, quietly and without damaging itself. Because a gear pump is a positive-displacement machine, flow is set by speed, so choosing a speed is choosing a flow — but not every speed is safe or efficient.
Three constraints shape the choice:
- The slip floor. Internal clearance between the gears, side plates and housing lets some fluid leak from the discharge back to the suction. At low speed this slip is a larger share of total flow, so volumetric efficiency falls and the pump wastes energy as heat.
- The cavitation ceiling. At high speed the viscous fluid cannot accelerate into the tooth cavities fast enough, so the local pressure drops below vapor pressure and bubbles form, then collapse — eroding the gears and housing.
- Noise and ripple. A gear pump delivers flow in pulses at
teeth × rpmper second. Faster speeds push that pulse frequency up in amplitude and pitch, raising audible noise and vibration.
The “right” speed balances all three. It is set primarily by fluid viscosity and pump displacement, which is why two identical pumps on different fluids can have very different correct speeds. See our magnetic gear pump explainer for the underlying pump mechanics, how a micro magnetic pump works for the compact end of the range, and how to choose the BLDC motor for the torque side of the same decision.
How Gear Pump Flow Tracks Motor Speed
The speed-to-flow relationship is the reason a variable-speed motor is the natural drive for a gear pump. Follow it step by step:
- Theoretical flow. Each shaft revolution traps and carries a fixed volume equal to the pump’s displacement
D(mL/rev). Theoretical flow isQtheo = D × N, directly proportional to motor speed. - Actual flow. Internal slip subtracts from the theoretical volume:
Q = D × N × ηv, whereηvis volumetric efficiency. Slip grows with differential pressure and shrinks with viscosity. - Low speed = slip dominates. As
Nfalls, the fixed slip volume becomes a bigger share, soηvdrops. Below the pump’s minimum speed the meter reads progressively less than expected and the pump heats up. - High speed = fill limits. As
Nrises, the fluid has less time to enter the tooth cavities. Beyond the fill limit the cavities starve, pressure at the inlet drops below vapor pressure, and cavitation begins. - Speed = metering. Within the safe window, changing motor speed changes flow almost linearly — which is why a BLDC motor with a 0–10 V or PWM speed setpoint is the standard way to dose and meter with a gear pump.
Why a variable-speed BLDC beats an on/off pump. A fixed-speed pump throttled by a valve wastes energy and heats the fluid. A variable-speed BLDC drive varies flow by RPM with no throttle, holding the motor near its efficiency band across the turndown range — the same logic covered in our motor speed and RPM selection guide.
The Speed Window: Too Slow vs. Too Fast vs. Just Right
| Aspect | Too slow (below floor) | Too fast (above ceiling) | In the window |
|---|---|---|---|
| Volumetric efficiency | Collapses (slip dominates) | Drops (fill limit / cavitation) | High and stable (85–93%) |
| Heat | Runs hot per litre delivered | Heats from churn and ripple | Minimal |
| Noise / vibration | Low (but may surge) | High — cavitation “gravel” + ripple | Low, steady |
| Bearing / gear wear | Poor lubrication at very low rpm | Accelerated by cavitation pitting | Normal, long life |
| Metering accuracy | Poor (slip not linear) | Poor (unstable fill) | Best (flow ∝ rpm) |
Representative windows by pump class (with typical BLDC motor speed ranges from our micro magnetic gear pump motor line in parentheses): micro metering gear pumps 800–4000 rpm (GS-BL120/240: 2000–6000 rpm), compact transfer gear pumps 500–3000 rpm, and larger industrial gear pumps 600–1800 rpm. Always confirm against the pump manufacturer’s curve for your fluid.
Engineering Data: Slip, Cavitation, Viscosity & Noise
Flow and power
| Quantity | Formula | Notes |
|---|---|---|
| Theoretical flow | Qtheo = D × N | D = displacement (mL/rev), N = rpm |
| Actual flow | Q = D × N × ηv | ηv ≈ 0.85 thin fluid, ≈ 0.93 viscous |
| Shaft power | P = T × N / 9.55 / η | η = combined pump + coupling efficiency |
| Hydraulic power | P = (Q × Δp) / (600 × η) | Q in L/min, Δp in bar, η ≈ 0.7–0.85 |
| No-load speed | N₀ ≈ Kv × V | Kv in rpm/V; loaded speed ~15–25% lower |
Viscosity sets the speed ceiling
The maximum safe speed falls as viscosity rises, because a thicker fluid fills the tooth cavities more slowly. Field guidance from FB Bombas’ gear-pump manual (MTEC-01/01) is a useful benchmark:
| Fluid viscosity (SSU) | Approx. viscosity (cSt) | Max. speed (direct drive) |
|---|---|---|
| 30–250 SSU | ~1–54 cSt | 1,750 rpm |
| 2,500–7,500 SSU | ~540–1,600 cSt | 850 rpm |
| 10,000–50,000 SSU | ~2,200–11,000 cSt | 500–300 rpm (with gearbox) |
| >50,000 SSU | >11,000 cSt | 300–150 rpm (with gearbox) |
Two rules emerge. First, viscous fluids force a gearbox — the pump must turn slowly, so a reduction gearbox keeps the motor in its efficient high-speed band while delivering the low-speed, high-torque the pump needs. Second, thin fluids slip — a solvent at high back-pressure can see volumetric efficiency collapse toward 0.7, which narrows the usable speed range and often means a larger-displacement pump rather than more speed.
Noise and flow ripple
A gear pump’s output is inherently pulsed: flow ripple at the mesh frequency f = teeth × N / 60 (Hz) excites pressure ripple and audible noise. Higher speed raises both the amplitude and the pitch. Academic work on external gear pumps shows the driving gear dictates the ripple character, and continuous-contact helical profiles can cut the pulsation substantially — the same trade-offs described in our magnetic vs. conventional gear pump comparison. For quiet OEM instruments this is one more reason to stay mid-band and use a slotless BLDC with sinusoidal (FOC) commutation rather than pushing to the top of the speed range.
Best Applications: Low-Flow Metering & OEM Equipment
Speed selection matters most where a gear pump is asked to meter rather than simply transfer — the applications your customers build around compact, low-flow, low-power drives:
- Chemical & reagent dosing. Flow must track speed linearly and stay leak-free; the speed window keeps metering accuracy at ±0.5–1%.
- Medical & analytical instruments. Quiet, pulseless delivery at single-digit mL/min, where a slotless BLDC running mid-band avoids both cavitation noise and low-speed surge.
- Fuel-cell & hydrogen recirculation. Precise low-flow metering of a flammable fluid through a sealless magnetic coupling.
- Ink, adhesive & coating systems. Fixed displacement per rev gives repeatable deposition; speed sets the dose.
- Battery & electronics cooling. Variable speed matches coolant flow to thermal load, saving power in a battery device — the same speed-vs-efficiency logic behind an AGV traction motor, scaled down to watts.
The common thread: the motor speed is the flow control, so the speed selection and the drive’s 0–10 V / PWM setpoint are part of the same design decision.
How to Select the Motor Speed (8 Steps)
- Identify the fluid. Record viscosity (cSt or SSU) and its temperature dependence, plus any particle content. Viscosity is the dominant input to the speed window.
- Define the flow range. Write down minimum, nominal and maximum flow, and the back-pressure at each. This is the turndown the motor must cover.
- Pick a displacement. Solve
D = Q / (N × ηv)so the required flow lands mid-band (not at the speed extremes) — e.g. a 250 mL/min target at 2500 rpm andηv = 0.85needsD ≈ 0.12 mL/rev. - Check the viscosity speed limit. Confirm your chosen speed is below the manufacturer’s maximum for that viscosity (e.g. ≤1750 rpm for light fluids, far lower for heavy oils).
- Confirm the slip floor. Make sure the minimum speed you will command still keeps
ηvacceptable — do not meter below roughly 150–1000 rpm depending on size. - Choose direct drive or gearbox. If the motor’s natural speed (Kv × voltage) sits in the window, use direct drive. If the pump must run slow, add a reduction gearbox to keep the motor efficient.
- Set the Kv and voltage. Pick Kv so
Kv × Vlands the no-load speed ~15–25% above the required loaded speed, and match voltage to the machine’s existing bus (12 V / 24 V / 48 V — see our battery voltage selection guide for the voltage-vs-speed trade-off). - Verify noise and feedback. For quiet metering choose a slotless BLDC with FOC; confirm Hall vs. sensorless (sensorless needs a start-up ramp) and the 0–10 V / PWM speed interface the controller must expose.
The full torque-and-power sizing behind step 3 is covered in how to choose a BLDC motor for a micro pump and the motor-constant math in BLDC motor basics and sizing; the commutation choice is in Hall sensor vs. sensorless BLDC.
Common Engineering Mistakes
- Picking speed before viscosity. Selecting a 3000 rpm motor for a 10,000 SSU fluid guarantees cavitation. Viscosity sets the ceiling — check it first.
- Metering at the slip floor. Running a thin fluid at very low rpm to get a small flow produces inaccurate, non-linear metering and a hot pump. Choose a smaller displacement instead.
- Ignoring the turndown. A single speed cannot cover a 50:1 flow range; the pump’s usable turndown (often ~10:1 on viscous fluid, less on thin fluid) must bracket your flow range.
- Running sensorless from standstill. If the pump must start at low speed or against load, sensorless back-EMF commutation stalls; specify Hall sensors.
- Forgetting the gearbox. Direct-driving a slow, high-viscosity pump forces the motor far below its efficient band; a reduction gearbox restores efficiency and torque.
- Assuming ηv = 1. Real gear pumps slip; using geometric displacement for flow sizing under-delivers, especially on thin fluids at pressure.
- Pushing to max speed for “more flow.” Beyond the fill limit you get cavitation, noise and wear with little extra flow — if you need more, go to a larger displacement, not more rpm.
Troubleshooting: Problem → Cause → Solution
| Problem | Likely cause | Solution |
|---|---|---|
| “Gravel” / rattling noise at speed | Cavitation — fluid can’t fill teeth | Reduce speed; lower viscosity or raise inlet pressure |
| Flow lower than expected at low rpm | Slip dominates; ηv collapsed | Raise minimum speed or use larger displacement |
| Pump runs hot at low flow | Metering below the slip floor | Re-size displacement so speed stays mid-band |
| Audible pulsing / vibration | Flow ripple at mesh frequency | Shift speed mid-band; use helical or FOC drive |
| Motor stalls at start-up | Sensorless start against load | Add Hall sensors; use open-loop start ramp |
| Inaccurate metering on thin fluid | Excessive slip at pressure | Verify ηv; tighten clearances or raise viscosity |
Why Choose GreenSky?
GreenSky Power supplies the variable-speed BLDC/PMSM motors and drive electronics that let a gear pump meter across its full speed window. Our micro-pump motor range spans 12–42 mm, 3.7–48 V, ~10–400 W with speed ranges that map directly onto micro gear-pump heads (0.6–5.0 mL/rev): the GS-BL120 (2000–6000 rpm), GS-BL240/480 (2000–5000 rpm) and geared options for slow, high-viscosity duty. Every drive is built for OEM metering — IE4-class efficiency, Class F/H insulation, 0–10 V / PWM speed setpoint, Hall or sensorless feedback, and CE/RoHS/REACH compliance for export (see our CE compliance guide) — and we co-engineer the motor’s Kv and gear reduction against your fluid and flow range, the same OEM manufacturing approach we apply to every drive we ship, so the pump stays in its safe speed window.
Need a motor speed-matched to your gear pump?
Send your fluid viscosity, flow range and bus voltage — we’ll return the optimal RPM window, Kv and gear reduction with a technical data sheet.
Contact GreenSky engineering →
References
- IEC 60034-1:2022 — Rotating electrical machines, Part 1: Rating and performance (duty cycles S1–S10, insulation classes, speed ratings)
- IEC 60034-30-1 — Efficiency classes of line-operated AC motors (IE1–IE5)
- NEMA MG 1-2021 — Motors and Generators (speed, torque and efficiency tables)
- U.S. DOE 10 CFR Part 431 — Energy conservation standards for electric motors
- S. Wang, H. Sakurai and A. Kasarekar, “The Optimal Design in External Gear Pumps and Motors,” IEEE/ASME Transactions on Mechatronics, vol. 16, no. 5, pp. 945–952, 2011.
- N. D. Manring and S. B. Kasaragadda, “The Theoretical Flow Ripple of an External Gear Pump,” ASME Journal of Dynamic Systems, Measurement, and Control, vol. 125, no. 3, pp. 396–404, 2003.
- IEA — Energy Efficiency: motor-driven systems technology and policy reports
- SKF — Bearing selection and life guidance for small electric motors and pumps
- Siemens — SIMOTICS low-voltage motors and variable-speed drive documentation
- Yaskawa — GA500 microdrive and permanent-magnet motor speed-control documentation
What is a gear pump’s turndown ratio and why does it matter?
Turndown is the ratio of maximum to minimum flow the pump can meter accurately — often 10:1 or more on viscous fluids, but far less on thin fluids because slip narrows the low-speed end. Your motor’s speed range must span the turndown without crossing the slip floor or the cavitation ceiling.
Can I run a gear pump slower than its rated minimum?
Only briefly, and only with viscous fluids. Below the minimum, slip dominates, volumetric efficiency falls, and the gears stop slinging lubricant onto the bearings — so the pump heats up and wears. If you need a smaller flow, choose a smaller-displacement pump rather than crawling at low rpm.
How do I know if a gear pump is cavitating?
Listen for a “gravel” or “marbles” rattle and look for falling flow, rising vibration and eventual pitting on the gear faces. Confirm by checking that the available NPSH exceeds the pump’s required NPSH — NPSHa = Ptank + h − Δppiping − Pvapour — and that the speed is within the viscosity limit.
Why do high-viscosity fluids need lower pump speed?
Because a thick fluid fills the gear-tooth cavities slowly. At high speed the cavities starve before they can fill, so the inlet pressure collapses and cavitation starts. The more viscous the fluid, the lower the maximum safe speed — and the more likely a reduction gearbox is needed to keep the motor efficient at that low speed.
Does a higher Kv motor mean the gear pump can meter faster?
Not usefully. Kv sets the no-load speed per volt, but the pump’s speed is bounded by the slip floor and cavitation ceiling, not by how fast the motor can spin. Choosing a higher-Kv motor without a speed window in mind just pushes the pump toward cavitation. Match Kv so the operating speed lands inside the safe window.
How does motor speed affect gear pump noise?
Gear-pump flow ripple pulses at teeth × rpm / 60 Hz, and both the amplitude and pitch of that noise grow with speed. Running mid-band and driving the motor with sinusoidal FOC (rather than 6-step block commutation) reduces both the ripple and the audible noise — important in medical and analytical instruments.
