How Stepper Motors Work: A Detailed Guide
Stepper motors are a type of electric motor that converts electrical pulses into precise mechanical movements. They are widely used in various applications requiring high precision and accuracy, such as robotics, CNC machines, and 3D printers. This article will delve into the inner workings of stepper motors, exploring their construction, principles of operation, and the factors that contribute to their performance.
Construction of Stepper Motors
Stepper motors are composed of several key components:
- Stator: The stationary part of the motor, consisting of multiple electromagnetic coils, known as stator windings.
- Rotor: The rotating part, usually made of a laminated iron core with teeth that align with the stator’s magnetic field.
- Shaft: The central axis that connects the rotor to the load.
- Bearings: Support the rotor and reduce friction during rotation.
- End Covers: Protect the internal components and keep them in place.
Principles of Operation
The operation of a stepper motor is based on the fundamental principles of electromagnetism:
- Electromagnetic Induction: When current flows through the stator windings, it generates a magnetic field that interacts with the rotor’s magnetic field.
- Magnetic Locking: The rotor aligns itself with the magnetic field produced by the stator, locking into position.
- Sequential Activation: By sequentially activating different stator windings, the motor can control the direction and magnitude of the magnetic field, causing the rotor to rotate in precise steps.
Control Mechanisms
Stepper motors are controlled through a series of electrical signals:
- Pulse Signal: Each pulse received by the motor causes it to move one step.
- Direction Control: The direction of rotation is determined by the sequence in which the stator windings are energized.
- Speed Control: The speed of the motor is directly proportional to the frequency of the input pulses.
Step Angle and Resolution
The step angle is the angle by which the motor rotates with each step. It is determined by the design of the stator and rotor:
- Full Step: The basic unit of movement, typically 1.8 degrees for a standard two-phase stepper motor.
- Microstepping: A technique that allows the motor to take smaller steps than the full step angle, improving smoothness and resolution.
Drive Modes
Stepper motors can be driven in different modes to achieve various performance characteristics:
- Full Step Mode: Each stator phase is energized in sequence, resulting in the largest step angle.
- Half Step Mode: Alternates between energizing one phase and energizing two phases, halving the step angle.
- Microstepping Mode: Modulates the current in the stator windings to create intermediate steps, offering greater control and smoother motion.
Subdivision Control
Subdivision, or microstepping, is a method to increase the resolution of a stepper motor:
- Pulse Subdivision: The input pulse is divided into smaller segments, allowing the motor to move in smaller increments.
- Microstepping Drivers: Specialized controllers that regulate the current in the stator windings to achieve finer steps.

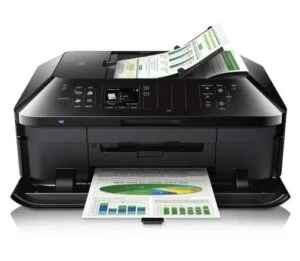

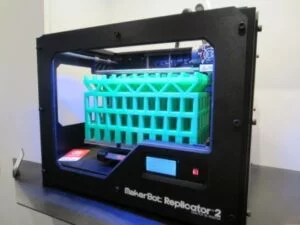

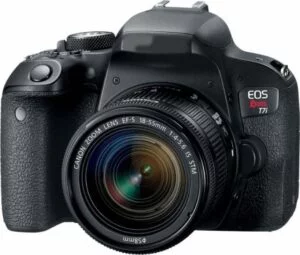

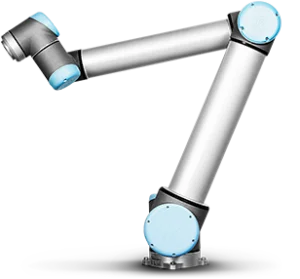

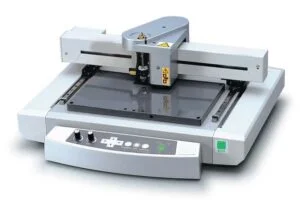

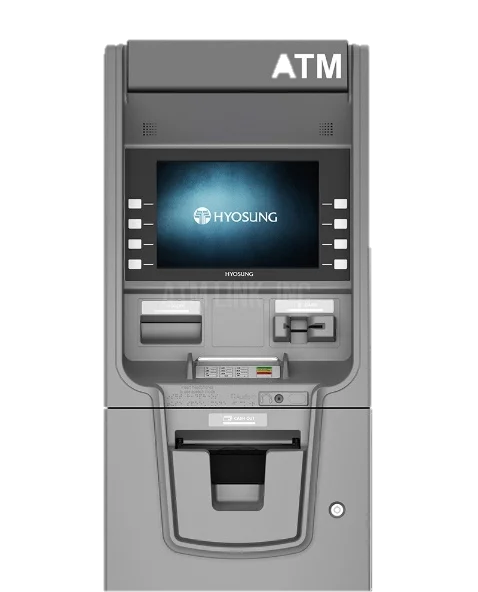

Applications
Stepper motors are used in a variety of applications due to their precision and reliability:
Advantages and Limitations
Stepper motors offer several advantages, such as:
- High Precision: The ability to control the position and movement with great accuracy.
- High Reliability: No need for a feedback system, as the motor’s position is inherently known.
- Low Maintenance: Few moving parts reduce the likelihood of mechanical failure.
However, they also have some limitations:
- Efficiency: Can be less efficient at high speeds due to the nature of their operation.
- Torque Ripple: Variations in torque output as the motor steps, which can affect smooth operation.
Conclusion
Stepper motors are a versatile and reliable solution for applications requiring precise control of motion. By understanding their construction, operation, and control mechanisms, engineers can effectively harness the power of stepper motors to meet the demands of their projects. As technology advances, the performance and capabilities of stepper motors continue to improve, opening up new possibilities for their use in various industries.
In summary, stepper motors work by converting electrical pulses into mechanical steps through a combination of electromagnetic induction, sequential activation, and precise control mechanisms. Their ability to provide high precision and accuracy makes them indispensable in many modern technologies.
