Compact Powerhouses: Compact Brushless DC Motors for Consumer Electronics Success
The global compact brushless DC (BLDC) motor market is projected to reach $18.3 billion by 2028, driven by the demand for miniaturized, energy-efficient solutions in consumer electronics. These motors deliver 20–60% higher efficiency than brushed alternatives while reducing space requirements by 30–50%, enabling breakthrough innovations in drones, wearables, and smart home devices. This analysis explores technical advantages, application-specific case studies, and design strategies leveraging compact BLDC technology.
I. Technical Superiority: Why Compact BLDC Motors Dominate
A. Energy Efficiency Revolution
- 20–60% power savings from eliminated brush friction and reduced excitation losses, extending battery life in portable devices by 2–3x.
- 92–95% operational efficiency vs. 75–80% in brushed motors, cutting thermal dissipation by 40% in confined spaces.
B. Precision Performance
- ±0.01° torque accuracy with trapezoidal commutation (e.g., Portescap 16ECS36 motors) enabling surgical robotics precision.
- Sensorless control innovation using back-EMF detection eliminates Hall sensors, reducing motor diameter by 15%.
C. Durability & Miniaturization
- 100,000+ hour lifespan without brush replacement, critical for sealed medical devices.
- Coreless designs (e.g., coreless DC motors) achieving 28mm diameter with 0.025mm shaft runout tolerance.
II. Application-Specific Case Studies
A. Drone Propulsion Systems
- Nema17 4000RPM motors (JKong Motor JK42BLS series): 0.25N·m torque at 0.3kg weight, enabling 30-minute flight times with 12V LiPo batteries.
- Sensorless control advantage: Eliminates position sensors, reducing failure points in aerial vibrations.
B. Wearable Medical Devices
- Insulin pump motors (e.g., Clark Solutions PI-Z-D): 24mm diameter with IP69K sealing, delivering 0.02ml dosage accuracy .
- Noise reduction: Sinusoidal commutation cuts operational sound to <25dB for hearing aid compatibility .
C. Smart Home Appliances
- Robotic vacuum motors: 42mm pancake BLDC (Twirl Motor) with 0.32Nm torque at 3,000 RPM, increasing suction efficiency by 45%.
- Magnetic levitation fans: Sensorless 12V motors reducing CPU cooler thickness to 15mm.
III. Design Innovation Framework
A. Component Integration
- Electronics-motor fusion: Controllers embedded in stator housings (e.g., Innotec Power designs) shrink PCB footprint by 60%.
- Advanced materials: Neodymium magnets increase torque density by 200% vs. ferrite alternatives.
B. Thermal Management
- Liquid-cooled stators: Sustain 75°C ambient temperatures in IoT gateways.
- Anisotropic conductive films: Dissipate heat in <1mm-thin motor designs.
C. Customization Tools
- API-integrated configurators (e.g., ATO.com): Simulate torque-speed curves for specific load profiles pre-production.
IV. Procurement Guide: 5 Critical Specifications
| Parameter | Consumer Electronics Benchmark | Impact |
|---|---|---|
| Diameter | 12–42mm | Fits wearables & micro-robotics |
| Torque Density | >0.8 N·m/kg | Enables payload capacity |
| Noise Level | <30dB (sinusoidal commutation) | Essential for home/medical use |
| Voltage Range | 3.7–24V (LiPo compatible) | Battery optimization |
| IP Rating | IP67+ for outdoor devices | Dust/water resistance |
⚡ Technical Insight: Sensorless trapezoidal commutation reduces component count by 40% but requires static loads. For dynamic loads (e.g., robotic joints), hybrid Hall+encoder systems maintain precision.
V. Sustainability & Compliance
- E-waste reduction: Recyclable neodymium magnets complying with California SB 343 regulations.
- RoHS 3.0/REACH pre-certification: Accelerates time-to-market for EU/US products.
VI. Future Innovations (2025–2030)
- AI-Optimized Windings
- Machine learning algorithms customizing stator coils for target efficiency peaks (e.g., +5% drone flight time) .
- Biodegradable Polymers
- Plant-based insulation films replacing PVC in sub-20mm motors .
- Integrated Energy Harvesting
- Vibration-powered BLDCs eliminating batteries in wearables .

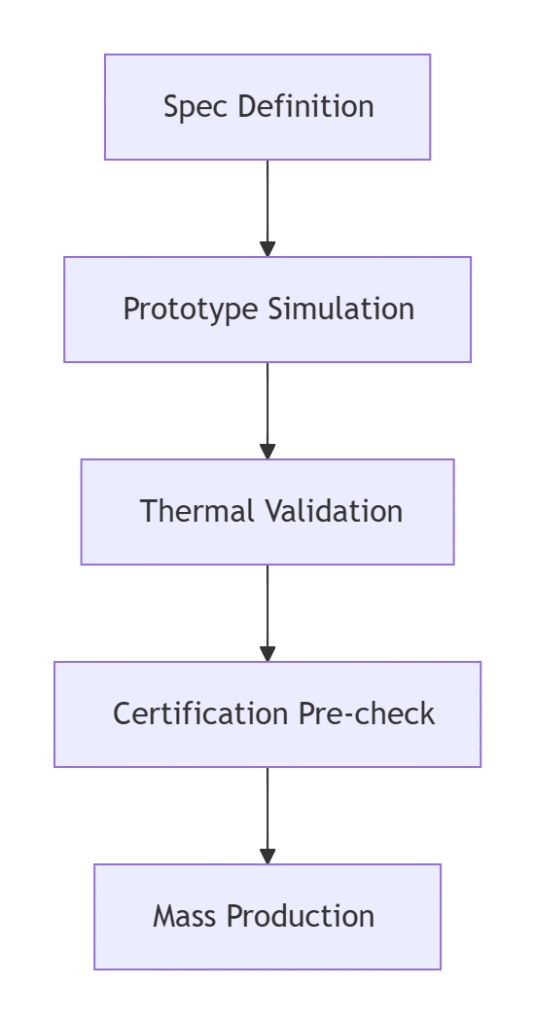

Implementation Roadmap
Partner with Greensky Power
Submit design requests via:
- BLDC Motor Configurator
- Contact Engineering Team
Benefits: - 15-day rapid prototyping
- MOQ 500+ for volume production
