Three Phase Asynchronous Motor Common Faults & Treatment Methods

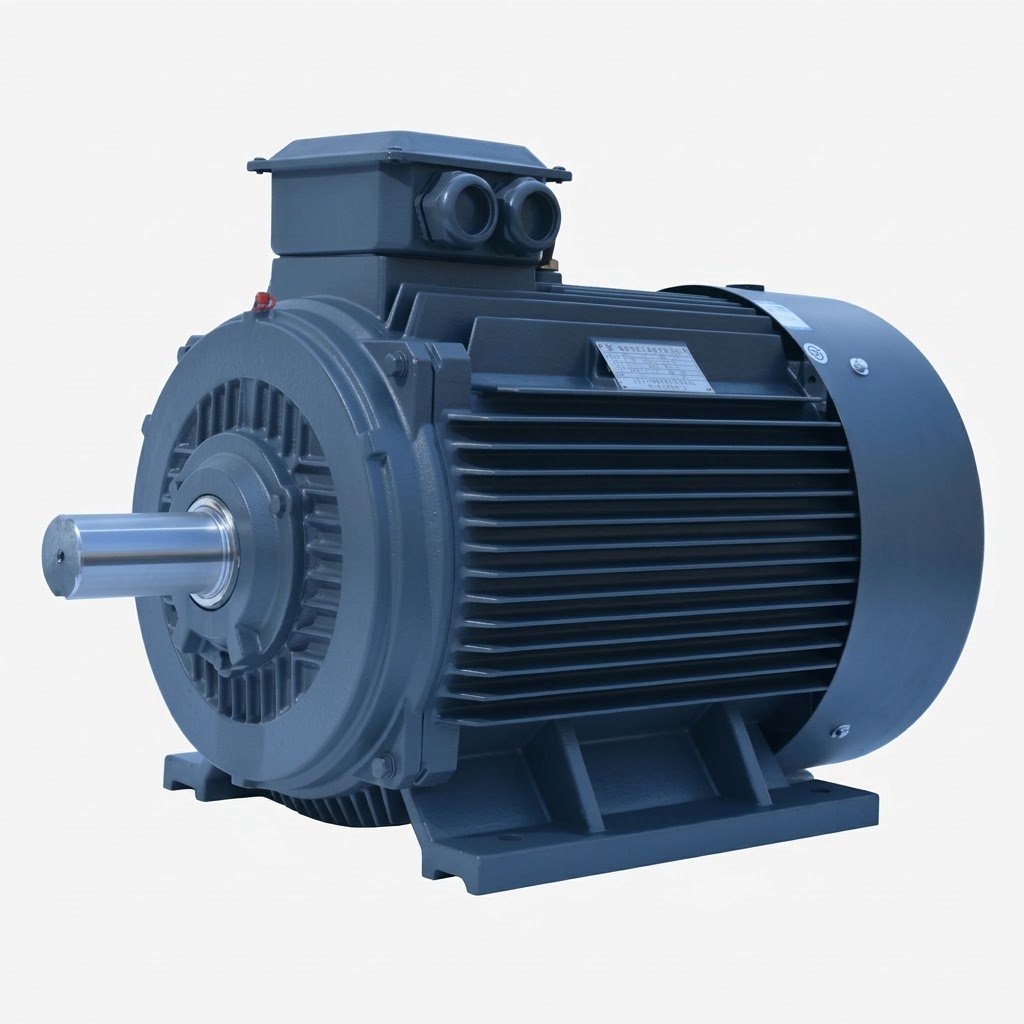

What Is a Three-Phase Asynchronous Motor?
A 三相異步電動機 — almost always called an 感應電機 in North America — is a rotating machine that converts three-phase AC electrical power into mechanical torque. “Asynchronous” means the rotor never reaches the speed of the rotating stator field: it always runs slightly slower, and that speed deficit (這 滑) is exactly what induces current in the rotor and produces torque. It is the workhorse of industry — induction motors consume roughly 70% 所有工業用電 (我們. 美國能源部 / IEC estimates), which is why their failure modes and treatment methods matter to every maintenance program.
Key Construction Types
| Construction | Rotor type | 典型用途 | Service notes |
|---|---|---|---|
| Squirrel-cage (TEFC / 臭氧開發計劃) | Cast aluminium or copper bars shorted by end rings | 泵, 粉絲, 輸送機, 壓縮機 | Most common; 崎嶇, no slip rings |
| Wound-rotor (滑環) | 3-phase winding + external resistors via slip rings | 起重機, mills, high-inertia starts | Adjustable start torque; brush/slip-ring wear |
| Line-start PM (synRM/PMSM) | Permanent-magnet or reluctance rotor | IE4/IE5 premium efficiency | 效率更高; needs drive or special design |
How a Three-Phase Asynchronous Motor Works
The principle is electromagnetic induction — no brushes, no external excitation on the rotor. The sequence is:
- Three-phase supply creates a rotating field. The 120°-spaced stator windings fed by 120°-spaced voltages produce a magnetic field that rotates at the 同步速度 否s = 120·f / P (f = supply frequency, P = pole count).
- The rotor lags behind (滑). A stationary rotor would see a changing field and a large induced current, but as it speeds up the relative motion shrinks. At exactly Ns there would be zero relative motion, zero induced rotor current, and zero torque — so the rotor settles just below Ns.
- Rotor current is induced by slip. The slip frequency is fr = s·f (s = slip fraction). 在 3% slip on 50 赫茲, the rotor bars carry current at 1.5 Hz — enough to make torque, small enough to keep losses low.
- Torque balances the load. Torque rises with slip in the stable region; the motor finds the slip where electromagnetic torque equals the load torque. More load → more slip → more rotor current → more torque, up to the breakdown point.
- Losses become heat. 銅損 (I²R) in stator and rotor, iron loss in the core, and friction/windage all raise temperature. That is why thermal class and cooling are central to fault treatment.
同步速度 & Slip — Reference Table
| 波蘭人 (P) | 否s @ 50 赫茲 (轉速) | 否s @ 60 赫茲 (轉速) | Typical full-load slip |
|---|---|---|---|
| 2 | 3000 | 3600 | 3–6% |
| 4 | 1500 | 1800 | 2–5% |
| 6 | 1000 | 1200 | 1.5–4% |
| 8 | 750 | 900 | 1–3% |
工作範例. A 4-pole, 50 Hz motor with a nameplate speed of 1455 轉速: 否s = 120 × 50 / 4 = 1500 轉速, slip s = (1500 - 1455) / 1500 = 3.0%, and the rotor current frequency is fr = 0.03 × 50 = 1.5 赫茲. If slip climbs well above the nameplate value under the same load, suspect overload or broken rotor bars.
The Most Common Faults — and Where They Come From
Field data from industrial maintenance programs consistently shows a similar breakdown. Treat these percentages as a prioritization tool, not a precise census:
| Fault category | Share of failures* | Typical root cause | First symptom |
|---|---|---|---|
| 定子繞組絕緣 | ~32% | 過熱, 電壓不平衡, 水分, 污染 | 接地故障, trip, 燒焦的氣味 |
| 軸承 / 機械的 | ~30% | 潤滑, 錯位, 污染 | 噪音, 振動, hot bearing |
| 轉子 (bars / rings) | ~14% | 熱循環, start surge, casting defect | current swing, 低扭矩, 熱 |
| 供應 / 控制 | ~14% | single-phasing, contactor, wrong connection | won’t start, 哼, reverse |
| 其他 (環境, 加載) | ~10% | blocked cooling, 超載, 耦合 | 過熱, 振動 |
*Aggregated from multiple motor-reliability surveys (例如. IEEE/EPRI-style maintenance studies). Exact shares vary by industry and duty.
Diagnostic Decision Table — Symptom → Subsystem → First Test
| Observed symptom | Likely subsystem | First check (external → mech → elec) |
|---|---|---|
| Won’t start, no hum | 供應 / 控制 | 端子電壓, fuses, contactor, OLR setting |
| Won’t start, loud hum | 供應 (單相) / mechanical lock | Phase balance; manually rotate load (barring) |
| Starts but trips immediately | Electrical fault / 超載 | Megger to ground; verify OLR vs nameplate |
| Runs slow under load | 供應 / 轉子 | 電壓 & balance; broken-bar test (MCSA) |
| 過熱 | 熱的 (all) | Load current vs FLA; cooling path; voltage balance |
| 振動 / 噪音 | 機械的 | 軸承, alignment, balance; then electrical spectrum |
| Shell/case live | Insulation ground | Megger phase-to-frame; dry or rewind |
Engineering Data You Need for Diagnosis
Core Formulas
| 數量 | 公式 | 筆記 |
|---|---|---|
| 同步速度 | 否s = 120·f / P | f in Hz, P = 極點 |
| 滑 (分數) | s = (否s - Nr) / 否s | 否r = 實際轉子速度 |
| 轉差頻率 | fr = s·f | Frequency induced in rotor bars |
| Shaft torque | T = 9550·P千瓦 / n轉速 | Also T = 9.549·P / n |
| 電壓不平衡 (沒有) | %UB = max deviation from avg ÷ avg × 100 | ≤1% continuous; >5% not advised |
| Current unbalance (rule) | ≈ 6–10× voltage unbalance | Negative-sequence heating |
| 額定電流 | 我=P / (√3 · V · cosφ · η) | 3-phase apparent-power relation |
| 軸承壽命 (L10小時) | L10h = (成本/價格)p · 106 / (60·n) | p = 3 球, 10/3 滾筒 |
Worked Example — Torque and Unbalance
A 7.5 千瓦, 4-極, 50 Hz motor nameplated at 1455 轉速和 400 V:
- 額定扭矩: T= 9550 × 7.5 / 1455 = 49.2 牛頓·米.
- 滑: s = (1500 - 1455)/1500 = 3.0% (matches the stable region).
- Voltage unbalance check: measured line voltages 400 V / 408 V / 392 V → average 400 V, max deviation 8 V → 2.0% 不平衡. Per NEMA MG 1 this already calls for ~5% load derating, and implies roughly 12–20% current unbalance — a real overheating risk worth correcting.
國際電工委員會 60034-30-1 效率等級 (IE)
| 班級 | Relative efficiency | Regulatory status (典型的) |
|---|---|---|
| IE1 | 標準 (lowest) | Phasing out / banned for new in US & 歐盟 |
| 瀏覽器2 | 高的 | Legacy minimum in some regions |
| 瀏覽器3 | 優質的 | Current U.S. & EU minimum for most ratings |
| 瀏覽器4 | 超優質 | Growing adoption |
| IE5 | Ultra-premium | Line-start PM / synRM emerging |
絕緣溫度限制 (國際電工委員會 60034-1 / 一氧化氮鎂 1)
| 班級 | 最高繞線溫度 (℃) | NEMA temp rise @ 40 °C amb | Practice |
|---|---|---|---|
| 乙 | 130 | 80 °C rise (全部的 120 ℃) | 基線 |
| F | 155 | 105 °C rise (全部的 145 ℃) | Used as insulation, run at Class B rise |
| H | 180 | 125 °C rise (全部的 165 ℃) | High-duty / 高環境 |
這 10 °C rule: 每一個 10 °C of sustained temperature above the design point roughly halves insulation life. A motor that runs hot is not just inefficient — it is on a timer. This is why “過熱” sits at the top of any treatment list.
Insulation Testing (IEEE 43-2013)
| 公制 | 標準 | 行動 |
|---|---|---|
| Minimum insulation resistance | ≥ 1 兆歐姆 + 1 MΩ per kV rated (例如. 400 V → ≥ 1.4 兆歐姆) | Below → dry / 乾淨的 / 維修 |
| Polarization Index (PI = R10分鐘/右1分鐘) | > 2.0 好的; 1.5–2.0 questionable; < 1.0 dangerous | <1.0 → do not operate |
| Test voltage | 500 V DC for ≤1 kV windings (例如. 400 V motor) | Use megger, lockout/tagout first |
A healthy 400 V winding reads well above 1.4 MΩ with PI > 2. A reading near or below the minimum, 或 PI 下 1.0, 意味著水分, 污染, or insulation breakdown — the leading cause of the “won’t start / trips / burns” cluster.
最佳應用 & Where Faults Cluster
| 應用 | Why induction motors fit | Top fault to watch |
|---|---|---|
| 泵 & 壓縮機 | 連續工作, constant speed | 軸承磨損, single-phasing |
| 粉絲 & 鼓風機 | High inertia, 簡單的控制 | Blocked cooling → overheat |
| 輸送機 & 物料搬運 | Robust, reversible | 錯位, 超載 |
| 壓碎機 / 攪拌機 (高慣性) | High starting torque designs | Rotor-bar stress, 過熱 |
| Machine tools | Stable speed | Vibration from imbalance |
| 暖通空調 & building systems | 低維護成本 | Contamination, 濕氣侵入 |
一步一步: Selecting & Maintaining for Reliability
最多 “common faults” are actually maintenance gaps. A short, repeatable program prevents the majority of failures:
- Size to the load, not the catalog. Match torque (T = 9550·P/n) 和占空比; over-sizing wastes energy, under-sizing overheats.
- Verify the supply before commissioning. Confirm 3-phase voltage balance ≤1% (一氧化氮鎂 1), correct tap/connection (Δ vs Y), and proper phase rotation.
- Choose the thermal class for the environment. Use Class F insulation run at Class B rise for margin; specify Class H for high ambient or frequent starts.
- Baseline the insulation. Record IR and PI per IEEE 43 when new or after rewind — every future test is compared to this trend, not an absolute number.
- Baseline vibration. Capture the as-new spectrum; rising overall levels or new sidebands at 2×slip frequency flag broken rotor bars early.
- Grease on schedule. Fill to ~1/3–2/3 of the bearing cavity; 超過- or under-greasing is itself a leading cause of bearing failure.
- Keep it cool and clean. A 1-inch dust coat on TEFC fins can raise winding temperature 20 °C — clean the frame and check the fan.
常見的工程錯誤
| 錯誤 | Why it bites | Better practice |
|---|---|---|
| Ignoring 1–2% voltage unbalance | Creates 6–10× current unbalance and silent overheating | Correct supply; derate per NEMA MG 1 above 1% |
| Replacing a motor without checking the load | Same fault recurs in weeks | Bar the load, check coupling/alignment first |
| Over-greasing bearings | Seal damage, churning heat | Fill 1/3–2/3 cavity on a schedule |
| Swapping any two leads “to reverse” on a running VFD | Can trip or damage drive | Reverse at the drive, not the terminal box |
| Judging health by frame temperature alone | Winding runs much hotter than the frame | Use RTD/thermistor or megger + trend |
| Skipping the PI test, reading only spot IR | Misses moisture/contamination trends | Run full 10-min IEEE 43 test |
故障排除表: 問題 → 原因 → 解決方案
| 問題 | 可能的原因 | 治療 |
|---|---|---|
| Motor does not start, no hum | 無供應 / open fuse / OLR tripped / control fault | Check voltage at terminals, fuses, contactor, OLR setting; restore supply |
| Motor hums but will not turn | 單相, mechanical lock, wrong Δ/Y connection | Measure 3-phase balance; bar the load; correct connection per nameplate |
| Trips immediately on start | Short circuit, 接地故障, 超載, wrong OLR | Megger to ground; verify OLR vs nameplate; free the load |
| Runs slow under load | 低電壓, single-phase under load, broken rotor bars | Measure terminal voltage/balance; broken-bar (MCSA) test; rewind rotor |
| 過熱 / trips on thermal | 超載, blocked cooling, 電壓不平衡, winding fault | Check load current vs FLA; clean cooling path; correct unbalance; 兆歐表 |
| 振動過度 / 噪音 | 軸承磨損, 錯位, imbalance, loose feet | Replace/regrease bearing; 對準聯軸器; balance rotor; tighten foundation |
| Bearing runs hot | Wrong/little/contaminated grease, fit too tight/loose | 乾淨的, refill 1/3–2/3; 更換軸承; correct fit tolerance |
| Shell/case electrically live | Winding ground fault, 水分, damaged lead | Megger phase-to-frame; 乾燥, 維修, or rewind; fix lead insulation |
| Current swings / 不穩定 | Broken or loose rotor bars (松鼠籠) | Confirm with MCSA sidebands; reweld or replace rotor |
| Runs in wrong direction | Two phases swapped (phase rotation) | Swap any two supply leads at the disconnect/starter |
常見問題解答
What are the most common three-phase asynchronous motor faults?
By share of failures: stator winding insulation breakdown (~32%), bearing/mechanical faults (~30%), and rotor-bar faults (~14%), followed by supply/control problems such as single-phasing. 過熱, 振動, 無法啟動, and live frame are the visible symptoms of these root causes.
Why is single-phasing so destructive?
When one phase opens, the two remaining windings carry the full three-phase load current. Within seconds the overloaded windings heat dramatically, and the motor may keep “跑步” on two phases while cooking itself. Modern overload relays often catch it, but older contactors or worn connections may not — and NEMA MG 1 limits continuous voltage unbalance to 1% to avoid it.
How do I tell an overheated motor from a warm one?
Frame temperature is not winding temperature — the winding runs far hotter. Use embedded RTDs/thermistors, or compare load current against nameplate FLA. 根據 IEC 60034-1 / 一氧化氮鎂 1, Class B/F/H limit total winding temperature to 130/155/180 ℃; sustained operation above the design point follows the 10 °C rule (each 10 °C halves insulation life).
What does a low insulation resistance or PI mean?
Per IEEE 43-2013, minimum insulation resistance is 1 兆歐姆 + 1 MΩ per kV rated (A 400 V motor → ≥1.4 MΩ), and the polarization index (右10分鐘/右1分鐘) should exceed 2. Low or falling values mean moisture, 污染, or insulation breakdown — the leading cause of ground faults and burns. 乾燥, 乾淨的, or rewind as needed.
Can a three-phase motor run missing one phase?
It should not. A motor already running may continue on two phases but will overheat quickly; a motor at rest usually just hums and will not accelerate. Treat any single-phase condition as a fault to clear before restarting.
How often should I test motor insulation?
Baseline at commissioning and after every rewind, then on a scheduled program (commonly annually for critical motors, or tied to predictive-maintenance rounds). Trend the PI over time — a dropping trend matters more than any single reading.
Why Choose Greensky for Three-Phase Motors?
When you need a replacement or a new design built to spec, Greensky supplies a full three-phase asynchronous (就職) 發動機 range — plus BLDC, 永磁同步電機, and integrated gear-motor options — engineered to IEC 60034 和 NEMA MG 1 so the faults above are designed out, not discovered in the field:
- 瀏覽器3 / IE4 efficiency: premium-class rotors and lamination stacks that stay cooler and last longer.
- Thermal margin: Class F insulation run at Class B rise, with optional Class H for harsh duty — aligned to the 10 °C life rule.
- 軸承可靠性: selected SKF-grade bearings, correct grease fill, and shaft/end-cover fits that resist the #1 failure mode.
- 法蘭 & mounting compatibility: IEC B5/B14 and NEMA C-face — see our 馬達法蘭導軌.
- 低訂購量 OEM/ODM: custom voltage, 外殼, 軸, and encoder for spares and new machines.
