What Kind of Motor Is in a Lawn Mower?

What Kind of Motor Is in a Lawn Mower?

Featured Snippet Answer:
Modern lawn mowers use several different motor technologies depending on cost, power level, efficiency requirements, and application type. The most common motor types include brushed DC motors, brushless DC (BLDC) motors, AC induction motors, and gasoline engine-driven mechanical systems. In today’s electric lawn mower market, BLDC motors are becoming the preferred solution because they offer higher efficiency, better torque control, lower maintenance, quieter operation, and longer lifespan. OEM manufacturers increasingly select 48V and 72V brushless motors for cordless lawn mowers due to improved battery efficiency and smart electronic control compatibility.

For industrial buyers, choosing the right lawn mower motor directly affects cutting performance, runtime, thermal stability, maintenance cost, and product reliability. This guide explains how lawn mower motors work, compares different motor technologies, and provides engineering-level motor selection advice for OEM mower manufacturers and procurement teams.

What Kind of Motor Is Used in a Lawn Mower?

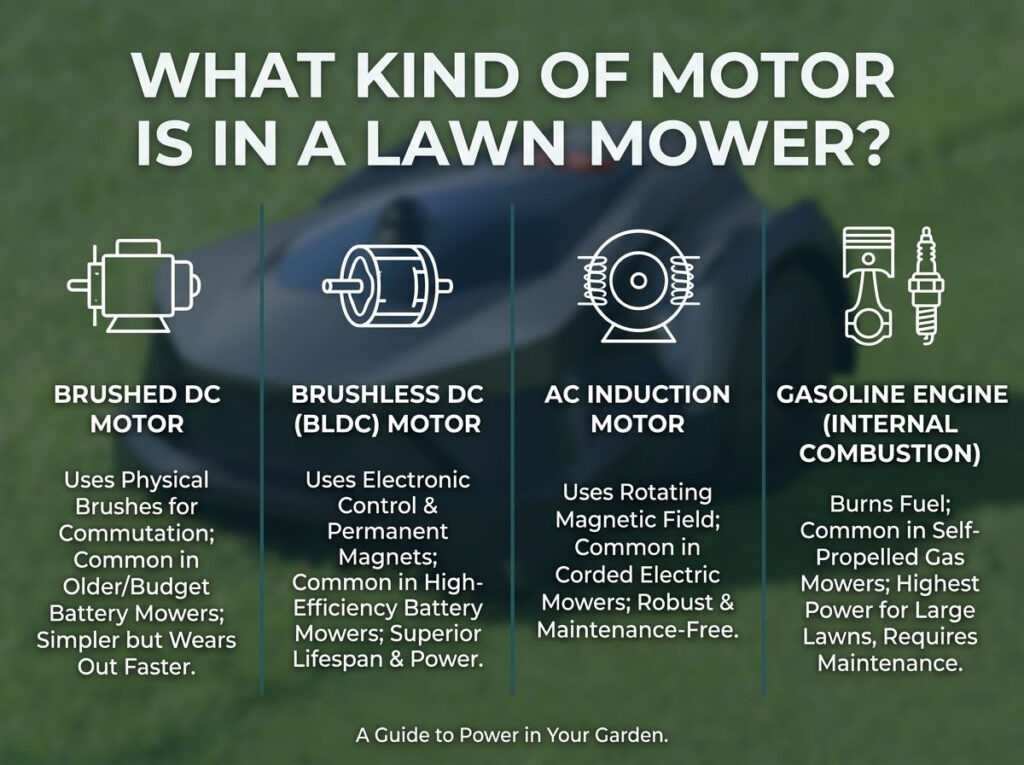

Lawn mower motors can be divided into two primary categories: electric motors and internal combustion engine systems. The global market is rapidly shifting toward electric lawn mower motors because of environmental regulations, lower noise requirements, and advances in lithium battery technology.

Common Lawn Mower Motor Types

Among these technologies, brushless DC motors now dominate high-performance cordless lawn mower platforms because they achieve better energy efficiency and higher torque density while supporting advanced electronic control systems.

How Does a Lawn Mower Motor Work?

The working principle depends on the motor technology used. In electric lawn mowers, electrical energy from either an AC source or lithium battery is converted into rotational mechanical energy to drive the cutting blade.

How Brushed DC Motors Work

Brushed DC motors use carbon brushes and a commutator to mechanically switch current direction inside the rotor winding. As current flows through the armature, electromagnetic force generates rotational torque.

Although brushed motors are inexpensive, brush friction creates energy loss, heat generation, electrical sparks, and wear over time. These issues reduce overall efficiency and reliability in demanding lawn mower applications.

How BLDC Lawn Mower Motors Work

Brushless DC motors eliminate physical brushes entirely. Instead, an electronic controller performs commutation using Hall sensors or sensorless algorithms.

The controller energizes stator windings sequentially to generate a rotating magnetic field. Permanent magnets on the rotor follow this field and produce rotational torque.

The main advantages of BLDC mower motors include:

• Higher efficiency
• Lower thermal loss
• Higher torque density
• Lower acoustic noise
• Longer operational lifespan
• Smart speed regulation

This is why modern OEM cordless mower platforms increasingly adopt 48V and 72V BLDC systems.

Why Brushless Motors Are Becoming Standard in Lawn Mowers

The global shift toward brushless lawn mower motors is driven by performance requirements, stricter environmental standards, and consumer demand for cordless equipment.

Higher Efficiency

BLDC motors commonly achieve efficiency levels between 85% and 92%, significantly higher than brushed motors. Improved efficiency directly increases battery runtime, which is critical for cordless lawn mowers.

Lower electrical losses also reduce heat generation inside the motor housing, improving thermal stability during continuous operation.

Better Torque Control

Lawn mowers frequently encounter changing grass density and uneven terrain. Brushless motor controllers can dynamically adjust torque output in real time.

This adaptive control prevents blade slowdown during heavy cutting conditions while reducing unnecessary power consumption during lighter loads.

Longer Lifespan

Brushless motors eliminate carbon brush wear, one of the most common failure points in traditional DC motors. For commercial lawn equipment, this dramatically reduces maintenance requirements.

Typical BLDC mower motors can exceed 5,000 operating hours under proper thermal management conditions.

Lower Noise and Vibration

Noise reduction is increasingly important in residential and urban landscaping applications. Brushless motors produce smoother torque output and lower acoustic noise compared with brushed systems and gasoline engines.

Brushless vs Brushed Motor Lawn Mower Comparison

One of the most common OEM purchasing questions is whether brushless motors justify their higher initial cost.

From an engineering perspective, the higher upfront cost of BLDC motors is often offset by lower maintenance cost, improved battery utilization, and longer product lifespan.

BLDC Motor vs Gasoline Engine for Lawn Mowers

Although gasoline lawn mowers still dominate certain commercial sectors, electric brushless systems are rapidly replacing small combustion engines.

Commercial landscaping companies are increasingly adopting high-voltage BLDC platforms because battery technology improvements now support longer operating durations with reduced environmental impact.

Key Engineering Factors in Lawn Mower Motor Design

Efficiency

Motor efficiency directly affects runtime and battery sizing. A motor operating at 90% efficiency wastes far less energy as heat than a 75% efficient system.

For OEM manufacturers, improved efficiency allows:

• Smaller battery packs
• Longer runtime
• Lower thermal stress
• Reduced cooling requirements

Torque Density

Lawn mower motors require high torque density because cutting blades experience sudden load spikes when encountering dense grass or debris.

BLDC motors offer excellent torque density because permanent magnet rotor designs produce strong magnetic fields within compact motor dimensions.

Thermal Management

Thermal performance is critical in enclosed mower decks where airflow may be limited.

Key cooling strategies include:

• Aluminum motor housings
• Internal cooling fans
• High-efficiency winding design
• Temperature sensors
• Intelligent controller derating

Poor thermal management significantly reduces insulation life and bearing reliability.

Control Systems

Modern brushless mower motors rely heavily on intelligent motor controllers. Advanced control algorithms improve efficiency and cutting consistency.

Common controller functions include:

• FOC (Field-Oriented Control)
• Soft start functionality
• Load-adaptive speed control
• Battery protection
• Overcurrent protection
• Temperature monitoring

How to Choose a Lawn Mower Motor for OEM Applications

Selecting the right lawn mower motor requires balancing cost, cutting performance, runtime, and environmental operating conditions.

Voltage Range

Common cordless mower voltage platforms include:

• 18V–24V for lightweight residential mowers
• 36V–48V for mid-range residential systems
• 72V+ for commercial-grade equipment

Higher voltage systems reduce current requirements and improve electrical efficiency.

Power Range

Speed and Torque Requirements

Lawn mower blades typically operate between 2,500 RPM and 3,500 RPM.

However, torque stability under dynamic load conditions is more important than maximum no-load speed.

OEM buyers should prioritize:

• Peak torque capability
• Low-speed torque stability
• Dynamic load response
• Controller tuning compatibility

Cooling Method

Commercial lawn mowers often require enhanced cooling systems because of continuous heavy-duty operation.

Cooling options include:

• Natural air cooling
• Forced-air cooling
• Integrated fan systems
• Liquid cooling for large commercial equipment

Controller Compatibility

Brushless lawn mower motors require compatible electronic speed controllers (ESCs).

Important controller considerations include:

• Voltage matching
• Peak current handling
• Communication protocol support
• FOC compatibility
• Regenerative braking capability

Greensky Power provides custom BLDC motor solutions with integrated controller matching for OEM lawn equipment manufacturers.

Related internal pages:

• /bldc-motor/
• /custom-motor/
• /electric-vehicle-motor/

Applications of Lawn Mower Motors Beyond Residential Equipment

Motor technologies developed for lawn mowers are increasingly used across multiple industrial sectors.

Robotic Lawn Mowers

Autonomous robotic mowers rely heavily on compact BLDC motors because they require:

• Low noise
• High efficiency
• Precise speed control
• Long battery runtime

Commercial Landscaping Equipment

Commercial landscaping fleets increasingly transition to electric platforms because municipalities now impose stricter emissions and noise regulations.

Agricultural Cutting Equipment

Brushless motor technologies are also expanding into agricultural trimming systems and intelligent grass management equipment.

Industrial Outdoor Equipment

Many industrial cleaning machines and outdoor power tools use similar motor architectures, including:

• Leaf blowers
• Snow throwers
• Garden tractors
• Autonomous utility robots

Future Trends in Lawn Mower Motor Technology

The lawn mower motor industry is rapidly evolving due to battery technology improvements and stricter environmental standards.

Higher Voltage Platforms

72V and even 120V battery systems are becoming more common in commercial landscaping equipment.

Higher voltage systems reduce copper loss and improve overall drivetrain efficiency.

Integrated Smart Control Systems

Future mower motors will increasingly integrate:

• IoT connectivity
• Predictive maintenance
• Cloud diagnostics
• AI-based torque optimization

Advanced Magnetic Materials

Improved permanent magnet materials increase torque density while reducing motor size and weight.

Energy Recovery Systems

Some future mower systems may integrate regenerative braking or energy recovery technologies to improve runtime efficiency.

Why OEM Buyers Prefer Custom BLDC Lawn Mower Motors

Standard off-the-shelf motors often fail to optimize overall mower performance.

OEM manufacturers increasingly require custom motor solutions tailored to:

• Specific blade diameters
• Battery platforms
• Cooling constraints
• Noise targets
• Controller architecture
• Product positioning

Custom brushless motor design allows manufacturers to optimize:

• Efficiency curves
• Torque output
• Thermal stability
• Acoustic performance
• Durability

Greensky Power supports OEM lawn mower manufacturers with custom 48V and 72V BLDC motor solutions designed for high efficiency and industrial-grade reliability.

Request datasheet, get OEM solution, or contact our engineers for customized lawn mower motor development support.

FAQ: What Kind of Motor Is in a Lawn Mower?

1. What type of motor is best for a lawn mower?

Brushless DC motors are generally considered the best solution for modern cordless lawn mowers because they provide higher efficiency, lower maintenance, quieter operation, and longer lifespan compared with brushed motors. Commercial-grade systems increasingly use 48V and 72V BLDC motors.

2. Are lawn mower motors AC or DC?

Corded electric lawn mowers often use AC induction motors, while cordless battery-powered lawn mowers primarily use DC motor systems, especially brushless DC motors. Gasoline lawn mowers use combustion engines rather than electric motors.

3. Why are brushless lawn mower motors more efficient?

Brushless motors eliminate brush friction and mechanical commutation losses. Electronic commutation allows more precise energy delivery, improving overall efficiency and reducing heat generation. This increases battery runtime and extends motor lifespan.

4. What voltage motor is used in cordless lawn mowers?

Most cordless lawn mowers operate on 18V, 36V, 48V, or 72V systems. Residential models typically use lower voltages, while commercial landscaping equipment increasingly adopts higher-voltage platforms for improved efficiency and torque output.

5. How long does a brushless lawn mower motor last?

A high-quality BLDC lawn mower motor can exceed 5,000 operating hours when properly cooled and matched with an appropriate controller. Lifespan depends heavily on thermal management, bearing quality, and operating load conditions.

6. Are brushless motors worth the higher cost?

For most OEM applications, yes. Although BLDC motors have higher upfront cost, they reduce maintenance, improve battery efficiency, increase reliability, and provide better cutting performance. Total lifecycle cost is often significantly lower.

Conclusion

The answer to “what kind of motor is in a lawn mower” depends on the mower’s design goals, application environment, and cost target. While brushed DC motors and gasoline engines still exist in certain market segments, brushless DC motor technology is rapidly becoming the industry standard.

BLDC lawn mower motors provide superior efficiency, higher torque density, better thermal performance, intelligent control capability, and longer operational lifespan. These advantages are especially important for OEM manufacturers seeking competitive cordless mower platforms.

As battery technology continues advancing, the future of lawn mower systems will increasingly rely on high-efficiency brushless motor architectures integrated with intelligent control systems.

Greensky Power provides OEM-focused brushless motor solutions for lawn mowers, robotic landscaping equipment, and outdoor power tools. Our engineering team supports custom voltage platforms, controller integration, thermal optimization, and industrial-grade motor reliability.

Request datasheet | Get OEM solution | Contact our engineers
