Brushless vs Brushed Motor Lawn Mower: Which Motor Technology Is Better?

Brushless vs brushed motor lawn mower comparisons have become increasingly important as the global lawn care industry shifts toward electric power systems. While brushed motors remain common in low-cost residential equipment, brushless DC (BLDC) motors are rapidly dominating premium residential, commercial, and robotic lawn mower platforms due to their superior efficiency, torque density, thermal management, and lifespan.

A brushed lawn mower motor uses mechanical brushes and a commutator to transfer electrical current to the rotating armature. In contrast, a brushless lawn mower motor uses electronic commutation controlled by an inverter or controller. This eliminates brush wear, reduces friction losses, improves efficiency, and enables intelligent torque control.

For OEM manufacturers, procurement teams, and equipment engineers, motor selection directly impacts cutting performance, battery runtime, noise level, maintenance requirements, and long-term operating cost. Understanding the engineering differences between brushless and brushed motor systems is essential when designing next-generation electric lawn mowers for residential, commercial, or robotic applications.

What Is a Brushed Motor Lawn Mower?

A brushed motor lawn mower uses a traditional DC motor architecture where carbon brushes physically contact a commutator to transfer electrical current to the rotor windings. As current flows through the armature, electromagnetic force generates rotational torque that spins the mower blade.

Brushed motors became popular in early electric lawn mower systems because they are:

• Simple to manufacture
• Low in initial cost
• Easy to control
• Widely available

Typical brushed lawn mower motors operate in:

• 12V–36V residential systems
• Corded AC-powered mowers
• Low-duty consumer equipment

How Brushed Motors Work

In brushed motors, the commutator mechanically switches current between armature windings as the rotor spins. Carbon brushes maintain sliding electrical contact with the commutator segments.

Although this design is mechanically straightforward, the friction between brushes and commutator introduces:

• Energy loss
• Heat generation
• Brush wear
• Electrical arcing
• Higher maintenance requirements

As mower runtime and duty cycle increase, these limitations become more significant.

What Is a Brushless Motor Lawn Mower?

A brushless motor lawn mower uses a BLDC motor with electronic commutation instead of mechanical brushes. The controller sequentially energizes stator windings to create a rotating magnetic field that drives the rotor.

Modern brushless mower motors typically integrate:

• Permanent magnet rotors
• Hall-effect sensors
• Electronic speed controllers
• MOSFET inverter stages
• Thermal protection systems
• Field-oriented control algorithms

Brushless technology enables significantly higher efficiency and torque control precision compared with brushed systems.

Why OEMs Prefer BLDC Lawn Mower Motors

Commercial equipment manufacturers increasingly adopt BLDC motors because they support:

• Higher power density
• Longer battery runtime
• Adaptive blade speed
• Reduced maintenance
• Lower operating noise
• Improved thermal stability
• Smart system integration

Brushless motor systems are now standard in:

• Premium cordless lawn mowers
• Commercial landscaping equipment
• Robotic lawn mowers
• Professional turf maintenance systems

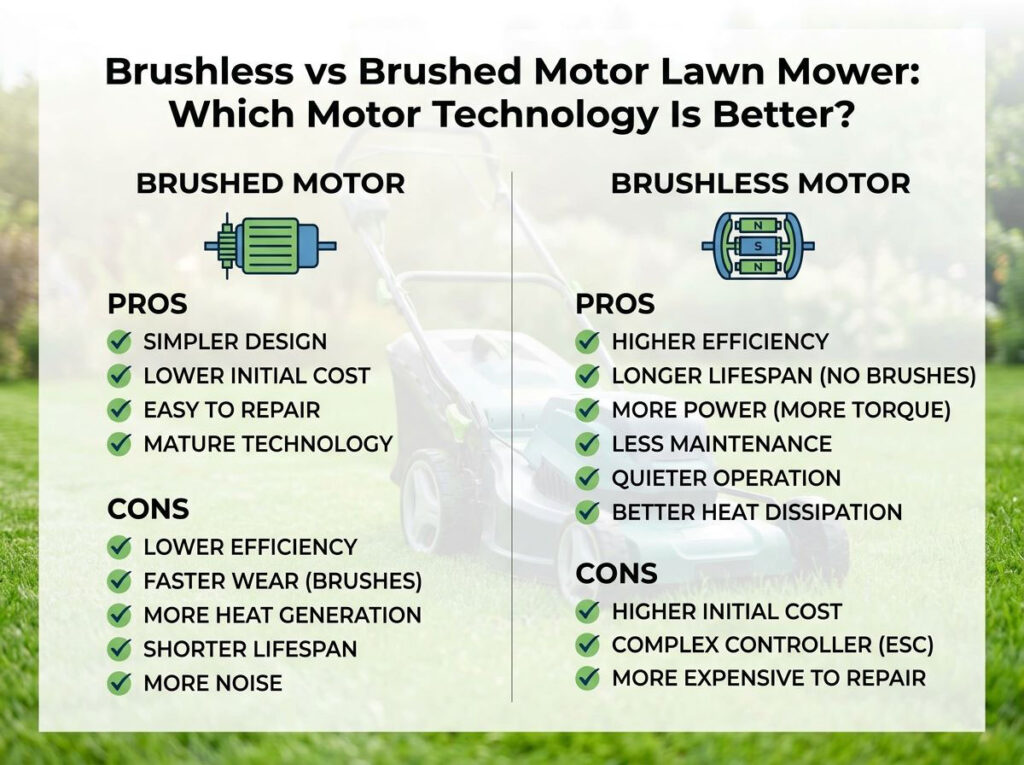

Brushless vs Brushed Motor Lawn Mower: Key Differences

From an engineering perspective, brushless motors deliver superior overall system performance despite higher upfront cost. Over the mower lifecycle, improved efficiency and reduced maintenance typically offset the initial investment.

Why Brushless Motors Are More Efficient

Reduced Mechanical Friction

Brushed motors lose energy through physical brush friction against the commutator. Brushless motors eliminate this contact entirely, significantly reducing mechanical loss.

Lower Electrical Loss

Brushless controllers optimize current delivery electronically, minimizing resistive losses and improving electromagnetic efficiency.

Better Thermal Control

Because less energy converts into heat, BLDC motors maintain higher operating efficiency under continuous load.

This directly improves:

• Battery runtime
• Continuous-duty capability
• Motor lifespan
• Blade speed stability

Variable-Speed Optimization

Brushless lawn mower motors dynamically adjust RPM according to grass load conditions. During light mowing, the controller reduces power consumption automatically.

This adaptive power management is especially important in battery-powered commercial mower fleets where runtime optimization affects operational productivity.

Torque Density and Cutting Performance Explained

Torque density is one of the most important engineering metrics in lawn mower motor selection.

High torque density means the motor can produce strong cutting force while remaining compact and lightweight.

Why Torque Matters in Lawn Mowers

Lawn mower motors must maintain blade speed when encountering:

• Wet grass
• Tall grass
• Dense vegetation
• Uneven terrain

Insufficient torque causes:

• Blade slowdown
• Uneven cutting
• Motor overheating
• Higher current draw

BLDC Torque Advantages

Brushless motors generate stronger low-speed torque because electronic controllers continuously optimize phase current delivery.

This improves:

• Starting torque
• Heavy-load cutting performance
• Blade acceleration
• Energy efficiency

Commercial landscaping equipment increasingly relies on high-torque BLDC systems operating at 48V or 72V.

Thermal Performance: Why Heat Management Matters

Thermal management directly affects lawn mower motor reliability and lifespan.

Heat Sources in Lawn Mower Motors

Major heat sources include:

• Copper losses
• Magnetic core losses
• Brush friction
• Bearing friction
• Power electronics switching losses

Why Brushed Motors Run Hotter

Brush friction and electrical arcing create additional heat inside brushed motors. High internal temperature accelerates:

• Brush wear
• Commutator degradation
• Insulation aging
• Bearing damage

Brushless Cooling Advantages

BLDC motors distribute heat more effectively because windings are located on the stator rather than the rotating armature. This improves thermal dissipation and simplifies cooling design.

Commercial brushless mower motors often integrate:

• Aluminum cooling housings
• Forced airflow systems
• Thermal sensors
• Smart overload protection

Reliability and Lifespan Comparison

Brush Wear Problems

Brushes are consumable components. Over time, they degrade because of friction and electrical erosion.

Common brushed motor failure modes include:

• Brush wear
• Commutator pitting
• Electrical sparking
• Carbon dust contamination

Why Brushless Motors Last Longer

Brushless motors eliminate physical electrical contact inside the motor. As a result, there are fewer wear components.

High-quality BLDC mower motors can operate for thousands of hours with minimal maintenance.

This makes them ideal for:

• Commercial landscaping fleets
• Municipal maintenance equipment
• Robotic mower systems
• Professional turf management

Lifecycle Cost Analysis

Although brushless motors have higher initial cost, their total ownership cost is usually lower because:

• Maintenance is reduced
• Energy efficiency is higher
• Downtime decreases
• Battery runtime improves

Brushless vs Brushed Lawn Mower Motors for Commercial Applications

Commercial lawn care operators prioritize:

• Low downtime
• Long operating hours
• Reduced maintenance
• Predictable performance

For these reasons, commercial OEMs increasingly transition toward brushless electric mower systems.

How to Choose a Lawn Mower Motor for OEM Applications

Voltage Range Selection

Voltage architecture influences efficiency, cable size, and thermal performance.

• 24V: Small residential mowers
• 36V: Medium-duty consumer equipment
• 48V: Commercial walk-behind mowers
• 72V: Heavy-duty professional systems

Power Range

Typical motor power ranges include:

• 500W–1200W: Residential
• 1.5kW–3kW: Commercial push mowers
• 4kW–10kW: Riding mowers

Cooling Method

OEM designers should evaluate:

• Natural cooling
• Forced-air cooling
• Aluminum housing heat dissipation
• Environmental sealing

Controller Compatibility

Advanced brushless mower motors increasingly require:

• Field-oriented control
• CAN communication
• Battery management integration
• Thermal protection systems

Application-Specific Design Considerations

Commercial lawn mower OEMs often require custom motor platforms optimized for:

• Noise reduction
• Peak torque delivery
• Blade response time
• IP-rated waterproofing
• Long-duty cycles

To request a datasheet or discuss custom mower motor development, OEM buyers can contact Greensky engineers for application-specific recommendations.

Applications of Brushless and Brushed Lawn Mower Motors

Residential Lawn Mowers

Brushed motors still appear in low-cost residential lawn mowers because initial price sensitivity remains important in entry-level consumer markets.

However, premium residential mowers increasingly use brushless systems because homeowners value:

• Lower noise
• Longer runtime
• Reduced maintenance
• Better cutting consistency

Commercial Landscaping Equipment

Commercial operators require high efficiency and long-duty operation. Brushless motors dominate this segment because of their superior reliability and thermal stability.

Robotic Lawn Mowers

Robotic mower systems almost exclusively use brushless motors because intelligent speed control and battery optimization are critical.

Industrial Turf Equipment

Golf courses, municipal maintenance fleets, and sports facilities increasingly adopt high-voltage brushless mower systems to reduce fuel consumption and maintenance cost.

Future Trends in Lawn Mower Motor Technology

72V High-Efficiency Platforms

Commercial lawn mower systems are rapidly transitioning toward 72V architectures because higher voltage improves efficiency and reduces current-related heating.

Field-Oriented Control (FOC)

FOC algorithms improve torque smoothness, noise reduction, and energy efficiency in advanced brushless mower systems.

Integrated Smart Motors

Future electric lawn mower motors increasingly integrate:

• Motor controllers
• IoT monitoring
• Wireless diagnostics
• Predictive maintenance

Sustainable Landscaping Equipment

Environmental regulations continue pushing the lawn care industry toward low-emission electric equipment, accelerating global demand for brushless mower motors.

FAQ: Brushless vs Brushed Motor Lawn Mower

Is a brushless lawn mower better than a brushed mower?

Yes. Brushless lawn mowers typically provide higher efficiency, longer lifespan, lower maintenance, and better torque control. They are especially beneficial in commercial and robotic mower applications where reliability and runtime are critical.

Why are brushless lawn mower motors more expensive?

Brushless motors require electronic controllers, permanent magnets, and more advanced control algorithms. Although initial cost is higher, lifecycle operating cost is often lower because maintenance and energy consumption decrease significantly.

Which motor lasts longer in a lawn mower?

Brushless motors generally last much longer because they eliminate mechanical brush wear and electrical arcing. High-quality BLDC mower motors can operate for thousands of hours with minimal maintenance.

Do brushless lawn mower motors have more torque?

Yes. Brushless motors usually provide higher torque density and better low-speed torque control. This improves cutting performance in thick or wet grass conditions.

Are brushed motors still used in lawn mowers?

Yes. Brushed motors remain common in low-cost residential lawn mowers because they are inexpensive and simple. However, commercial and premium mower markets increasingly favor brushless technology.

What voltage is best for commercial electric lawn mowers?

Commercial electric lawn mowers commonly use 48V or 72V systems because higher voltage improves efficiency, reduces current losses, and supports continuous-duty operation.

Conclusion

The brushless vs brushed motor lawn mower debate increasingly favors brushless technology as the electric lawn care market evolves toward higher efficiency, lower maintenance, and intelligent control systems.

While brushed motors still serve low-cost residential applications, BLDC motors now dominate premium residential, commercial, robotic, and industrial mowing equipment because they offer:

• Higher efficiency
• Superior torque density
• Longer lifespan
• Better thermal performance
• Reduced maintenance
• Advanced electronic control

For OEM manufacturers and procurement teams, selecting the correct lawn mower motor platform requires balancing performance, lifecycle cost, thermal management, and application-specific operating conditions.

As 48V and 72V high-efficiency electric mower systems continue expanding globally, brushless motors will remain the dominant solution for next-generation lawn care equipment.

To request datasheets, discuss OEM lawn mower motor solutions, or evaluate custom BLDC motor platforms, contact Greensky Power engineering specialists for technical consultation.
