The OEM’s Guide to Brushless DC Motor for Electric Scooter Selection: Balancing Power, Efficiency & Cost for Mass-Produced E-Scooters
Selecting the optimal brushless DC (BLDC) motor for mass-produced electric scooters requires balancing three critical constraints: power output (300–1500W), energy efficiency (85–95%), and manufacturing cost (50 billion by 2030**, OEMs must navigate technical specifications, supply chain logistics, and regulatory compliance to dominate competitive markets. This guide provides a actionable framework for evaluating BLDC motors across performance metrics, durability thresholds, and total cost of ownership (TCO) for high-volume production.
I. Core Technical Specifications for E-Scooter BLDC Motors
A. Power and Torque Requirements
BLDC motors for e-scooters typically operate within 250–1000W for urban commuting and 1000–1500W for performance models. Key considerations include:
- Rated vs. Peak Power: Motors must sustain continuous power while handling 150–200% peak loads during acceleration. For example, a 500W motor should deliver 750–1000W temporarily without overheating.
- Torque Profile: Hub motors (e.g., Ningbo Jiangbei’s 48V 650W model) provide 35–40 Nm of torque for direct-drive applications, eliminating gearbox costs but requiring higher initial current.
- Speed-Tradeoffs: Higher KV ratings (e.g., KV500–KV800) enable faster acceleration but reduce hill-climbing torque.
B. Efficiency and Thermal Management
Energy efficiency directly impacts scooter range and battery costs:
- IE3/IE4 Standards: Motors achieving >90% efficiency (e.g., Constar Motion’s BLDC series) extend range by 15–20% per charge.
- Thermal Resilience: Class H insulation (180°C rating) prevents demagnetization in high-amperage scenarios. Liquid cooling or aluminum housings dissipate heat in sustained loads.
- Partial-Load Optimization: Motors maintaining >85% efficiency at 50% load reduce energy waste in stop-and-go traffic.
C. Form Factor and Integration
- Hub vs. Mid-Drive: Hub motors simplify assembly but increase unsprung weight. Mid-drive motors (e.g., Outrunner designs) offer better weight distribution but require chain drives.
- Frame Compatibility: NEMA 23–34 standards ensure bracket alignment. Slim designs (<80mm diameter) fit standard dropout widths.
- IP Ratings: IP65 or higher protects against dust and water ingress in urban environments.
II. Cost Optimization Strategies for Mass Production
A. Component-Level Value Engineering
- Magnet Selection: Ferrite magnets reduce costs by 20–30% versus neodymium but with 15% lower torque density. Hybrid designs balance performance and cost.
- Copper vs. Aluminum Windings: Copper windings increase efficiency by 5–7% but raise material costs. Aluminum is cheaper but requires larger gauges.
- Controller Integration: Combined motor-controller units (e.g., ATO’s KBL series) save $8–12/unit in wiring and assembly.
B. Supply Chain and Manufacturing
- MOQ Leverage: Orders of 10,000+ units typically reduce unit costs by 25–40%. Regional sourcing (e.g., Shenzhen-based suppliers) cuts logistics lead times.
- Automated Testing: In-house validation of efficiency, vibration, and EMI ensures consistency without third-party fees.
- Warranty Structuring: 2-year warranties with pro-rata terms limit liability while assuring quality.
C. Total Cost of Ownership (TCO)
| Factor | Standard Motor | Optimized Motor |
|---|---|---|
| Unit Cost | $85 | $62 |
| Efficiency Penalty | 12% range loss | 3% range loss |
| Warranty Claims | 8% failure rate | 2% failure rate |
| 3-Year TCO | $97 | $68 |
III. Case Studies: Real-World OEM Implementations

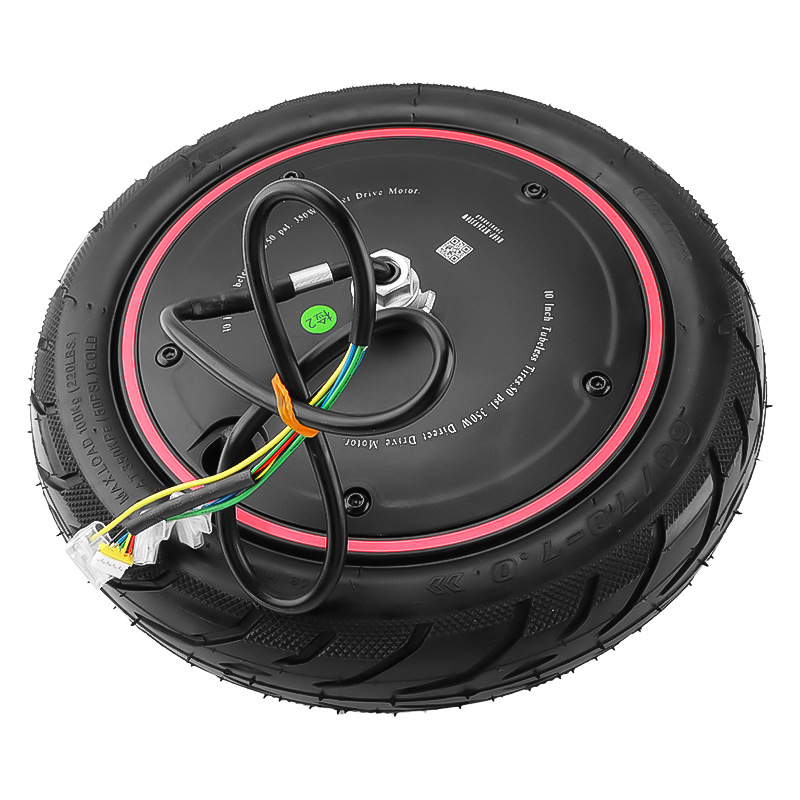

A. Urban Commuter Scooter (500W Hub Motor)
- Motor: 48V 500W hub motor (e.g., Ningbo Jiangbei’s spoke motor design).
- Performance: 45 km/h top speed, 40 km range per charge.
- Cost: $55/unit at 50,000-unit MOQ.
- Outcome: 15% higher customer satisfaction due to smooth acceleration and low maintenance.
B. Performance Scooter (1200W Mid-Drive)
- Motor: 72V 1200W outrunner motor with planetary gearbox.
- Performance: 70 km/h top speed, 30% gradeability.
- Challenges: $12 higher assembly cost due to chain drive integration.
- Solution: Gearbox pre-lubrication reduced warranty claims by 22%.
IV. Regulatory and Sustainability Considerations
- Noise and EMI: EN 15194 compliance requires <70 dB operational noise and suppressed electromagnetic interference.
- Recyclability: Motors with separable components (magnets, copper, steel) align with EU WEEE directives.
- Carbon Footprint: Suppliers using renewable energy in production (e.g., Constar Motion) reduce Scope 3 emissions for OEMs.
V. Future-Proofing with Technology Trends
- IoT Integration: Motors with embedded sensors enable predictive maintenance and over-the-air updates.
- Material Innovations: Graphene-enhanced windings and composite housings reduce weight by 20%.
- Modular Designs: Plug-and-play windings allow voltage upgrades (e.g., 48V to 72V) without full motor replacement.
Why Greensky Power Excels in E-Scooter BLDC Motors
- Performance-Verified Motors: Third-party tested for IEC 60034-30-2 efficiency and ISO 9001 durability.
- Cost Transparency: No hidden fees for customization or certification.
- Global Support: Regional warehouses in EU and North America ensure 15-day delivery.
“Mass production isn’t about cutting corners—it’s about precision engineering at scale. Our motors ensure every watt and dollar works for your bottom line.”
— Greensky Power E-Mobility Team
Request OEM Pricing
Submit Specifications| Email: [email protected]
Benefits:
- Free TCO analysis for your production volume
- Prototype samples within 10 days
- Technical drawings for CAD integration
