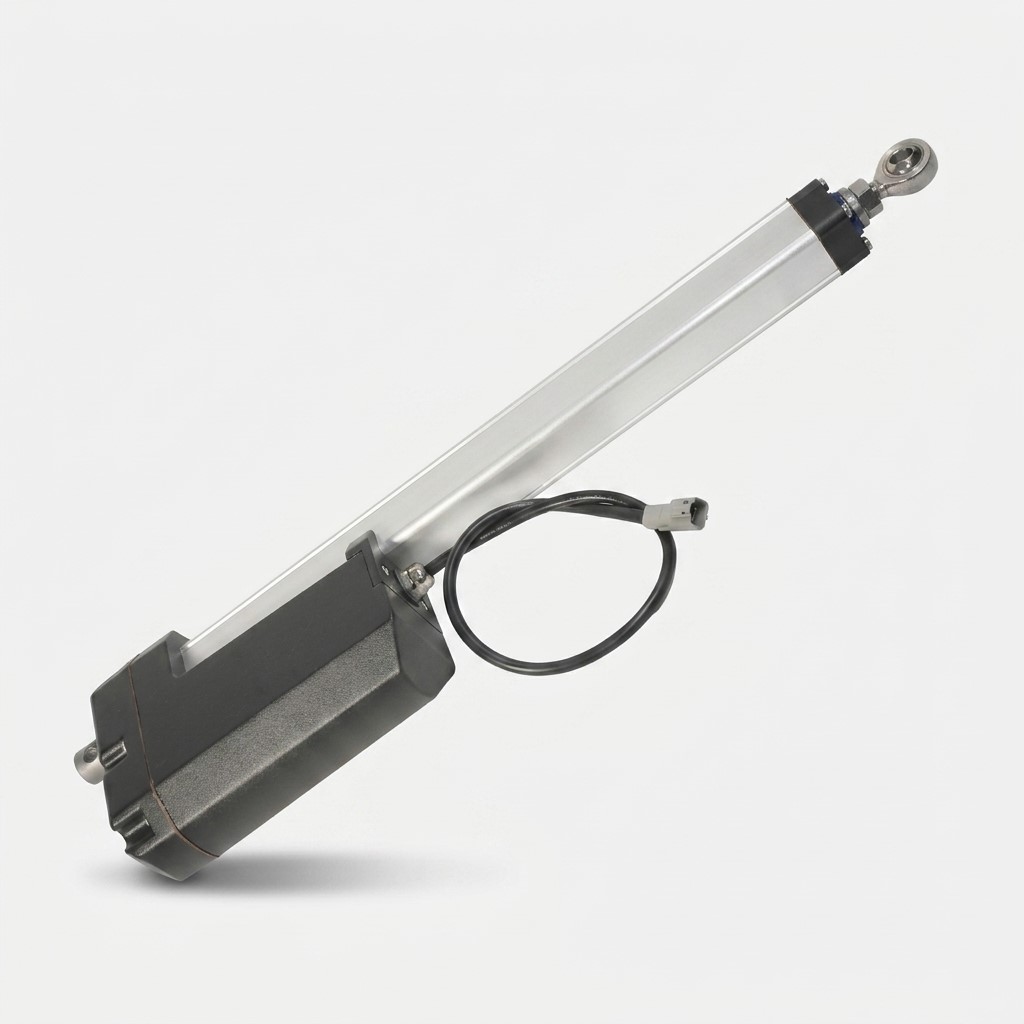

12V Linear Actuator Motor
Overview:
A compact 12V DC linear actuator that converts rotary motion from a DC motor into precise push-pull linear movement. With built-in limit switches, high thrust, low noise and IP65 protection, it is widely used in home automation, medical equipment, automotive, solar tracking, robotics and industrial machinery. Stroke length and mounting options can be customized to meet different application requirements.
Key Specifications
| Parameter | Value |
|---|---|
| Rated voltage | 12V DC (24V / 36V optional) |
| Max. thrust | 600 N ~ 6,000 N (model dependent) |
| Rated thrust | 480 N ~ 4,800 N |
| Stroke length | 20 ~ 1,000 mm (customizable) |
| No-load speed | 5 ~ 60 mm/s |
| Full-load speed | 4 ~ 45 mm/s |
| Duty cycle | 25% (S2) |
| Protection class | IP65 (IP66 optional) |
| Noise level | ≤ 50 dB |
| Limit switch | Built-in (auto stop at end of stroke) |
| Operating temperature | -40℃ ~ +65℃ |
| Mounting | Clevis to clevis (brackets available) |
12V Linear Actuator Applications
Compact 12V linear actuators convert rotary motion into precise push-pull movement, delivering quiet, reliable and energy-efficient linear motion across a wide range of smart and industrial applications.
Smart Home & Furniture
Used in motorized TV lifts, adjustable standing desks, recliners, beds and smart cabinets, providing smooth height adjustment and quiet operation.
Medical & Healthcare
Ideal for hospital beds, patient lifts, dental chairs and rehabilitation equipment, supporting precise positioning, safety and reliable low-voltage operation.
Automotive & RV
Suitable for RV slide-outs, tailgates, hatch lifts, hood struts and seat adjustment, compatible with standard 12V vehicle battery systems.
Solar & Agriculture
Powers solar panel tilt systems, greenhouse vents, feeding systems and irrigation valves, enabling energy-efficient outdoor automation.
Robotics & Automation
Used in robot joints, automated doors, conveyor diverters and pick-and-place mechanisms requiring repeatable linear positioning and feedback control.
Industrial Machinery
Built for valve control, clamping fixtures, lifting platforms and packaging machines, delivering high thrust and dependable performance in demanding industrial environments.
Engineered for Precise Linear Motion
The 12V linear actuator combines a compact DC motor with an efficient gear mechanism to deliver smooth, controllable push-pull motion, making it an ideal choice for automation, mobility and positioning systems.
Application scenarios
Conveyor System, Pellet Boiler System, Packaging Machines, Food Machines, Automated Machinery.
Conveyor System
Pellet Boiler System
Packaging Machines
Food Machines
Automated Machinery
