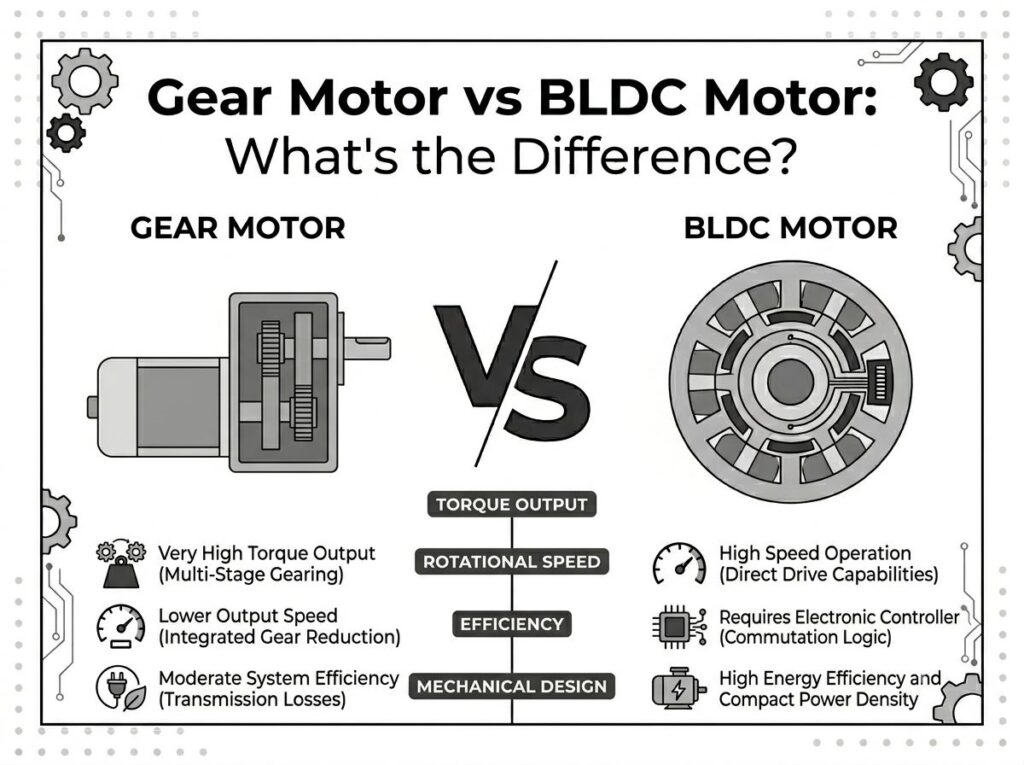

Gear Motor vs BLDC Motor: Was ist der Unterschied??

Choosing the correct drive system is one of the most important engineering decisions in machine design. Whether you are developing a robotic platform, an AGV, an automated gate, a conveyor, or an electric lawn mower, understanding the difference between a gear motor and a Bürstenloser Gleichstrom (BLDC) Motor- is essential for achieving the desired balance of speed, Drehmoment, Effizienz, Zuverlässigkeit, und kosten.

One common misconception is that a gear motor and a BLDC motor are competing motor technologies. In reality, they describe two different concepts. A BLDC motor refers to the motor technology itself, while a gear motor refers to a complete drive assembly that combines a motor with a gearbox. In many industrial applications, these two concepts work together rather than compete with each other.

Zum Beispiel, a planetary BLDC gear motor combines the high efficiency of a brushless motor with the torque multiplication provided by a planetary gearbox. This configuration has become the preferred solution for robotics, AGVs, automated doors, medizinische Ausrüstung, und industrielle Automatisierung.

This engineering guide explains the differences between gear motors and BLDC motors, compares their performance characteristics, and provides practical recommendations for OEM engineers and purchasing managers selecting the most suitable drive solution.

Schnelle Antwort

A gear motor is not a different motor type from a BLDC motor. A gear motor is an assembly consisting of an electric motor and a gearbox, while a BLDC motor refers to the motor technology itself. Many modern gear motors actually use BLDC motors combined with planetary, Sporn, or worm gearboxes to achieve higher torque and lower output speed.

If your application requires high rotational speed and compact design, a BLDC motor alone may be sufficient. If it requires high torque at low speed, an integrated BLDC gear motor is usually the better engineering solution.

What Is a Gear Motor?

EIN Getriebemotor is an integrated drive unit consisting of two primary components:

• Elektromotor
• Getriebe (Speed Reducer)

The gearbox reduces the output speed while proportionally increasing torque. This allows relatively small motors to drive heavy loads that would otherwise require significantly larger motors.

Gear Motor Structure

The basic structure of a gear motor includes:

• Motor housing
• Rotor and stator assembly
• Getriebeuntersetzungsmechanismus
• Abtriebswelle
• Lager
• Lubrication system
• Sealing components

The motor may be a DC motor, AC Motor, BLDC-Motor, Schrittmotor, or servo motor depending on application requirements.

How Does a Gearbox Work?

A gearbox transmits mechanical power through a series of gears with different diameters. As rotational speed decreases, torque increases according to the gear ratio.

Zum Beispiel:

*Actual torque depends on gearbox efficiency and mechanical losses.

Main Types of Gear Motors

Stirnradgetriebemotor

Spur gear motors use straight-cut gears and offer a simple, economical solution for general industrial applications. They are easy to manufacture and suitable for moderate torque requirements.

Zu den typischen Anwendungen gehören::

• Packaging equipment
• Förderer
• Office automation
• Small machinery

Planetengetriebemotor

Planetary gear motors use a sun gear, Planetenräder, and an internal ring gear to achieve high torque density in a compact package.

Zu den Vorteilen gehören:

• High torque capacity
• Excellent load distribution
• Compact dimensions
• Hohe Effizienz
• Low backlash options

Planetary gear motors are widely used in robotics, AGVs, medizinische Ausrüstung, und industrielle Automatisierung.

Schneckengetriebemotor

Worm gear motors employ a worm shaft driving a worm wheel to achieve large reduction ratios.

Zu den Vorteilen gehören:

• Very high reduction ratios
• Compact right-angle output
• Self-locking capability in many designs

Common applications include gates, Aufzüge, positioning equipment, and security systems.

Stirnradgetriebemotor

Helical gear motors utilize angled gear teeth to provide smoother and quieter operation than spur gears.

Zu den Vorteilen gehören::

• Höhere Effizienz
• Lower vibration
• Reduced noise
• Lange Lebensdauer

These motors are commonly found in heavy-duty industrial machinery, Förderer, and continuous-duty automation systems.

Was ist ein BLDC-Motor??

A Brushless DC Motor (BLDC-Motor) is a permanent magnet synchronous motor that uses electronic commutation instead of brushes and a mechanical commutator.

Im Vergleich zu herkömmlichen Bürstenmotoren, BLDC-Motoren bieten einen deutlich höheren Wirkungsgrad, längere lebensdauer, geringerer Wartungsaufwand, and superior power density.

BLDC Motor Structure

A standard BLDC motor consists of:

• Permanentmagnetrotor
• Stator with multi-phase windings
• Elektronische Steuerung
• Power inverter
• Hall-effect sensors (optional)
• Motor housing

Permanentmagnetrotor

Unlike induction motors, BLDC motors use high-performance permanent magnets mounted on the rotor.

This design eliminates rotor copper losses and contributes to higher efficiency and improved torque density.

Elektronische Kommutierung

Instead of mechanical brushes, electronic controllers energize stator windings according to rotor position.

Electronic commutation provides:

• Reduzierte Wartung
• Höhere Effizienz
• Long operational life
• Verbesserte Zuverlässigkeit
• Lower electrical noise

Hall-Sensoren

Many BLDC motors incorporate Hall-effect sensors that detect rotor position.

These sensors help the controller determine the correct timing for phase switching, improving startup performance and low-speed operation.

Advanced sensorless BLDC systems estimate rotor position using back electromotive force (Back EMF), eliminating the need for Hall sensors in many applications.

BLDC Controller

The controller performs several critical functions:

• Electronic commutation
• Geschwindigkeitsregulierung
• Current limiting
• Drehmomentkontrolle
• PWM generation
• Protection functions

Because the controller is programmable, BLDC motors can support variable-speed operation, regeneratives Bremsen, Kommunikationsprotokolle, and advanced diagnostics.

Typical BLDC Applications

• Electric lawn mowers
• Robotic lawn mowers
• HVAC-Systeme
• Wasserpumpen
• Kühlventilatoren
• E-Bikes
• Medizinische Ausrüstung
• Industrielle Automatisierung
• Elektrowerkzeuge

Can a BLDC Motor Be a Gear Motor?

Ja. In der Tat, this is one of the most important concepts engineers should understand.

A BLDC motor and a gear motor are not mutually exclusive. Stattdessen, a BLDC motor can serve as the driving source inside a gear motor assembly.

Engineering Relationship

BLDC-Motor
+
Planetengetriebe
=
BLDC-Planetengetriebemotor

This integrated configuration combines the strengths of both technologies:

• High efficiency from the BLDC motor
• High torque from the gearbox
• Lower output speed
• Improved load capability
• Compact overall dimensions

Why OEM Manufacturers Prefer BLDC Gear Motors

Instead of selecting a larger direct-drive motor, many OEM manufacturers choose a compact BLDC motor paired with a precision gearbox. This approach provides higher torque while reducing system size, Gewicht, and overall cost.

BLDC gear motors have become the preferred solution in applications such as:

• Autonome mobile Roboter (AMRs)
• Fahrerlose Transportfahrzeuge (AGVs)
• Kollaborative Roboter
• Electric wheel drives
• Medizinische Pumpen
• Smart locks
• Turnstile systems
• Electric actuators

For OEM projects requiring customized output speed, Drehmoment, Wellenkonfigurationen, and mounting interfaces, integrated BLDC gear motors provide far greater design flexibility than standalone motors.

Gear Motor vs BLDC Motor: Hauptunterschiede

Although both are frequently compared, they represent different engineering concepts. The following table summarizes their primary differences.

Rather than asking which technology is better, engineers should determine whether the application requires additional torque multiplication. If so, integrating a gearbox with a BLDC motor is often the optimal solution.

Drehmomentvergleich

Torque is one of the primary reasons engineers choose gear motors over direct-drive motors.

A standalone BLDC motor naturally operates at relatively high rotational speeds with moderate output torque. By adding a gearbox, the rotational speed is reduced while torque increases proportionally according to the gear ratio.

Why Gear Motors Produce Higher Torque

The relationship can be summarized as follows:

Gear Ratio
     ↓
Output Speed Decreases
     ↓
Output Torque Increases

Zum Beispiel, a BLDC motor producing 0.5 N·m bei 3,000 RPM can deliver approximately 5 N·m bei 300 RPM when paired with a 10:1 Planetengetriebe, accounting for gearbox efficiency losses.

BLDC Direct Drive Advantages

• High rotational speed
• Hervorragende Effizienz
• Einfache mechanische Struktur
• Reduzierte Wartung

BLDC Gear Motor Advantages

• Higher output torque
• Lower output speed
• Improved load capacity
• Better low-speed controllability
• Smaller motor size for equivalent output torque

Speed Comparison

Speed characteristics differ significantly between standalone BLDC motors and gear motors.

For applications such as centrifugal pumps, Kühlventilatoren, and mower blade drives, the high-speed capability of a direct BLDC motor is advantageous.

Umgekehrt, applications requiring controlled low-speed movement—such as robotic wheels, AGVs, electric actuators, Förderer, and turnstiles—benefit significantly from gear reduction.

Continue to Part 2: Effizienzvergleich, Kostenvergleich, Robotik, AGV, Rasenmäher, Turnstile Applications, Auswahlhilfe, Warum sich OEM-Käufer für Greensky Power entscheiden, FAQ, Internal Linking Strategy, and References.

Effizienzvergleich

Efficiency is a key engineering factor when selecting between a standalone BLDC motor and a gear motor system. It directly affects energy consumption, thermisches Verhalten, Akkulaufzeit, and long-term operating cost.

BLDC motors are widely recognized for their high electrical efficiency due to the absence of brush friction and rotor copper losses. Jedoch, when a gearbox is introduced, mechanical losses must also be considered.

Effizienz des BLDC-Motors

A standalone BLDC motor typically achieves high efficiency across a wide operating range:

• Typical efficiency: 85%–95 %
• Low rotor losses due to permanent magnet design
• Minimal maintenance losses (no brushes)
• High efficiency at rated speed

Gear Motor Efficiency

Gear motor efficiency depends heavily on gearbox type and design quality:

• Planetengetriebe: 95%–98% efficiency
• Stirnradgetriebe: 96%–98% efficiency
• Spur gearbox: 94%–97% efficiency
• Worm gearbox: 50%–90% efficiency (highly load-dependent)

The total system efficiency of a BLDC gear motor is the product of motor efficiency and gearbox efficiency.

Zum Beispiel:

0.92 (Motor-) × 0.96 (Getriebe) = 0.883 → 88.3% system efficiency

Efficiency Trade-Off Summary

In most OEM applications, planetary BLDC gear motors provide the best compromise between efficiency, Drehmomentdichte, und kompaktes Design.

Kostenvergleich

Cost is often the decisive factor in OEM and industrial procurement decisions. Jedoch, it is important to consider not only unit cost but also total system cost.

BLDC Motor Cost Structure

• Motor cost: Low to medium
• Controller required: Ja
• Sensor options: Saal / sensorlos
• Installation complexity: Niedrig

Gear Motor Cost Structure

• Motor cost: Similar or slightly lower
• Gearbox cost: Additional component
• Mechanical integration cost: Höher
• Maintenance cost: Depends on application

Total System Cost Comparison

Although gear motors appear more expensive, they often reduce system-level costs by eliminating the need for larger motors, complex transmission systems, or high-current power electronics.

Which Is Better for Robotics?

Robotics is one of the most demanding application fields for motion control systems. It requires a combination of precision, torque control, kompaktes Design, and dynamic response.

In most robotic systems, neither a standalone BLDC motor nor a pure gear motor is sufficient on its own. Stattdessen, a BLDC gear motor system is commonly used.

Why Robotics Prefers BLDC Gear Motors

• High torque density in compact size
• Smooth low-speed control
• Precise motion via encoder integration
• Reduced inertia with planetary gear systems
• High efficiency for battery-powered robots

Typical Robotics Applications

• Kollaborative Roboter (Cobots)
• Industrial robotic arms
• Serviceroboter
• Inspection robots
• Educational robotics platforms

For most robotic applications, the combination of a BLDC motor with a planetary gearbox provides the best balance between precision and torque.

Which Is Better for AGV and AMR?

Fahrerlose Transportfahrzeuge (AGVs) and Autonomous Mobile Robots (AMRs) require reliable, effizient, and compact drive systems.

BLDC Motor in AGVs

• High efficiency for long battery life
• Smooth acceleration and deceleration
• Geringer Wartungsaufwand

Gear Motor in AGVs

• High torque for load carrying
• Stable low-speed operation
• Improved climbing ability

Industry Practice

Most modern AGV/AMR designs use BLDC planetary gear motors because they provide:

• Compact wheel drive solutions
• Integrated encoder feedback
• High torque at low RPM
• Energy-efficient operation

Deswegen, instead of choosing between BLDC or gear motor, engineers typically select an integrated solution combining both technologies.

Which Is Better for Lawn Mowers?

Lawn mower systems require both cutting power and mobility drive control, often under harsh environmental conditions.

Blade Drive System

For blade rotation, high-speed operation is essential. A standalone BLDC motor is typically preferred:

• High RPM capability
• Efficient cutting performance
• Direct drive simplicity

Wheel Drive System

For mobility, torque is more important than speed:

• BLDC gear motors provide better traction
• Planetary gearboxes improve climbing ability
• Stable low-speed control enhances navigation

Recommended Configuration

This hybrid architecture is widely used in modern robotic lawn mowers.

Which Is Better for Turnstiles?

Turnstiles require controlled motion, reliable torque output, and long service life under frequent operation cycles.

In most access control systems, gear reduction is essential for smooth and controlled movement.

Why Gear Motors Dominate Turnstiles

• Hohes Drehmoment bei niedriger Drehzahl
• Precise rotational control
• Selbsthemmungsfähigkeit (worm gear options)
• High durability for continuous use

The most common solution is a planetary BLDC gear motor, which provides both efficiency and torque stability.

How to Choose Between Gear Motors and BLDC Motors

The correct selection depends on application requirements rather than motor type preference.

This table highlights a key engineering principle: modern systems rarely choose between BLDC and gear motors in isolation. Stattdessen, they combine both to achieve optimal performance.

Warum sich OEM-Käufer für Greensky Power entscheiden

Greensky Power provides integrated motor and gearbox solutions designed for OEM manufacturers in global industrial markets.

Core Product Portfolio

• BLDC-Motoren
• Planetengetriebemotoren
• Wurmgetriebemotoren
• Spur Gear Motors
• Helical Gear Systems

OEM Engineering Capabilities

• Custom gearbox ratio design
• Motor-controller integration
• Encoder feedback solutions
• OEM housing customization
• Rapid prototyping and sampling

Key Application Industries

• Robotik und Automatisierung
• AGV and AMR systems
• HVAC equipment
• Lawn and garden machinery
• Security and access control systems
• Industrielle Förderbänder

Häufig gestellte Fragen (FAQ)

Is a gear motor the same as a BLDC motor?

Nein. A gear motor is a mechanical assembly combining a motor and gearbox, while a BLDC motor refers specifically to motor technology using electronic commutation.

Can a BLDC motor have a gearbox?

Ja. In der Tat, many industrial systems use BLDC motors combined with planetary, Sporn, or worm gearboxes to achieve higher torque output.

Was ist besser?, a gear motor or a BLDC motor?

Neither is universally better. BLDC motors are ideal for high-speed applications, while gear motors are better for high-torque, low-speed requirements.

Why use a planetary gearbox with a BLDC motor?

A planetary gearbox increases torque density while maintaining compact size and high efficiency, making it ideal for robotics and AGV systems.

What applications need BLDC gear motors?

Common applications include robotics, AGVs, electric wheel drives, Drehkreuze, medizinische Pumpen, and automated industrial systems.

Referenzen

1. https://www.ieee.org
2. https://ieeexplore.ieee.org
3. https://www.nidec.com
4. https://www.siemens.com
5. https://new.abb.com
6. https://www.weg.net
7. https://www.energy.gov
8. https://www.mathworks.com
9. https://www.ti.com
10. https://www.microchip.com
