BLDC Motor vs Servo Motor: ความแตกต่างคืออะไร? คู่มือการเปรียบเทียบทางวิศวกรรมฉบับสมบูรณ์

BLDC Motor vs Servo Motor: ความแตกต่างคืออะไร?

Selecting the right motor technology is one of the most important decisions in modern equipment design. Whether developing a robotic arm, an automated guided vehicle (เอจีวี), an industrial conveyor, a lawn mower, or a precision manufacturing machine, engineers must carefully evaluate performance requirements, control complexity, ความแม่นยำ, ประสิทธิภาพ, and total system cost.

Among the most commonly compared technologies are Brushless DC (บีแอลดีซี) motors and servo motors. While both are widely used in motion control applications, they are not direct equivalents. ในความเป็นจริง, one of the biggest misconceptions in the motor industry is assuming that a servo motor is simply another type of motor.

The reality is that a BLDC motor is a motor technology, while a servo motor is a complete motion control system that combines a motor, feedback device, and controller to achieve highly precise positioning and dynamic performance.

This guide provides a detailed engineering comparison of BLDC motors and servo motors, helping OEM manufacturers, วิศวกร, and procurement teams determine which solution best fits their application requirements.

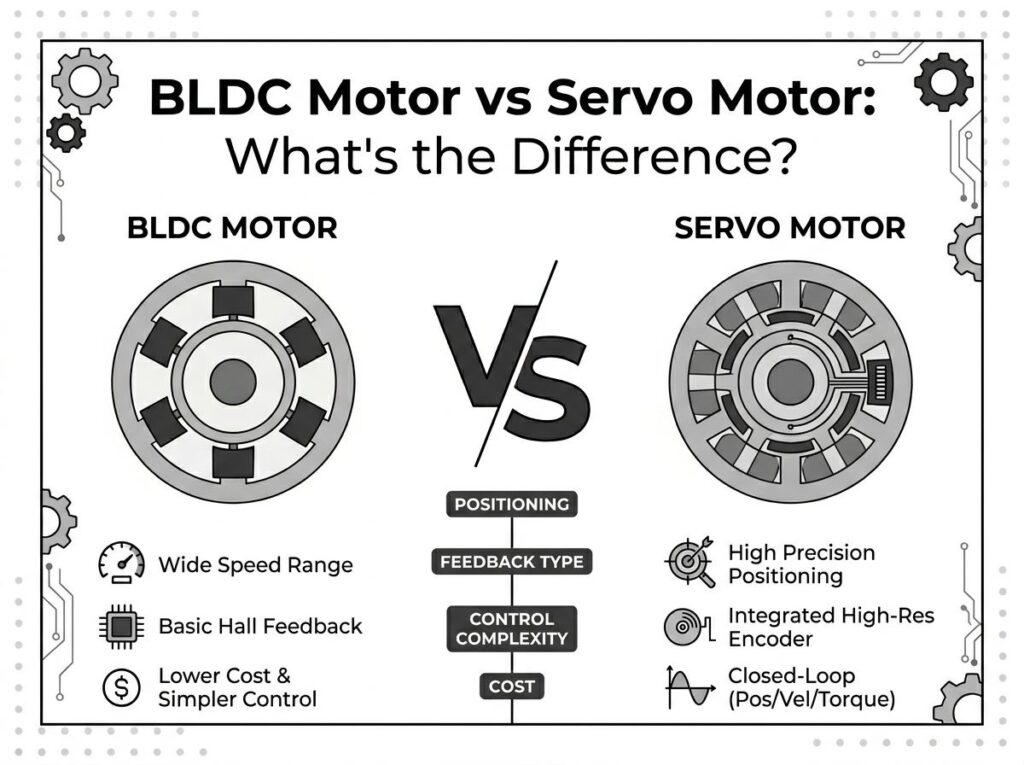

BLDC Motor vs Servo Motor

BLDC motors and servo motors are both used for precise motion control, but a BLDC motor is a motor type, while a servo motor is a complete motion control system that includes a motor, ตัวเข้ารหัส, and controller. Servo motors provide higher positioning accuracy and dynamic response, whereas BLDC motors offer lower cost and simpler implementation.

โดยทั่วไปแล้ว, servo systems are preferred for robotics, อุปกรณ์ซีเอ็นซี, and precision automation, while BLDC motors are often selected for lawn mowers, ระบบปรับอากาศ, ปั๊ม, industrial drives, and cost-sensitive OEM products.

มอเตอร์ BLDC คืออะไร?

A Brushless DC Motor (มอเตอร์ BLDC) is an electronically commutated motor that eliminates the brushes and commutator used in traditional DC motors. Instead of mechanical switching, electronic controllers energize stator windings according to rotor position.

BLDC motors have become one of the fastest-growing motor technologies due to their high efficiency, ขนาดกะทัดรัด, อายุการใช้งานยาวนาน, and excellent power density.

BLDC Motor Structure

A typical BLDC motor consists of:

• โรเตอร์แม่เหล็กถาวร
• Laminated stator core
• Multi-phase stator windings
• Hall-effect sensors (optional)
• ตัวควบคุมอิเล็กทรอนิกส์
• Power inverter stage

ไม่เหมือนมอเตอร์ที่ถูกแปรง, no physical contact exists between stationary and rotating electrical components.

การแลกเปลี่ยนทางอิเล็กทรอนิกส์

The key innovation behind BLDC motors is electronic commutation.

The motor controller continuously monitors rotor position and energizes stator windings in a sequence that generates a rotating magnetic field. The rotor follows this field and produces rotational motion.

Electronic commutation provides several advantages:

• No brush wear
• Lower maintenance requirements
• Reduced electrical noise
• ประสิทธิภาพสูงขึ้น
• Longer operational life

Hall Sensors

Many BLDC motors use Hall-effect sensors to determine rotor position.

These sensors detect magnetic field changes as the rotor rotates and provide position feedback to the controller.

Hall sensors enable:

• Reliable startup performance
• Accurate commutation timing
• Improved low-speed control
• Enhanced torque production

Modern sensorless BLDC systems can estimate rotor position through back-EMF detection, eliminating the need for Hall sensors in certain applications.

ตัวควบคุมมอเตอร์ BLDC

The controller acts as the brain of the motor system.

Functions include:

• การควบคุมความเร็ว
• Current control
• Torque management
• Protection functions
• PWM generation
• Communication interfaces

The simplicity of BLDC control is one reason these motors are widely used in commercial products requiring a balance between performance and affordability.

Common BLDC Applications

• Electric lawn mowers
• Robotic lawn mowers
• HVAC blowers
• Water pumps
• Industrial fans
• AGV
• Turnstile systems
• รถจักรยานไฟฟ้า
• อุปกรณ์การแพทย์
• Consumer appliances

What Is a Servo Motor?

One of the most misunderstood concepts in motion control is the definition of a servo motor.

Many people believe that a servo motor is a specific motor type. In reality, a servo system is a complete closed-loop motion control solution.

Servo System Architecture

A servo system consists of:

Servo System =
เครื่องยนต์
+
Encoder
+
คอนโทรลเลอร์

The motor itself may be:

• PMSM motor
• มอเตอร์บีแอลดีซี
• AC synchronous motor
• Direct drive motor

The defining characteristic is not the motor technology but the use of continuous feedback and closed-loop control.

Core Components of a Servo System

1. เครื่องยนต์

The motor generates rotational motion and torque.

Modern industrial servo systems most commonly use PMSM motors because of their smooth torque characteristics and high efficiency.

2. Encoder

The encoder continuously measures:

• Position
• ความเร็ว
• Direction
• Angular displacement

Encoder feedback allows the controller to make real-time corrections.

3. Servo Drive

The servo drive processes feedback signals and adjusts current, แรงดันไฟฟ้า, and switching patterns to achieve target motion profiles.

The drive ensures:

• ตำแหน่งที่แม่นยำ
• Stable speed control
• Dynamic torque response
• Accurate acceleration and deceleration

Why Servo Systems Are Different

Unlike standard BLDC motor systems that may operate open-loop or semi-closed-loop, servo systems constantly compare commanded motion with actual motion.

If an error occurs, the controller immediately compensates.

This feedback mechanism enables:

• Micron-level positioning
• High-speed dynamic response
• Exceptional repeatability
• Precise trajectory control

Typical Servo Applications

• Industrial robots
• ศูนย์เครื่องจักรกลซีเอ็นซี
• Semiconductor equipment
• เครื่องจักรบรรจุภัณฑ์
• Automated assembly systems
• Medical robots
• Precision inspection equipment
• Aerospace motion systems

BLDC vs Servo Motor: ความแตกต่างที่สำคัญ

Although BLDC motors and servo systems can sometimes use similar motor technologies internally, their intended functions and performance levels differ significantly.

The most important distinction is that servo systems prioritize precision and feedback control, while BLDC systems prioritize efficiency, simplicity, and cost effectiveness.

Working Principle Comparison

Understanding the operating principles of BLDC motors and servo systems helps clarify why their performance characteristics differ.

How BLDC Motors Work

BLDC motors rely on electronic commutation to replace mechanical brushes.

The controller energizes stator windings in a predefined sequence based on rotor position information.

Key operating characteristics:

• Electronic commutation
• Hall sensor feedback (optional)
• PWM speed control
• Open-loop or semi-closed-loop operation

Most BLDC applications focus on maintaining speed rather than achieving precise position control.

How Servo Systems Work

Servo systems continuously monitor actual motor position and compare it with commanded position.

Any deviation immediately triggers corrective action by the controller.

This closed-loop architecture enables:

• High-precision positioning
• Accurate trajectory tracking
• Rapid response to load changes
• Superior torque control

The encoder serves as the critical feedback device that makes servo control possible.

Open Loop vs Closed Loop

Position Accuracy Comparison

For engineers evaluating motion control systems, position accuracy is often the most important factor.

This is where servo systems demonstrate their greatest advantage.

BLDC Position Accuracy

Standard BLDC motors are typically designed for speed control and torque generation rather than precision positioning.

Without encoder feedback, positional accuracy is inherently limited.

Typical BLDC characteristics include:

• Moderate positioning capability
• Good speed regulation
• Suitable for continuous rotation applications
• Limited positioning precision

Servo Position Accuracy

Servo systems are specifically engineered for accurate positioning.

High-resolution encoders enable the controller to track rotor movement continuously and apply corrections in real time.

Typical servo advantages include:

• Sub-degree positioning accuracy
• Excellent repeatability
• Precise trajectory control
• High-speed response
• Minimal positioning error

This capability explains why robotics, เครื่องซีเอ็นซี, semiconductor equipment, and automated manufacturing systems overwhelmingly rely on servo technology.

Continue to Part 2: การเปรียบเทียบแรงบิด, Speed Control Comparison, Efficiency Comparison, Cost Comparison, Robotics Applications, เอจีวี & AMR Applications, Lawn Mower Applications, Industrial Automation Selection Guide, เหตุใดผู้ซื้อ OEM จึงเลือก Greensky Power, คำถามที่พบบ่อย, Internal Link Strategy, and References.

การเปรียบเทียบแรงบิด

Torque is one of the most critical parameters when evaluating motion control systems. It determines a motor’s ability to accelerate loads, overcome resistance, maintain position, and perform dynamic movements under varying operating conditions.

In mechanical systems, torque can be expressed as:

τ = rFsin(θ)

ที่ไหน:

• ที = Torque (น.ม)
• ร = Distance from pivot point (ม.)
• เอฟ = Applied force (เอ็น)
• θ = Angle between force and lever arm

ตัวอย่างเช่น:

τ = (3)(6)sin(90°) - 18 น.ม

Only the force component perpendicular to the lever arm contributes to torque generation.

Continuous Torque

Continuous torque represents the amount of torque a motor can produce indefinitely without overheating.

Peak Torque

Peak torque refers to the maximum short-duration torque a motor can deliver.

Servo motors are specifically designed to provide significantly higher peak torque during acceleration, positioning, and sudden load changes.

This is especially important in robotics, อุปกรณ์ซีเอ็นซี, and automated assembly systems.

แรงบิดคอก

Stall torque is the torque produced when the motor shaft is not rotating.

Servo systems generally offer superior stall torque management because encoder feedback allows precise current regulation while maintaining shaft position.

Torque Performance Summary

For demanding motion-control applications, servo systems typically outperform standard BLDC motors in torque control and dynamic response.

Speed Control Comparison

Speed regulation is another major difference between BLDC motors and servo systems.

BLDC Speed Control

BLDC motors typically use:

• Open-loop control
• Semi-closed-loop control
• PWM speed regulation
• Hall sensor commutation

Speed control performance is generally sufficient for applications where exact positioning is not required.

Examples include:

• Lawn mowers
• แฟนๆ
• ปั๊ม
• ระบบปรับอากาศ
• สายพานลำเลียง

Servo Speed Control

Servo systems utilize full closed-loop control.

The controller continuously compares:

• Commanded speed
• Actual speed
• เงื่อนไขการโหลด
• Position feedback

Real-time corrections enable highly stable speed regulation even under rapidly changing loads.

Speed Control Comparison Table

BLDC vs Servo Efficiency Comparison

Efficiency directly affects operating costs, อายุการใช้งานแบตเตอรี่, thermal performance, and overall equipment reliability.

Both technologies offer significantly higher efficiency than brushed DC motors.

BLDC Motor Efficiency

• Typically 85–95%
• Low rotor losses
• Excellent battery utilization
• ความหนาแน่นของพลังงานสูง

Servo Motor Efficiency

Modern servo systems often use PMSM motors internally, เปิดใช้งาน:

• 90–98% efficiency
• ปรับการควบคุมปัจจุบันให้เหมาะสม
• Reduced harmonic losses
• Superior energy utilization

Efficiency Comparison Table

For most commercial equipment, BLDC efficiency is already excellent. อย่างไรก็ตาม, servo systems maintain an advantage in precision applications requiring maximum performance.

BLDC vs Servo Cost Comparison

Cost is often the decisive factor for OEM buyers.

Although servo systems provide superior performance, they require additional hardware and software components.

For applications where ultra-high precision is unnecessary, BLDC motors often provide the best return on investment.

Which Is Better for Robotics?

Robotics is one of the highest-value markets for motion control technologies.

Most robotic systems require:

• ตำแหน่งที่แม่นยำ
• Smooth trajectory control
• Fast acceleration
• High repeatability
• Closed-loop feedback

Because of these requirements, servo systems dominate industrial robotics.

Why Servo Motors Win in Robotics

• Encoder feedback
• Micron-level positioning capability
• Superior dynamic response
• High precision trajectory control
• Excellent repeatability

Winner for Robotics: เซอร์โวมอเตอร์

Which Is Better for AGV and AMR?

ยานพาหนะนำทางอัตโนมัติ (AGV) and Autonomous Mobile Robots (AMRs) occupy a unique middle ground.

When BLDC Is Preferred

• Cost-sensitive AGVs
• Warehouse transportation
• Basic navigation systems
• Long battery life requirements

When Servo Is Preferred

• High-speed navigation
• Precision docking
• Collaborative robots
• Advanced autonomous systems

Many modern AGVs successfully utilize BLDC drive motors with encoder feedback, creating a hybrid solution between traditional BLDC and servo architectures.

Winner for AGVs: Depends on navigation precision requirements.

Which Is Better for Lawn Mowers?

Lawn mowers require:

• High torque output
• Outdoor durability
• Battery efficiency
• Cost competitiveness
• Reliable operation

Unlike robotics, lawn mowers rarely require sub-degree positioning accuracy.

แทน, manufacturers prioritize efficiency, ความน่าเชื่อถือ, and affordability.

Why BLDC Motors Are Ideal for Lawn Mowers

• Lower system cost
• Excellent efficiency
• แรงบิดเริ่มต้นสูง
• Simple electronic architecture
• Proven outdoor reliability

This is one reason why modern cordless lawn mowers and robotic lawn mowers increasingly rely on BLDC technology.

Winner for Lawn Mowers: มอเตอร์ BLDC

Which Is Better for Industrial Automation?

Industrial automation encompasses a wide range of equipment types.

โดยทั่วไปแล้ว, the choice depends on whether the application prioritizes precision or cost efficiency.

How to Choose Between BLDC and Servo Motors

The following selection guide can simplify motor technology decisions.

Choose a servo system when precision, positioning accuracy, and dynamic response are critical.

Choose a BLDC motor when efficiency, ความน่าเชื่อถือ, simplicity, and lower cost are primary priorities.

เหตุใดผู้ซื้อ OEM จึงเลือก Greensky Power

Greensky Power specializes in customized motion solutions for OEM manufacturers worldwide.

Core Product Portfolio

• บีแอลดีซีมอเตอร์
• มอเตอร์เกียร์
• Planetary Gear Motors
• Worm Gear Motors
• Customized Motor Solutions

OEM Engineering Capabilities

• Encoder Integration
• การจับคู่คอนโทรลเลอร์
• Planetary Gearbox Design
• Rapid Prototyping
• Custom Performance Optimization

อุตสาหกรรมหลักที่ให้บริการ

• Lawn Equipment
• ระบบปรับอากาศ
• ระบบอัตโนมัติทางอุตสาหกรรม
• วิทยาการหุ่นยนต์
• อุปกรณ์การแพทย์
• Security Systems

คำถามที่พบบ่อย

Is a servo motor a BLDC motor?

Not necessarily. A servo motor is a complete closed-loop control system. Many modern servo motors use PMSM or BLDC motor technology internally.

Which motor is better for robotics?

Servo motors are generally preferred because they provide superior positioning accuracy, dynamic response, and repeatability.

Which motor is cheaper?

BLDC motors typically have lower motor costs, controller costs, and overall system costs.

Do BLDC motors need encoders?

เลขที่. Many BLDC motors operate successfully using Hall sensors or sensorless control methods. Encoders are optional unless precise positioning is required.

Can a BLDC motor be used as a servo motor?

ใช่. When combined with an encoder and a closed-loop controller, a BLDC motor can function as part of a servo system.

Related Articles

• • มอเตอร์ BLDC กับมอเตอร์ PMSM
  • BLDC vs Induction Motor
  • มอเตอร์ BLDC ทำงานอย่างไร?
  • มอเตอร์ความเร็วตัวแปรทำงานอย่างไร?
  • มอเตอร์ BLDC สำหรับเครื่องตัดหญ้า

อ้างอิง

1. https://www.ieee.org
2. https://ieeexplore.ieee.org
3. https://www.energy.gov
4. https://www.iea.org
5. https://www.iec.ch
6. https://www.mathworks.com
7. https://www.microchip.com
8. https://www.ti.com
9. https://www.nidec.com
10. https://www.siemens.com
11. https://global.abb
12. https://www.weg.net
