Powering Robotics: High-Torque Stepper Motors for Robotics Applications
Robotics is no longer confined to sci-fi fantasies—it’s reshaping factories, hospitals, and daily life. At the heart of this revolution lie high-torque stepper motors, engineered to deliver precision, pålitlighet, and power density where traditional actuators fall short. This article explores how these motors overcome robotics’ unique challenges and highlights cutting-edge solutions for designers.
.Why High-Torque Steppers Dominate Robotics.
Robotic systems demand:
- .Precision positioning. (TILL EXEMPEL., surgical robotar requiring ±0.05mm accuracy)
- .High torque-to-inertia ratios for rapid starts/stops
- .Varaktighet in harsh environments (damm, fukt, temperature swings)
Hybridstegmotorer excel här, combining permanent magnets and toothed rotors to deliver exceptional angular resolution and torque consistency—critical for repetitive tasks like CNC milling or assembly-line welding.
.Top High-Torque Stepper Technologies for Robotics.
Based on leading manufacturers’ innovations:
.1. MOONS’ PowerPlus Series.
- .Vridmomentområde: 0.7–35 Nm (NEMA 23–34 frames)
- .Key Innovation: 25–40% higher torque vs. standarder, ideal for 3D printers and medical robots.
- .Robotics Fit: Optimized for dynamic payloads in automated guided vehicles (AGVs).
.2. Kollmorgen T-Series.
- .Vridmomentdensitet: Industry-leading, with resonance-damping algorithms.
- .Ansökningar: Collaborative robots (cobots) and precision arms needing mjuk rörelse.
.3. JVL IP67-Rated Motors.
- .Rugged Design: Withstands washdowns in food-processing robots.
- .Vridmomentområde: 0.01–50 Nm (NEMA 08–53), enabling compact joint designs in articulated arms.
.4. Pacific Scientific Microstepping Motors.
- .Upplösning: 200 steps/rev + encoder feedback for closed-loop accuracy.
- .Use Case: Surgical robots requiring 12 Nm torque and 2,500 RPM speed.
Tabell: High-Torque Stepper Motor Comparison
| .Series. | .Vridmomentområde. | .Nyckelfunktion. | .Bäst för. |
|---|---|---|---|
| MOONS’ PowerPlus | 0.7–35 Nm | 40% higher torque efficiency | AGVs, 3D skrivare |
| Kollmorgen T-Series | Custom | Anti-resonance control | Cobots, precision arms |
| JVL Compact | 0.01–50 Nm | IP67 protection | Food/medical robots |
| Pacific Scientific | Up to 12 Nm | 0.035 kg·m² inertia | Surgical/imaging robotics |
.Critical Robotics Applications
.
.1. Industriell automation.
- .Utmaning: Repetitive lifting (TILL EXEMPEL., 20kg payloads) without positional drift.
- .Lösning: NEJ 42 motorer (TILL EXEMPEL., Anaheim Automation’s 5,700 oz-in models) with dual shafts for torque splitting.
.
2. Medicinsk robotik.
- .Krav: Sub-millimeter accuracy in syringe pumps or surgical arms.
- .Motor Tech: Closed-loop hybrids with 256x microstepping (TILL EXEMPEL., Wantai 20BY) for tremor-free motion.
.
3. Mobil & Servicerobotar.
- .Need: Energy efficiency in battery-powered bots (TILL EXEMPEL., cleaning robots).
- .Innovation: Regenerative drives converting kinetic energy to battery recharge.
.4-Step Selection Guide for Robotic Designers.
- .Torque-Speed Profile.
- Calculate peak/continuous torque at operational RPM (TILL EXEMPEL., 15 Nm holding torque for robotic welders).
- .Environmental Rating.
- Prioritize IP54+ (dust/moisture) for outdoor bots or IP67 for washdown zones.
- .Control Compatibility.
- Ensure TMC2209/TMC2225 driver support for StealthChop™ noise reduction.
- .Certifieringar.
- Validate MTBF >25,000 hours and ISO 9001 manufacturing for lifecycle reliability.
Technical comparison between high-torque stepper motors and servo motors in robotics applications
.1. Core Performance Metrics Comparison.
| .Metric. | .High-Torque Stepper Motors. | .Servo Motors. | .Technical Basis. |
|---|---|---|---|
| .Torque Characteristics. | High torque at low speeds (TILL EXEMPEL., 0.22–50 N·m), but torque drops 40–60% at >500 RPM. | Consistent torque across speeds (TILL EXEMPEL., 0–3,000 RPM at 12 N·m), .300% överbelastningskapacitet. | Steppers rely on magnetic reluctance; servos use Field-Oriented Control (FOC) |
| .Positioning Accuracy. | Öppen slinga: ±0.9° (1.8° stegvinkel); **closed-loop: ±0.05°** | **±0.01°** (with 17-bit encoders) | Servos correct errors via real-time feedback; steppers rely on pulse counting |
| .Dynamic Response. | 200–400 ms acceleration (0→100 RPM) | ..<5 ms acceleration. (0→3,000 RPM) | Servo closed-loop enables millisecond adjustments |
| .Power Efficiency. | 40–60% (efficient at låga hastigheter; copper losses dominate at high speeds) | .80–90%. (powered only during motion/holding) | Steppers draw constant current; servos adjust power dynamically |
| .Vridmomentdensitet. | 20–30 N·m/kg (standard); .upp till 48 N·m/kg. (TILL EXEMPEL., Benyuan P1010) | 15–25 N·m/kg (up to 35 N·m/kg with rare-earth magnets) | Servos use high-strength magnets; steppers optimize windings |
2. Application-Specific Suitability.
.Industrirobotar (TILL EXEMPEL., Joint Actuation)..
- .Stepper Advantages:
Cost-effective for low-speed precision. (TILL EXEMPEL., screw driving in assembly lines). Exempel: Wantai 20BY achieves ±0.05 mm repeatability at 40% lägre kostnad than equivalent servos. - .Servo Advantages:
.High-speed operation. (>1 m/s) ochinstantaneous load response. Exempel: Kollmorgen T-series adjusts to load changes in 0.1smed 36 N·m overload torque.
.Medical/Surgical Robots.
- .Stepper Limitations:
Low-speed vibration risks affecting delicate tasks (TILL EXEMPEL., microsurgery), requiring additional dampers. - .Servo Superiority:
.Zero-vibration control with 17-bit encoders enables 0.001 mm precision. (TILL EXEMPEL., da Vinci surgical arms).
.Mobile Robots (TILL EXEMPEL., AGVs, Quadrupeds)..
- .Stepper Innovations:
Benyuan’s P1010 module (120 N·m peak torque) powers quadruped robots for continuous jumping with 30% lower energy use than servos. - .Servo Necessity:
.Instant torque compensation for terrain adaptation (TILL EXEMPEL., 20° incline climbing) prevents step loss.
3. Kosta & Lifetime Economics.
| .Kostnadsfaktor. | .High-Torque Stegmotorer. | .Servo Motors. |
|---|---|---|
| .Initial kostnad. | 80–150 (400W system) | 350–500 (400W system) |
| .Energikostnad. | Hög (constant current draw) | .30–50% lower. (adaptive power) |
| .Maintenance Cost. | Låg (simple mechanics) | Högre (encoder failure >15% över 5 år) |
| .Avgångsperiod. | ..<1 år. (low-speed projects) | 2–3 years (high-utilization) |
✅ Selection Rule: Steppers for low-speed, budget-sensitive projects; servos for high-speed, 24/7 industriella system..
4. Hybrid Technologies & Selection Framework.
.Hybrid Solutions.
- .Closed-Loop Steppers:
Integrated encoders (TILL EXEMPEL., Trinamic) boost accuracy to ±0.05° at 15% lower cost than servos. - .Integrated Servos:
Drive-motor combos (TILL EXEMPEL., B&R ACOPOSmotor) reduce size by 40%...

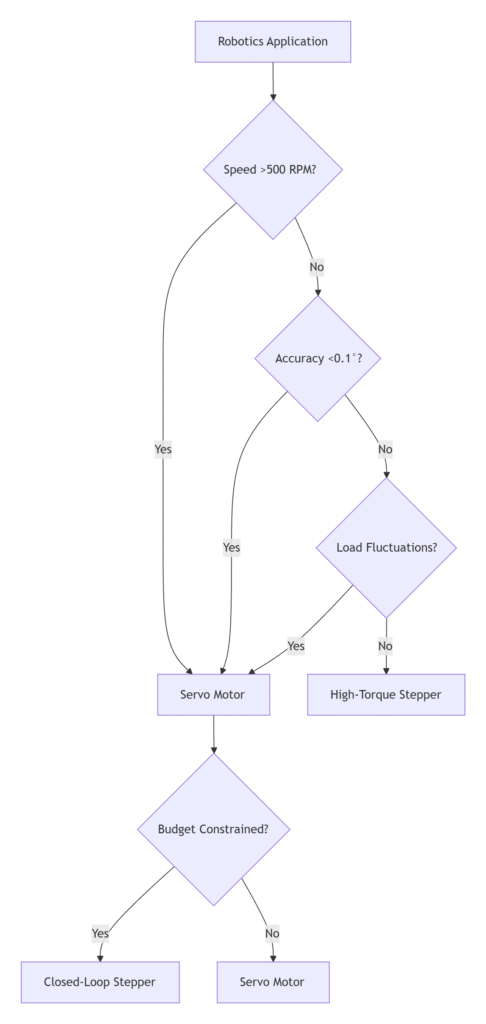

.Decision Workflow.
High-torque steppers excel in low-speed, static-load, cost-driven robotics (TILL EXEMPEL., 3D printer axes, lightweight AGVs), while servos dominate high-speed, dynamic-load applications (TILL EXEMPEL., surgical robots, industrial arms). Future convergence of closed-loop steppers and compact servos will blur performance boundaries—selection hinges on dynamic operational needsochtotal lifecycle cost..
.Framtida trender: Next-Gen Robotics Actuation.
- .Integrated Encoders: 17-bit absolute encoders enabling real-time error correction (<1µs latency).
- .AI-Driven Control: Machine learning adjusts torque output preemptively, slashing energy waste by 30%.
- .Piezoelectric Steppers: Frictionless ceramic actuators for micro-surgical robots.
.Slutsats: Torque as the Engine of Robotic Innovation.
From assembly lines beating production targets to robots saving lives in operating rooms, high-torque steppers are the uncelebrated heroes. As Kollmorgen’s engineers assert: “In robotics, torque precision isn’t optional—it’s the language of motion itself.”
.Explore Our Robotics-Optimized Series:
- .NEJ 17/23 High-Torque Hybrids: 40% more torque, IP65-rated for harsh environments.
- .Closed-Loop Servo-Steppers: 17-bit encoders + zero-cogging algorithms.
Request 3D models or torque-speed curves for your next design.
